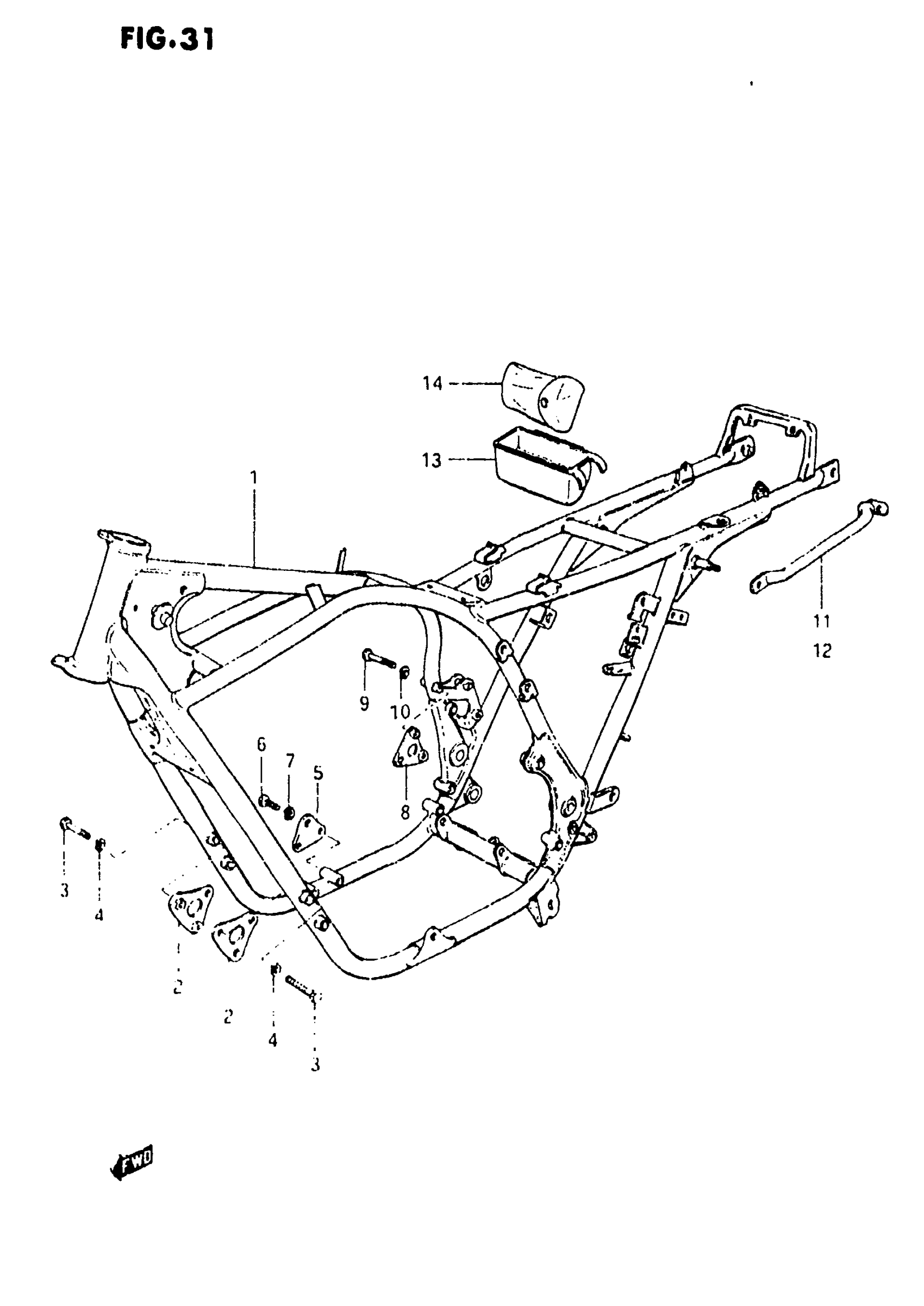

Suzuki GS650E (1982) FRAME Diagram

#

Description
Price

1

FRAME (BLACK)

41100-34500-019

Unavailable

2

PLATE, NO.1 (BLACK)

41910-47000-019

Unavailable

3

BOLT This part replaces 01107-08608.

01500-0860B

$3.49

4

NUT This part replaces 08312-21088.

08310-00087

$2.13

5

PLATE, NO.2 (BLACK)

41993-47000-019

Unavailable

6

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

PLATE, NO.3 (BLACK) | MODEL X This part replaces 41990-47000-019.

41990-47001-019

Unavailable

8

PLATE, NO.3 (BLACK) | MODEL Z

41990-47001-019

Unavailable

9

BOLT This part replaces 01107-08558.

01500-08557

$3.16

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

GRIP, FRAME HANDLE RH | MODEL X

41611-34500

Unavailable

11

GRIP, FRAME HANDLE RH | MODEL Z

41611-34510

Unavailable

12

GRIP, FRAME HANDLE LH | MODEL X

41621-34500

Unavailable

12

GRIP, FRAME HANDLE LH | MODEL Z

41621-34510

Unavailable

13

HOLDER, TOOL

41551-47000

Unavailable

14

TOOL SET This part replaces 09800-00230.

09800-06801

Unavailable
