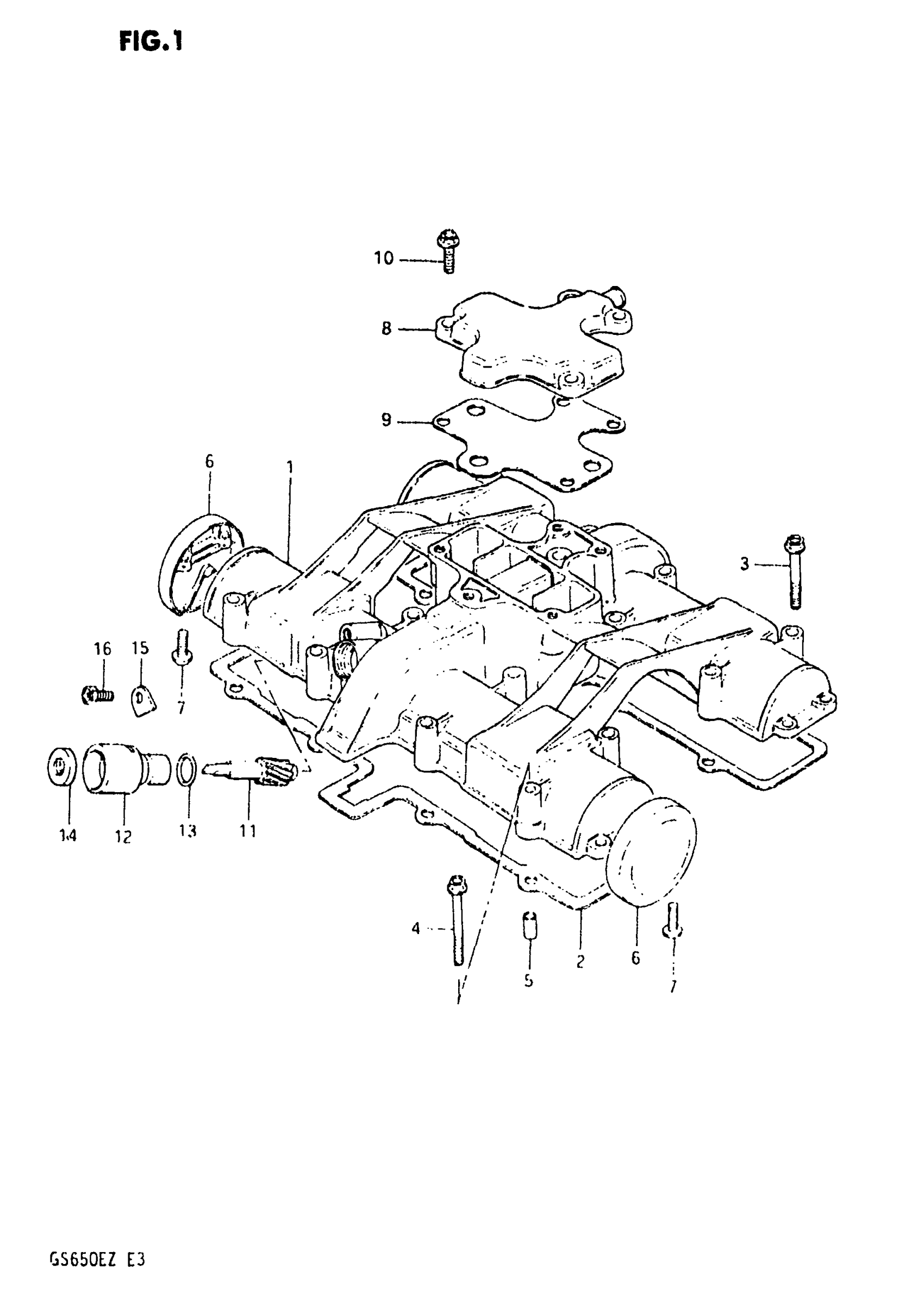

Suzuki GS650E (1982) CYLINDER HEAD COVER (-E.NO.106932) Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-34200

Unavailable

2

GASKET,CYL HD C This part replaces 11173-34200.

11173-34202

Unavailable

3

BOLT This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

5

PIN

09206-08001

$1.78

6

CAP, SIDE

11174-34201

Unavailable

7

SCREW This part replaces 02112-05168.

02112-05167

$1.97

8

COVER, BREATHER | MODEL X This part replaces 11176-47010.

11176-47042

Unavailable

8

COVER, BREATHER | MODEL Z This part replaces 11176-47011.

11176-47042

Unavailable

9

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$14.97

10

BOLT This part replaces 01517-06208.

01550-06207

$2.30

11

GEAR TACHO DRVN This part replaces 26431-47002.

26431-47003

Unavailable

12

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

13

SEAL BAND

26451-45000

$5.05

14

OIL SEAL

09289-05002

$8.43

15

PLATE, GEAR SLEEVE

26449-33000

$4.35

16

SCREW

09128-05101

$1.49
