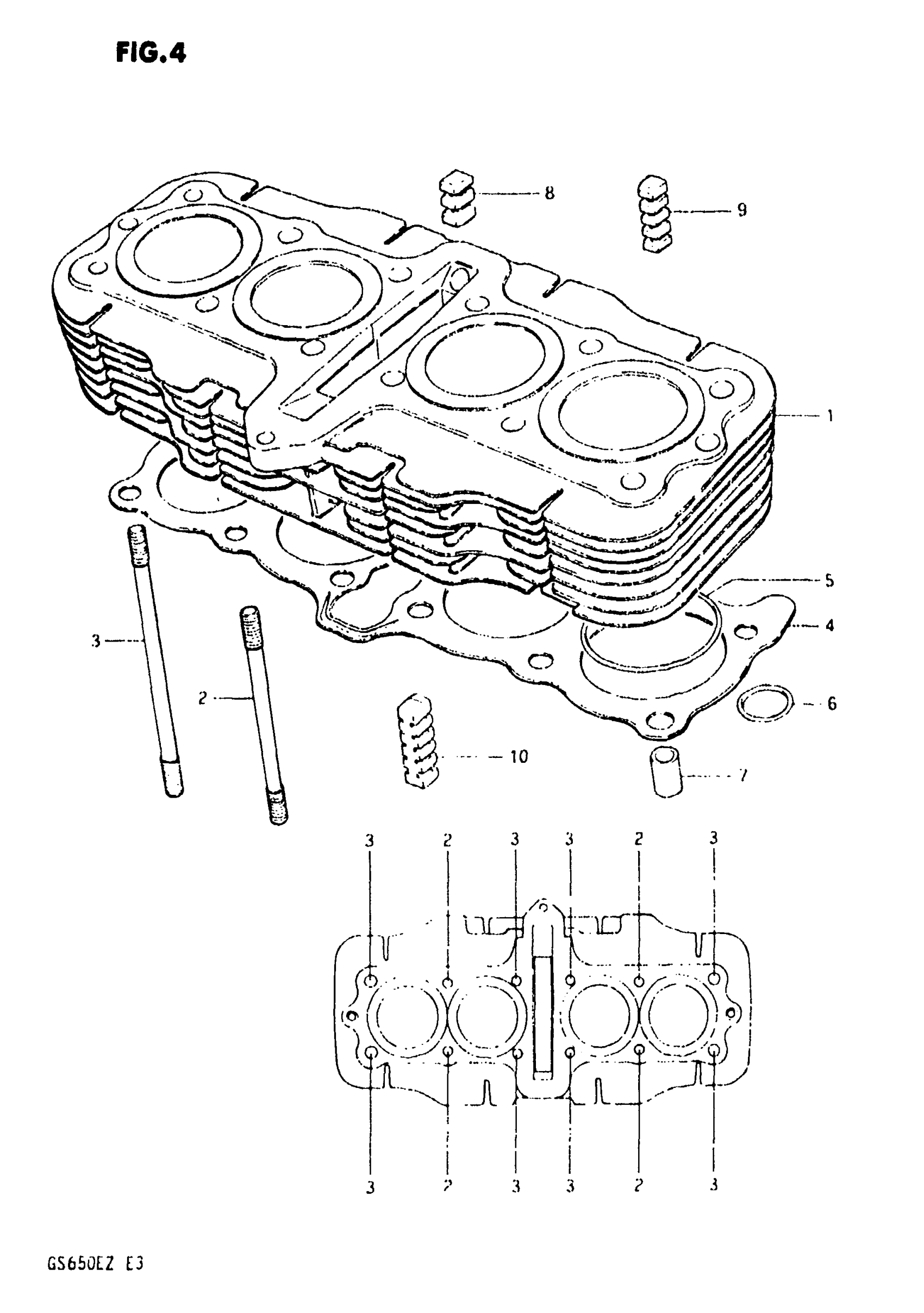

Suzuki GS650E (1982) CYLINDER Diagram

#

Description

Price

1

CYLINDER

11210-34202

Unavailable

2

STUD BOLT

09108-08061

Unavailable

3

STUD BOLT

09108-08062

$6.97

4

GASKET,CYLINDER This part replaces 11241-34201.

11241-34220

Unavailable

5

O RING

09280-61001

Unavailable

6

O RING

09280-21005

Unavailable

7

PIN This part replaces 09206-13001.

04211-13189

$2.19

8

RUBBER PAD (N9->4) This part replaces 11251-34200.

11251-36500

$6.52

9

RUBBER PAD (N9->4) This part replaces 11252-34200.

11251-36500

$6.52

10

RUBBER PAD (N9->4) This part replaces 11253-34200.

11251-36500

$6.52
