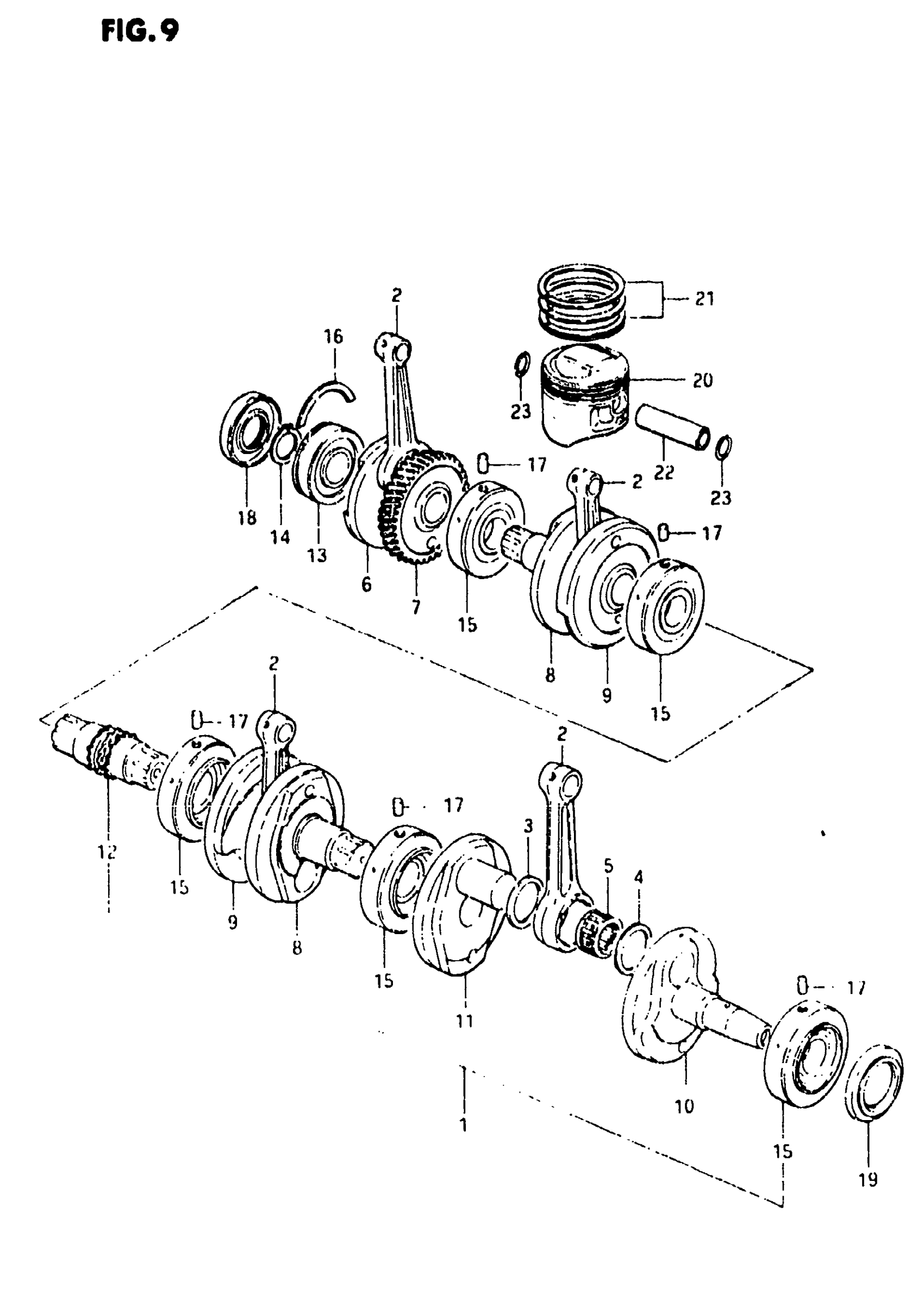

Suzuki GS650E (1982) CRANKSHAFT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 15 This part replaces 12200-34500.

12200-34503

Unavailable

2

ROD, CONNECTING

12161-47001

Unavailable

3

WASHER

09160-28009

Unavailable

4

WASHER

09160-28010

Unavailable

5

BEARING

09263-28006

Unavailable

6

CRANKSHAFT, RH

12220-47001

Unavailable

7

WEB, CRANKSHAFT RH (NT:44)

12230-34500

Unavailable

8

CRANKSHAFT, MIDDLE

12241-34500

Unavailable

9

WEB, CRANKSHAFT MIDDLE

12250-34500

Unavailable

10

CRANKSHAFT, LH

12261-34500

Unavailable

11

WEB, CRANKSHAFT LH

12290-34500

Unavailable

12

SHAFT, CHAIN DRIVE (NT:15)

12281-34500

Unavailable

13

BEARING, RH

09262-30033

Unavailable

14

CIRCLIP This part replaces 08331-11308.

08331-31309

$2.57

15

BEARING This part replaces 09264-32005.

09264-32009

$201.55

16

C RING, BEARING RH

09390-72004

Unavailable

17

PIN

04221-07129

$1.86

18

OIL SEAL, RH

09283-30021

$19.20

19

OIL SEAL, STARTER CLUTCH GEAR This part replaces 09289-48001.

09289-48002

$10.77

20

PISTON (STD) This part replaces 12111-34202.

12111-34210

Unavailable

20

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-34202-050.

12103-34830-050

Unavailable

20

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-34202-100.

12103-34830-100

Unavailable

21

PISTON RING SET (STD) This part replaces 12140-34211.

12140-34240

$58.38

21

PISTON RING SET (OS:0.5) | OPT This part replaces 12140-34211-050.

12140-34240-050

Unavailable

21

PISTON RING SET (OS:1.0) | OPT This part replaces 12140-34211-100.

12140-34240-100

Unavailable

22

PIN, PISTON

12151-67001

$16.43

23

SNAP RING This part replaces 09381-16002.

09381-16001

$1.67
