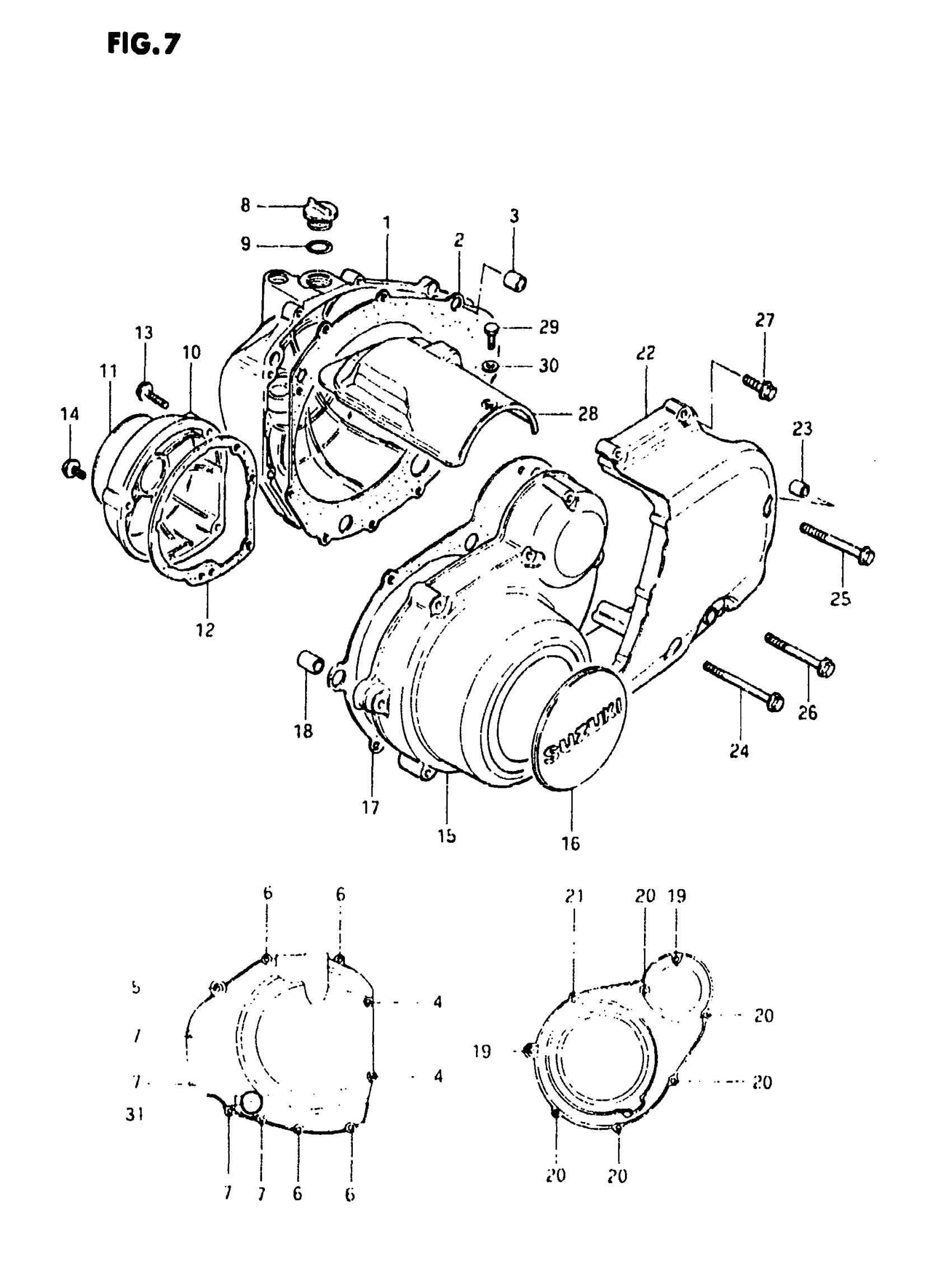

Suzuki GS650E (1982) CRANKCASE COVER (E.NO.103837-) Diagram

#

Description
Price

1

COVER, CLUTCH | INC.REF NO.31

11340-34501

Unavailable

2

GASKET,CL COVER This part replaces 11482-47000.

11482-47000-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

BOLT This part replaces 01547-06658.

01547-06657

$2.75

5

BOLT This part replaces 01547-06458.

01547-06457

$2.32

6

BOLT This part replaces 01547-06258.

01547-06257

$2.03

7

BOLT This part replaces 01547-06208.

01547-06207

$2.01

8

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

9

O RING

09280-32005

$1.99

10

COVER, CONTACT BREAKER

11381-47002

Unavailable

11

EMBLEM

68235-34500

Unavailable

12

GASKET

11491-47000

$3.85

13

BOLT This part replaces 01544-05308.

01547-05307

$2.30

14

BOLT This part replaces 01544-05168.

01547-05167

$1.72

15

COVER, GENERATOR

11351-47001

Unavailable

16

EMBLEM

68233-34200

Unavailable

17

GASKET,MAGCOVER This part replaces 11483-47000.

11483-47000-H17

Unavailable

18

PIN This part replaces 09206-13001.

04211-13189

$2.19

19

BOLT This part replaces 01547-06458.

01547-06457

$2.32

20

BOLT This part replaces 01547-06408.

01547-06407

$2.32

21

BOLT This part replaces 01547-06358.

01547-06357

$2.03

22

COVER, ENGINE SPROCKET

11360-34501

Unavailable

23

PIN

04211-09129

$1.65

24

BOLT This part replaces 01547-06958.

01547-06957

$3.43

25

BOLT This part replaces 01547-06858.

01547-06857

$3.30

26

BOLT This part replaces 01547-06808.

01547-0680B

$3.18

27

BOLT This part replaces 01547-06308.

01547-06307

$2.03

28

COVER, STARTER MOTOR

11382-47001

Unavailable

29

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

30

WASHER This part replaces 08322-21058.

08322-01057

$2.13

31

.LENS, OIL LEVEL CHECK

11971-45010

$16.76
