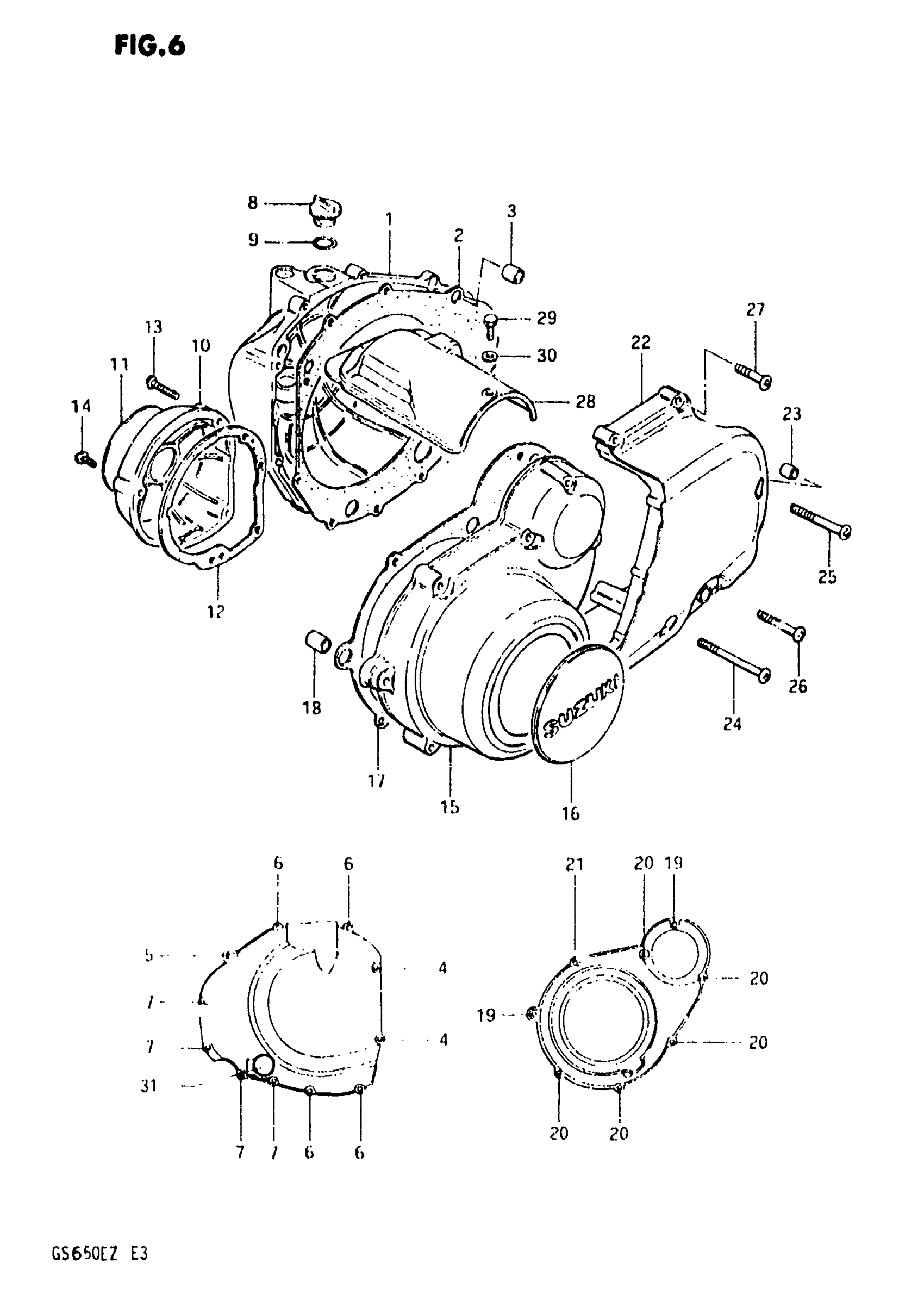

Suzuki GS650E (1982) CRANKCASE COVER (-E.NO.103836) Diagram

#

Description
Price

1

COVER, CLUTCH | INC. REF. NO. 31 This part replaces 11340-34500.

11340-34501

Unavailable

2

GASKET,CL COVER This part replaces 11482-47000.

11482-47000-H17

Unavailable

3

PIN This part replaces 09206-13001.

04211-13189

$2.19

4

SCREW This part replaces 02112-06658.

02112-06657

$2.62

5

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

6

SCREW This part replaces 02112-06258.

02112-06257

$1.78

7

SCREW This part replaces 02112-06208.

02112-06207

$1.78

8

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

9

O RING

09280-32005

$1.99

10

COVER, CONTACT BREAKER This part replaces 11381-47001.

11381-47002

Unavailable

11

EMBLEM

68235-34500

Unavailable

12

GASKET

11491-47000

$3.85

13

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

14

SCREW This part replaces 02112-05168.

02112-05167

$1.97

15

COVER, GENERATOR This part replaces 11351-47000.

11351-47001

Unavailable

16

EMBLEM

68233-34200

Unavailable

17

GASKET,MAGCOVER This part replaces 11483-47000.

11483-47000-H17

Unavailable

18

PIN This part replaces 09206-13001.

04211-13189

$2.19

19

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

20

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

21

SCREW This part replaces 02112-06358.

02112-06357

$1.78

22

COVER, ENGINE SPROCKET This part replaces 11361-34500.

11360-34501

Unavailable

23

PIN

04211-09129

$1.65

24

SCREW This part replaces 02112-06958.

02112-0695B

$3.72

25

SCREW This part replaces 02112-06858.

02112-06857

$2.62

26

SCREW This part replaces 02112-06808.

02112-06807

$2.57

27

SCREW This part replaces 02112-06308.

02112-06307

$1.97

28

COVER, STARTER MOTOR

11382-47001

Unavailable

29

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

30

WASHER This part replaces 08322-21058.

08322-01057

$2.13

31

.LENS, OIL LEVEL CHECK

11971-45010

$16.76
