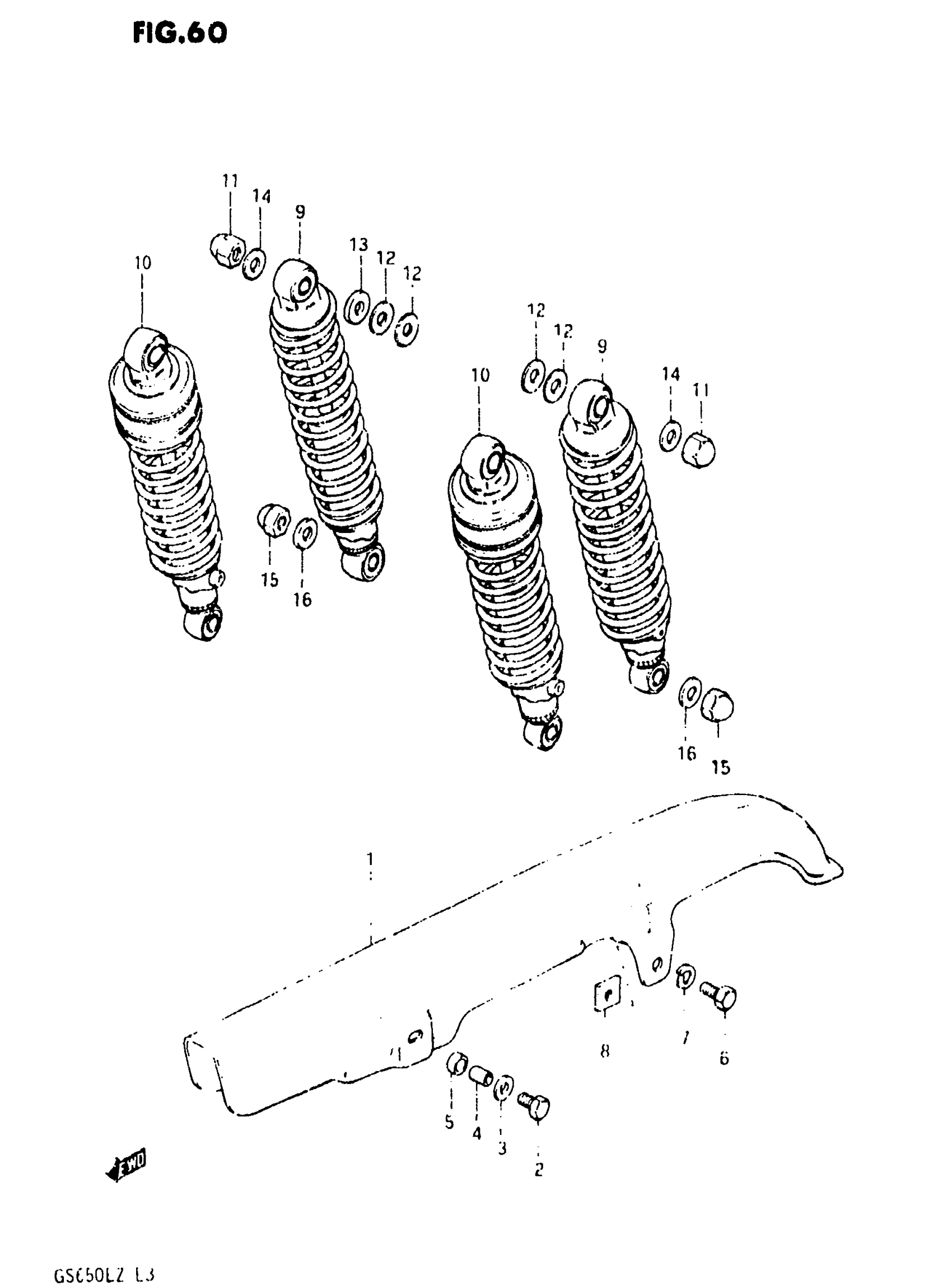

Suzuki GS650E (1982) CHAIN CASE - SHOCK ABSORBER Diagram

#

Description
Price

1

CASE, CHAIN This part replaces 61311-44102-291.

61311-44102

Unavailable

2

BOLT This part replaces 01107-06108.

01500-06107

$2.06

3

WASHER

09160-06056

$1.72

4

SPACER

09180-06052

Unavailable

5

FUEL TANK UPPER WASHER This part replaces 09320-08005.

09161-08006

$2.07

6

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

NUT, REAR

61316-43000

Unavailable

9

SHOCK ABSORBER, REAR | MODEL X

62100-34520

Unavailable

10

SHOCK ABSORBER, REAR | MODEL Z

62100-34530

Unavailable

11

NUT, UPPER

09145-10001

Unavailable

12

WASHER This part replaces 08322-11128.

08322-01127

$1.84

13

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

$3.29

14

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

15

NUT This part replaces 08313-11108.

08313-10107

$2.50

16

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35
