1982 Suzuki GS650E Cam Shaft - Valve Diagram

← All diagrams

Find the part on the Cam Shaft - Valve diagram for your 1982 Suzuki GS650E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

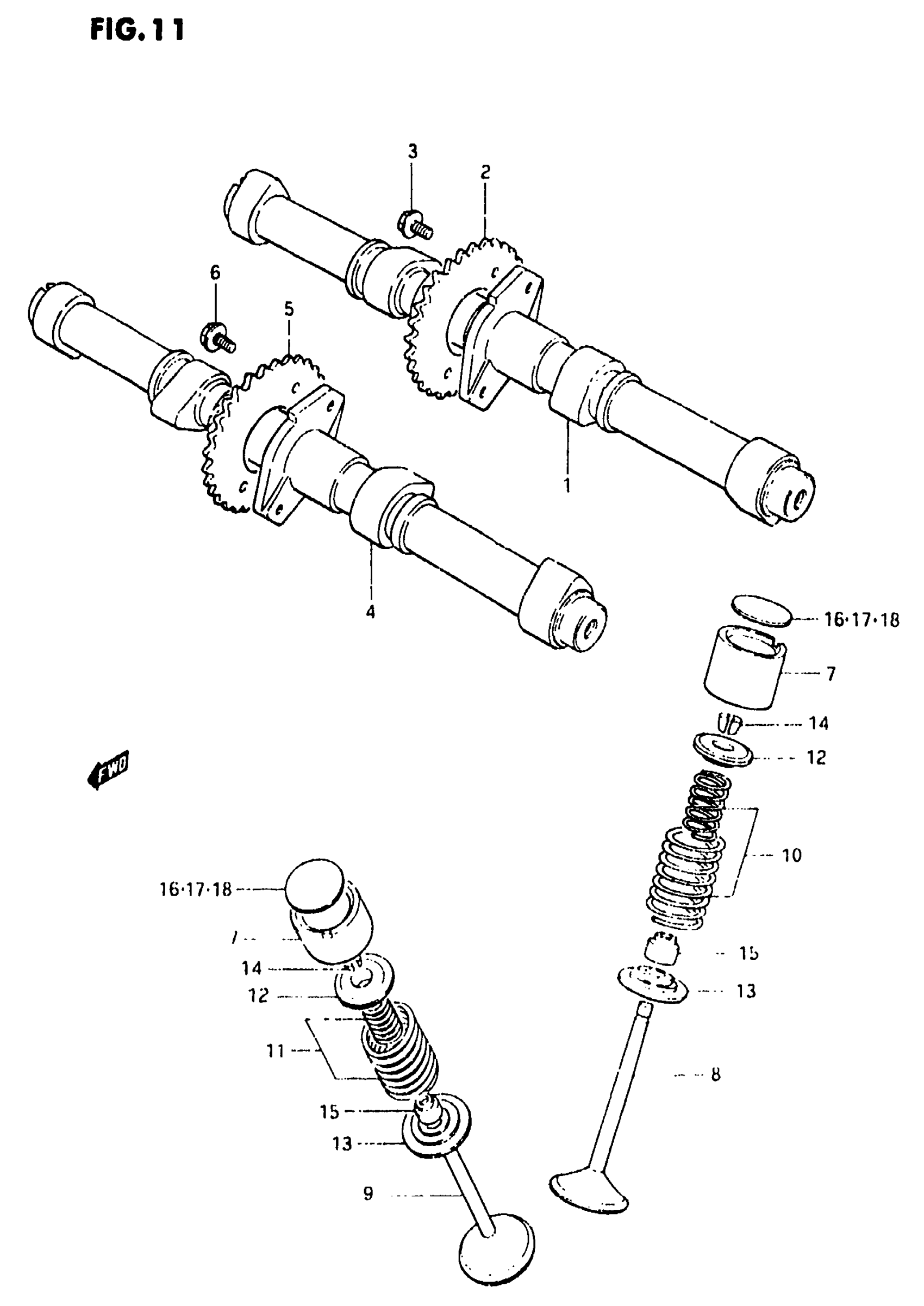

1982 Suzuki GS650E Cam Shaft - Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM SHAFT, INTAKE

12711-34202

1
Out of stock

2

SPROCKET, IN. CAM SHAFT

12741-45002

1
Out of stock

3

BOLT

09103-07001

2
Out of stock

4

CAM SHAFT, EXHAUST

12721-34202

1
Out of stock

5

SPROCKET, EX. CAM SHAFT

12751-47002

1
Out of stock

6

BOLT

09103-07001

2
Out of stock

7

TAPPET This part replaces 12891-45000.

12891-45001

8
Out of stock

8

VALVE, INTAKE This part replaces 12911-34200.

12911-34210

4
Out of stock

9

VALVE, EXHAUST This part replaces 12912-34201.

12912-34203

4
Out of stock

10

SPRING SET, VALVE This part replaces 12900-34810.

12920-44110

8
Out of stock

11

SPRING SET, VALVE | ~E.NO.102384 This part replaces 12900-34810.

12920-44110

4
Out of stock

11

SPRING SET, EX. VALVE | E. NO.102385~ This part replaces 12900-34820.

12920-34210

4
Out of stock

12

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

8
Out of stock

13

SEAT, SPRING

12933-45001

8
Out of stock

14

COTTER, VALVE

12932-45010

16
Out of stock

15

OIL SEAL

09289-07002

8
Out of stock

16

SHIM, TAPPET (T:2.15) This part replaces 12892-45000.

12892-45000-215

1
Out of stock

16

SHIM, TAPPET (T:2.20) This part replaces 12892-45001.

12892-45000-220

1
Out of stock

16

SHIM, TAPPET (T:2.25) This part replaces 12892-45002.

12892-45000-225

1
Out of stock

16

SHIM, TAPPET (T:2.30) This part replaces 12892-45003.

12892-45000-230

1
Out of stock

16

SHIM, TAPPET (T:2.35) This part replaces 12892-45004.

12892-45000-235

1
Out of stock

16

SHIM, TAPPET (T:2.40) This part replaces 12892-45005.

12892-45000-240

1
Out of stock

16

SHIM, TAPPET (T:2.45) This part replaces 12892-45006.

12892-45000-245

1
Out of stock

16

SHIM, TAPPET (T:2.50) This part replaces 12892-45007.

12892-45000-250

1
Out of stock

16

SHIM, TAPPET (T:2.55) This part replaces 12892-45008.

12892-45000-255

1
Out of stock

17

SHIM, TAPPET (T:2.60) This part replaces 12892-45009.

12892-45000-260

1
Out of stock

17

SHIM, TAPPET (T:2.65) This part replaces 12892-45010.

12892-45000-265

1
Out of stock

17

SHIM, TAPPET (T:2.70) This part replaces 12892-45011.

12892-45000-270

1
Out of stock

17

SHIM, TAPPET (T:2.75) This part replaces 12892-45012.

12892-45000-275

1
Out of stock

17

SHIM, TAPPET (T:2.80) This part replaces 12892-45013.

12892-45000-280

1
Out of stock

17

SHIM, TAPPET (T:2.85) This part replaces 12892-45014.

12892-45000-285

1
Out of stock

17

SHIM, TAPPET (T:2.90) This part replaces 12892-45015.

12892-45000-290

1
Out of stock

17

SHIM, TAPPET (T:2.95) This part replaces 12892-45016.

12892-45000-295

1
Out of stock

17

SHIM, TAPPET (T:3.00) This part replaces 12892-45017.

12892-45000-300

1
Out of stock

18

SHIM, TAPPET (T:3.05) This part replaces 12892-45018.

12892-45000-305

1
Out of stock

18

SHIM, TAPPET (T:3.10) This part replaces 12892-45019.

12892-45000-310

1
Out of stock

19

SHIM SET | NOT SHOWNNOT SHOWNNOT SHOWN; Includes Item(s) 20 This part replaces 12800-45810.

12800-45811

1
Out of stock

20

CASE, TAPPET SHIM | NOT SHOWN This part replaces 99000-69480.

99000-69521

1
Out of stock
