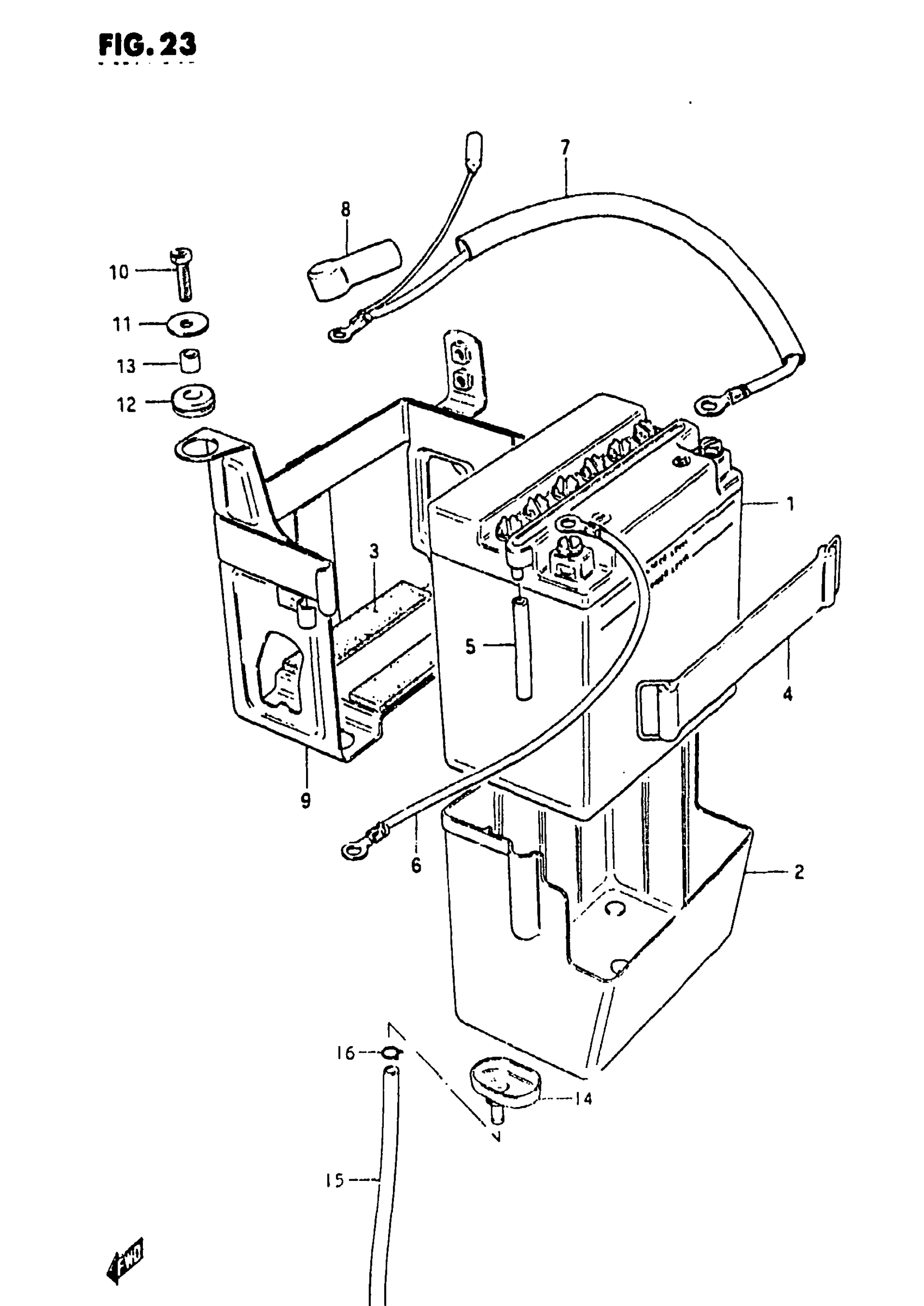

Suzuki GS650E (1982) BATTERY Diagram

#

Description
Price

1

BATTERY (12V, 10AH)

33610-44010

Unavailable

2

CASE, BATTERY

33661-47000

Unavailable

3

CUSHION, REAR FENDER REAR This part replaces 33652-29100.

33651-37000

$4.48

4

BAND

09462-00043

$4.11

5

HOSE,BATTERY EX This part replaces 33681-47000.

33680-16A11

$6.78

6

LEAD WIRE, (-)

33850-34500

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 33820-47002.

33820-47003

Unavailable

8

CAP, TERMINAL

33624-45000

$4.58

9

HOLDER, BATTERY

41540-47010

Unavailable

10

BOLT This part replaces 09128-06006.

09128-06057

$1.65

11

WASHER (6.5X20X1.6) This part replaces 09160-06020.

09160-06066

$1.89

12

CUSHION (8.5X20X8) This part replaces 09320-08007.

09320-08510

$1.97

13

SPACER

09180-06038

$1.98

14

FUNNEL, EXHAUST

33662-47000

Unavailable

15

HOSE,BATTERY EX This part replaces 33680-47001.

33680-16A11

$6.78

16

CLIP

09401-08301

$1.65
