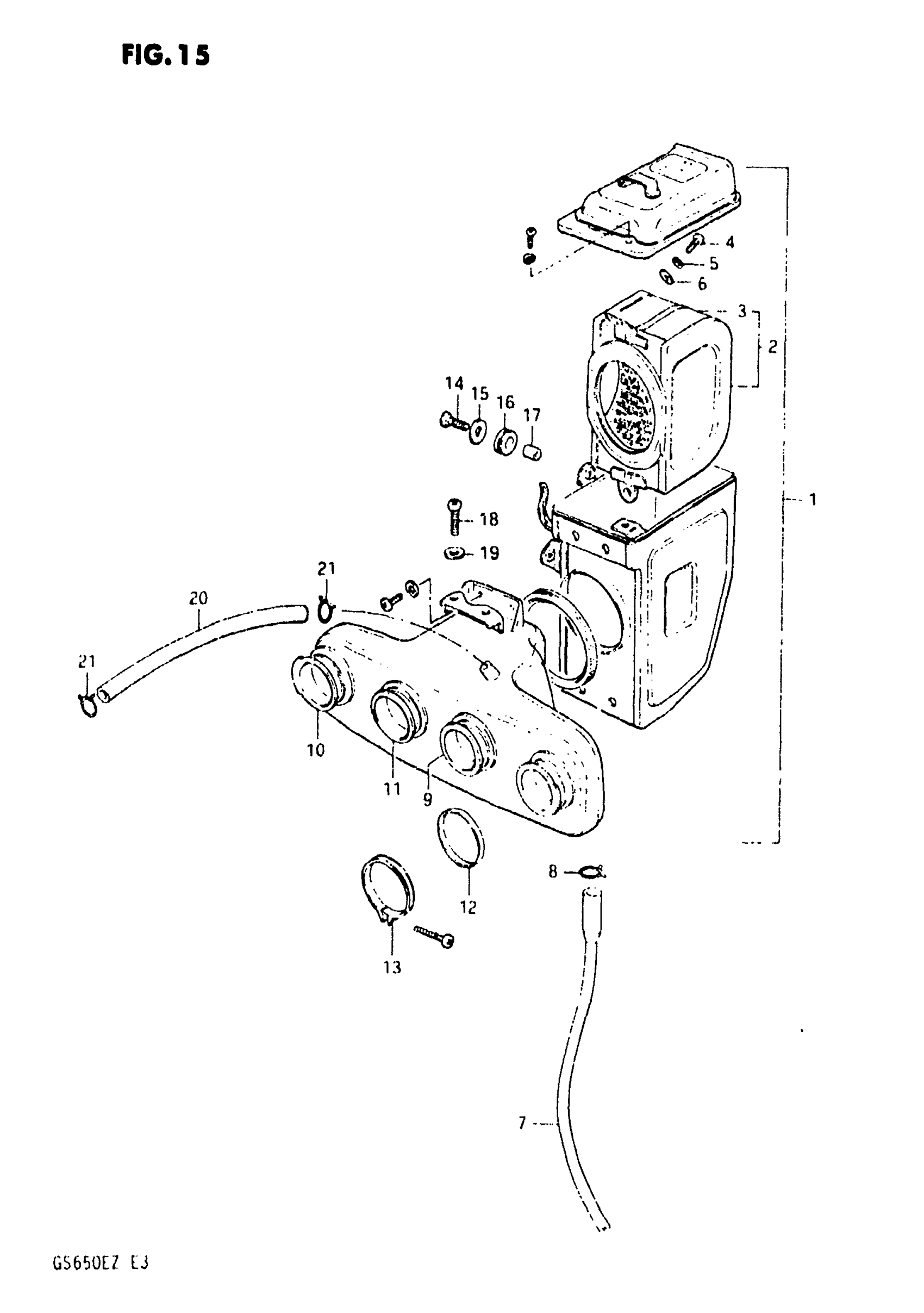

Suzuki GS650E (1982) AIR CLEANER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 13 This part replaces 13700-34500.

13700-34501

Unavailable

2

FILTER ASSY

13780-47040

Unavailable

3

ELEMENT

13781-47030

Unavailable

4

SCREW This part replaces 02112-05108.

02112-05107

$1.49

5

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

6

WASHER This part replaces 08322-21058.

08322-01057

$2.13

7

TUBE,DRAIN This part replaces 13870-00020.

13870-11459

$15.51

8

CLIP

09401-14301

$2.35

9

TUBE, OUTLET CL

13881-34500

Unavailable

10

TUBE, OUTLET SIDE

13882-34500

Unavailable

11

TUBE, OUTLET CR

13883-34500

Unavailable

12

RING | CL, SIDE

13885-47030

$8.30

13

..CLAMP This part replaces 09402-60306.

09402-60208

$5.11

14

BOLT This part replaces 01107-06208.

01500-06207

$2.28

15

WASHER This part replaces 09160-06007.

09160-06084

$1.78

16

CUSHION (8X18X10) This part replaces 09320-08001.

09320-08527

$2.06

17

SPACER (6.5X9X9) This part replaces 09180-06011.

09180-06263

$2.03

18

SCREW This part replaces 02112-06128.

02112-06127

$1.84

19

WASHER This part replaces 08322-21068.

08322-01067

$2.13

20

HOSE,11X15X2000 This part replaces 09343-11001.

09352-11154-00B

$48.35

21

CLIP

09401-14301

$2.35
