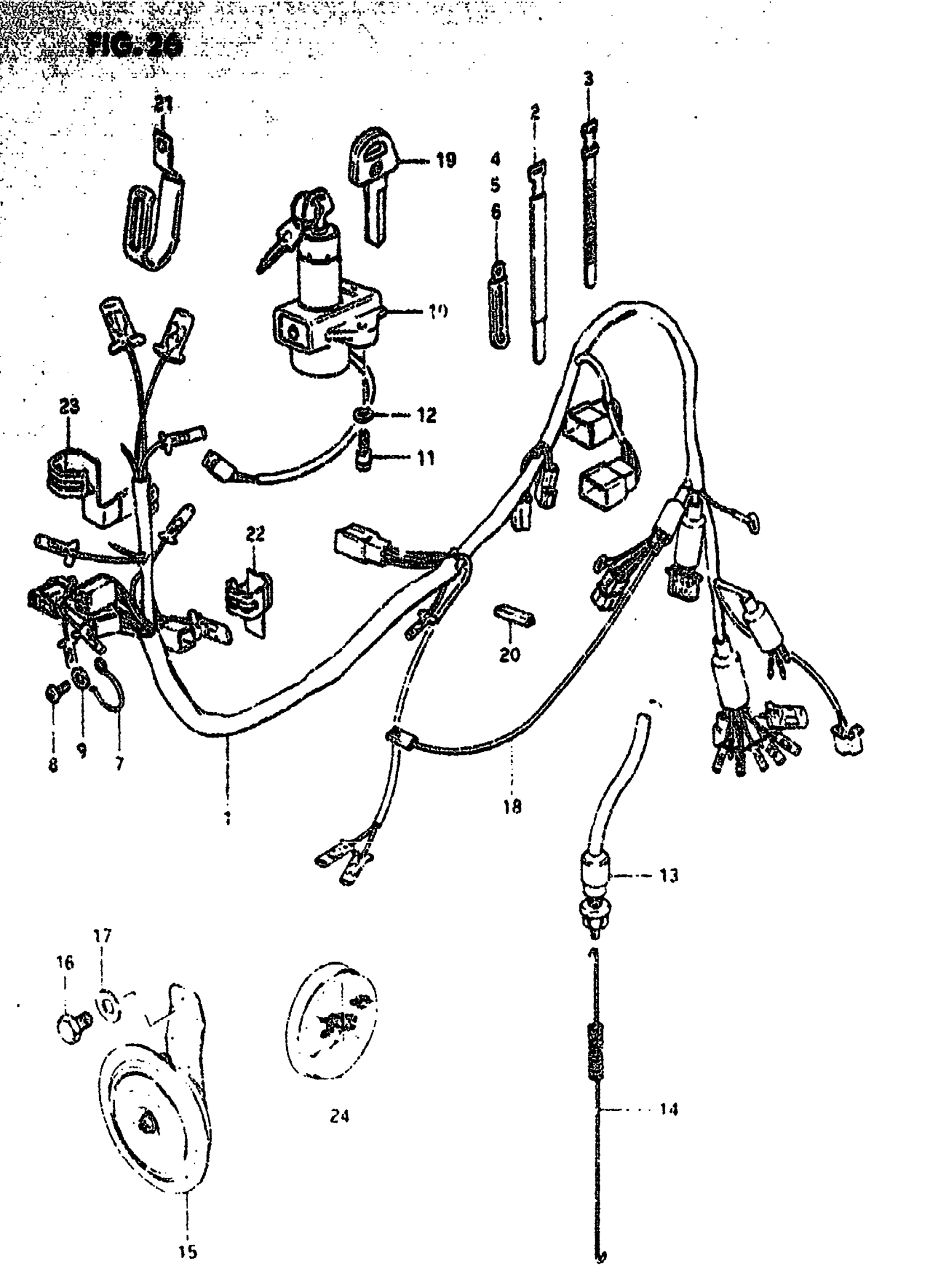

Suzuki GS550T (1981) WIRING HARNESS Diagram

#

Description
Price

1

WIRING HARNESS

36610-47400

Unavailable

2

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

3

CLAMP

09407-12402

$3.04

4

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

$1.74

5

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

6

CLAMP This part replaces 09404-06412.

09404-06039

$1.74

7

CLIP, WIRING HARNESS This part replaces 36619-44000.

36619-44002

Unavailable

8

SCREW This part replaces 02112-06128.

02112-06127

$1.84

9

WASHER This part replaces 08322-21068.

08322-01067

$2.13

10

SWITCH ASSY, IGNITION | Includes Item(s) 11 - 12 This part replaces 37100-47011.

37100-45301

Unavailable

11

BOLT This part replaces 37152-47010.

07130-0616B

$2.39

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

SWITCH, REAR BRAKE LAMP This part replaces 37740-04571.

37740-48071

$19.18

14

SPRING This part replaces 09443-06018.

09443-06018-XC0

Unavailable

15

HORN This part replaces 38500-34210.

38500-34221

Unavailable

16

BOLT This part replaces 01107-08128.

01500-08127

$2.62

17

WASHER This part replaces 08322-11088.

08322-01087

$2.13

18

LEAD WIRE, PRESSURE SWITCH This part replaces 36853-45000.

36853-45001

Unavailable

19

KEY, BLANK | OPT

37146-47010

$18.39

20

PROTECTOR

36611-38000

Unavailable

21

CLAMP

36651-34400

Unavailable

22

CLAMP, LH

36651-34410

Unavailable

23

CLAMP, RH

36651-34420

Unavailable

24

REFLEX REFLECTOR, FRONT

35950-49080

$17.24
