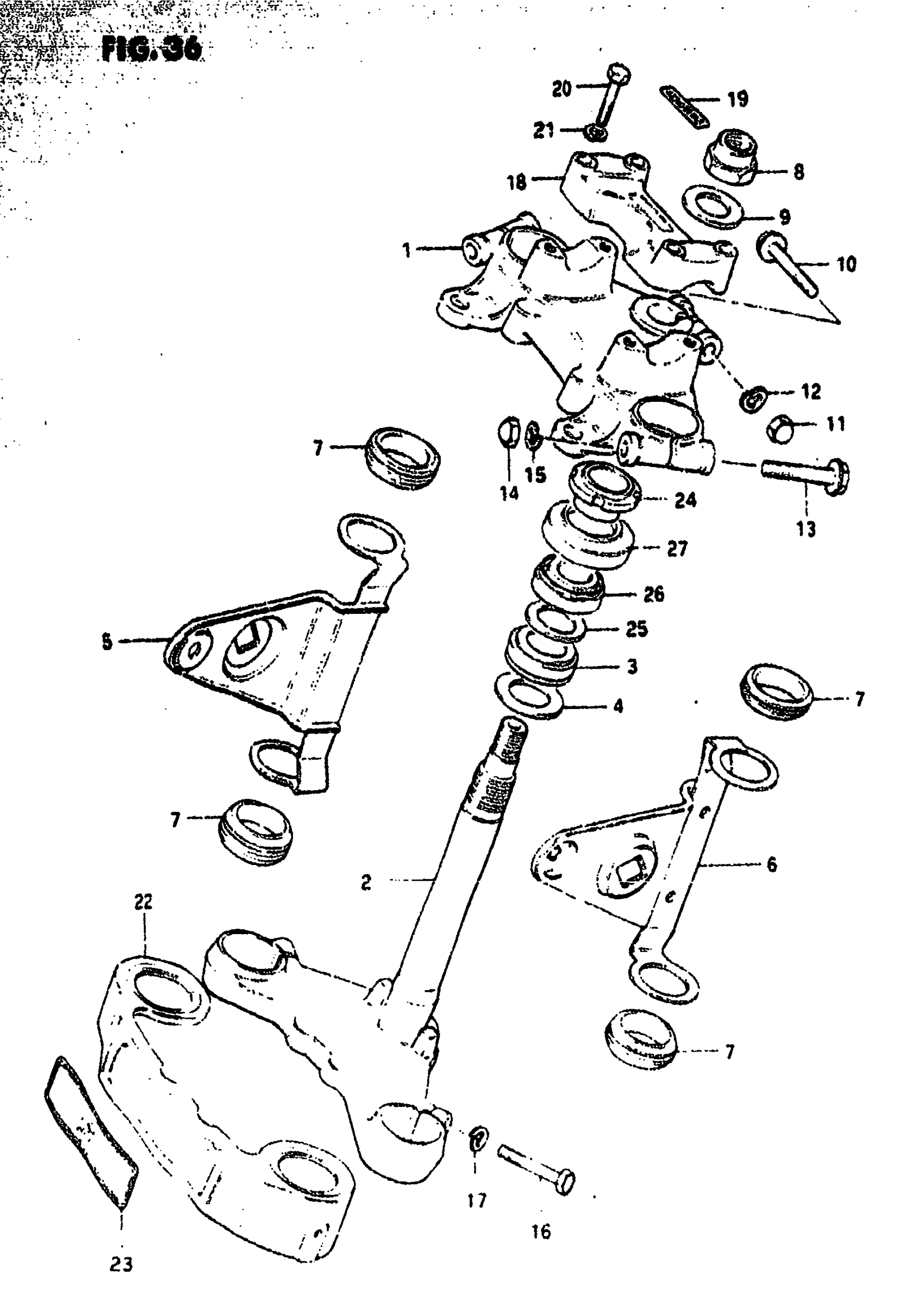

Suzuki GS550T (1981) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING | BLACK

51311-34200-291

Unavailable

2

NO DESCRIPTION AVAILABLE | Includes Item(s) 3 - 4 This part replaces 51400-34830.

51400-34852

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

BRACKET, HEADLAMP RH | BLACK

51530-47400

Unavailable

6

BRACKET, HEADLAMP LH | BLACK

51540-47400

Unavailable

7

CUSHION This part replaces 51553-47000.

51553-34280

$5.50

8

NUT

51353-45000

$9.69

9

WASHER

51356-31700

Unavailable

10

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

11

NUT This part replaces 08313-11085.

08313-1008B

$2.80

12

LOCK WASHER This part replaces 08321-21085.

08321-0108A

$1.84

13

BOLT | MODEL X This part replaces 01517-10558.

01550-10557

$3.91

14

NUT | MODEL X

09145-10002

Unavailable

15

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

16

BOLT This part replaces 01107-10408.

01500-10407

$3.55

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

CLAMP, HANDLEBAR UPPER | BLACK

56211-45400-291

Unavailable

19

EMBLEM

56212-45400

Unavailable

20

BOLT

01204-08357

$2.09

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

COVER, FRONT FORK This part replaces 51871-34500.

51871-34501

Unavailable

23

EMBLEM

68211-34500

Unavailable

24

NUT, STEERING STEM

51631-34200

Unavailable

25

WASHER

09160-18002

$2.38

26

BEARING

09265-25008

Unavailable

27

SEAL,DUST This part replaces 51643-40500.

51643-40503

$6.15
