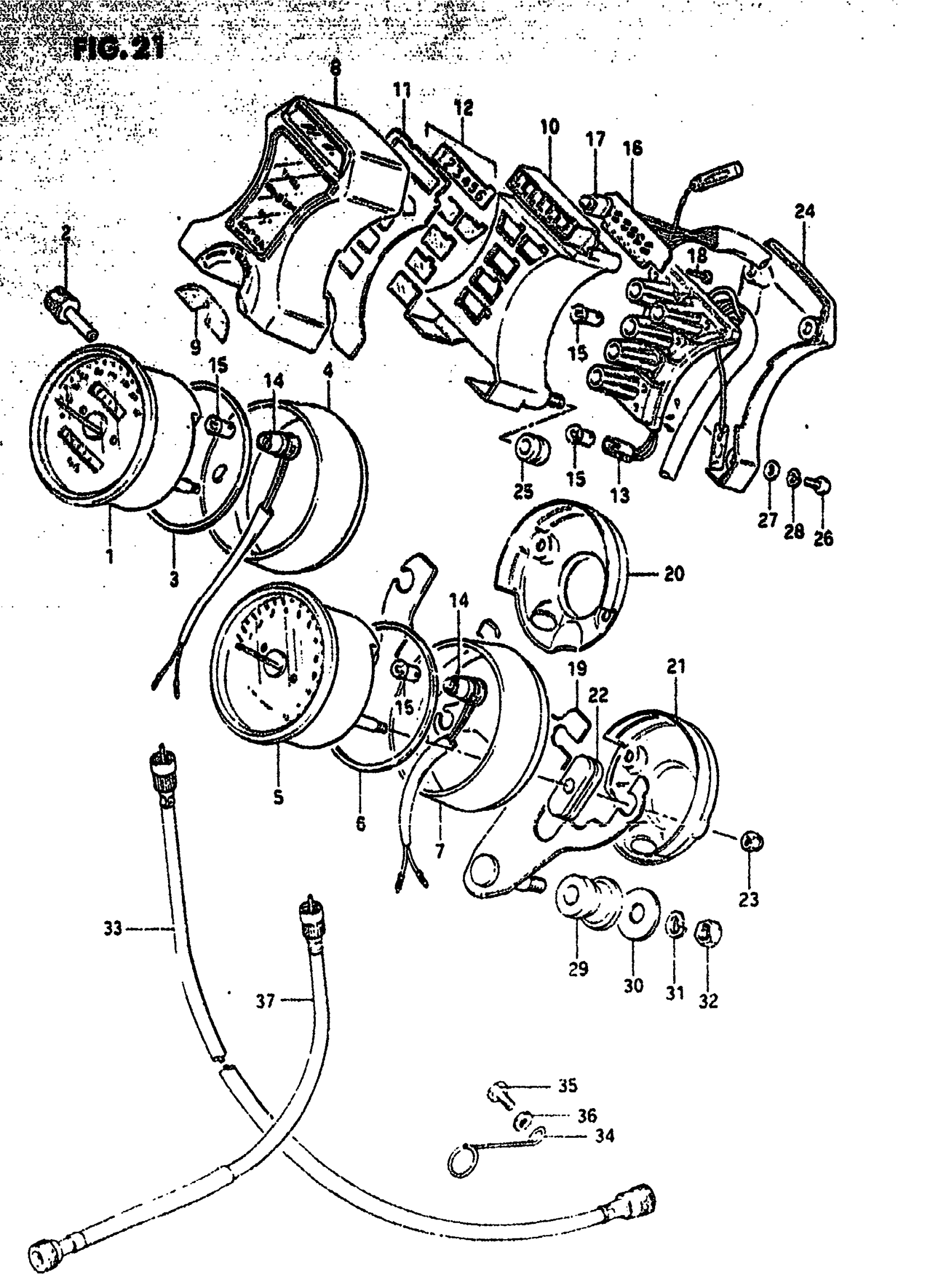

Suzuki GS550T (1981) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER | MILE & KILO SCALE; Includes Item(s) 2

34110-34510

Unavailable

2

KNOB This part replaces 34124-28010.

34124-34500

Unavailable

3

CUSHION

34189-34510

Unavailable

4

COVER, SPEEDOMETER

34151-34510

Unavailable

5

NO DESCRIPTION AVAILABLE This part replaces 34210-47310.

34210-34300

Unavailable

6

CUSHION

34189-34510

Unavailable

7

COVER, TACHOMETER

34251-34510

Unavailable

8

PILOT BOX

36380-34510

Unavailable

9

SEAL

36391-34510

Unavailable

10

CASE, PILOT BOX INNER

36381-34510

Unavailable

11

PANEL, PILOT LENS

36384-34510

Unavailable

12

LENS SET

36300-47810

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 36325-34510.

36325-47400

Unavailable

14

NO DESCRIPTION AVAILABLE This part replaces 34173-34510.

34173-47400

Unavailable

15

BULB (12V, 3.4W)

09471-12001

$1.65

16

NO DESCRIPTION AVAILABLE This part replaces 36453-47300.

36453-47400

Unavailable

17

BULB

09471-12071

$7.20

18

NO DESCRIPTION AVAILABLE This part replaces 36456-34510.

09132-03501

Unavailable

19

BRACKET

34950-34510

Unavailable

20

ORNAMENT, SPEEDOMETER

34193-34510

Unavailable

21

ORNAMENT, TACHOMETER

34293-34510

Unavailable

22

NO DESCRIPTION AVAILABLE This part replaces 34191-34510.

34191-34511

Unavailable

23

NUT This part replaces 08313-11057.

08313-1005A

$1.93

24

COVER, PILOT BOX

36383-34510

Unavailable

25

CUSHION

36384-34510

Unavailable

26

SCREW This part replaces 02112-04128.

02112-0412A

$1.49

27

WASHER This part replaces 08322-21048.

08322-01047

$1.86

28

LOCK WASHER This part replaces 08321-21048.

08321-0104A

$1.84

29

CUSHION

34956-31001

$4.37

30

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

31

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

32

NUT This part replaces 08310-12088.

08310-00087

$2.13

33

CABLE SPEEDOMET This part replaces 34910-47310.

34910-44401

$26.05

34

CLAMP

34938-45100

$6.57

35

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

36

WASHER This part replaces 08322-21088.

08322-01087

$2.13

37

CABLE ASSY,TACH This part replaces 34940-47031.

34940-47034

$23.49
