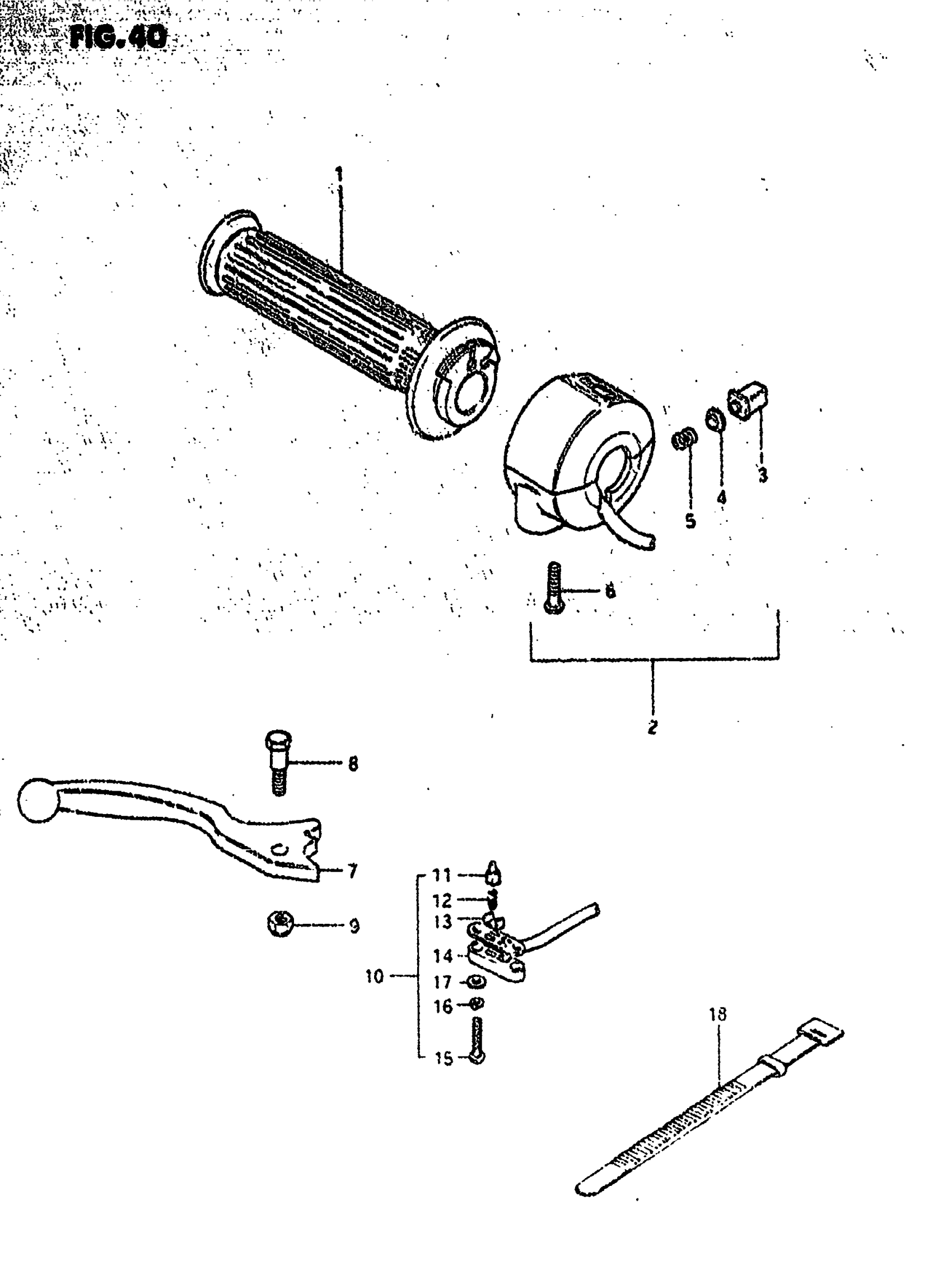

Suzuki GS550T (1981) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-44011.

57110-49510

Unavailable

2

GRIP ASSY, THROTTLE | Includes Item(s) 3 - 6 This part replaces 57100-44130.

57100-47500

Unavailable

3

BUTTON, STARTING

57371-45000

$4.52

4

CONTACT

57372-45000

$4.45

5

SPRING

57382-45000

$3.37

6

SCREW This part replaces 02112-05258.

02112-05257

$1.49

7

LEVER, BRAKE

57420-49101

$34.15

8

BOLT

57431-18621

$8.28

9

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

10

SWITCH ASSY, ST | Includes Item(s) 11 - 16 This part replaces 57460-49100.

57460-45500

$35.23

11

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

12

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

13

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

14

COVER

57481-33010

$5.84

15

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

16

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

17

WASHER This part replaces 08322-21038.

08322-01037

$1.93

18

BAND (L:120)

09407-12402

$3.04
