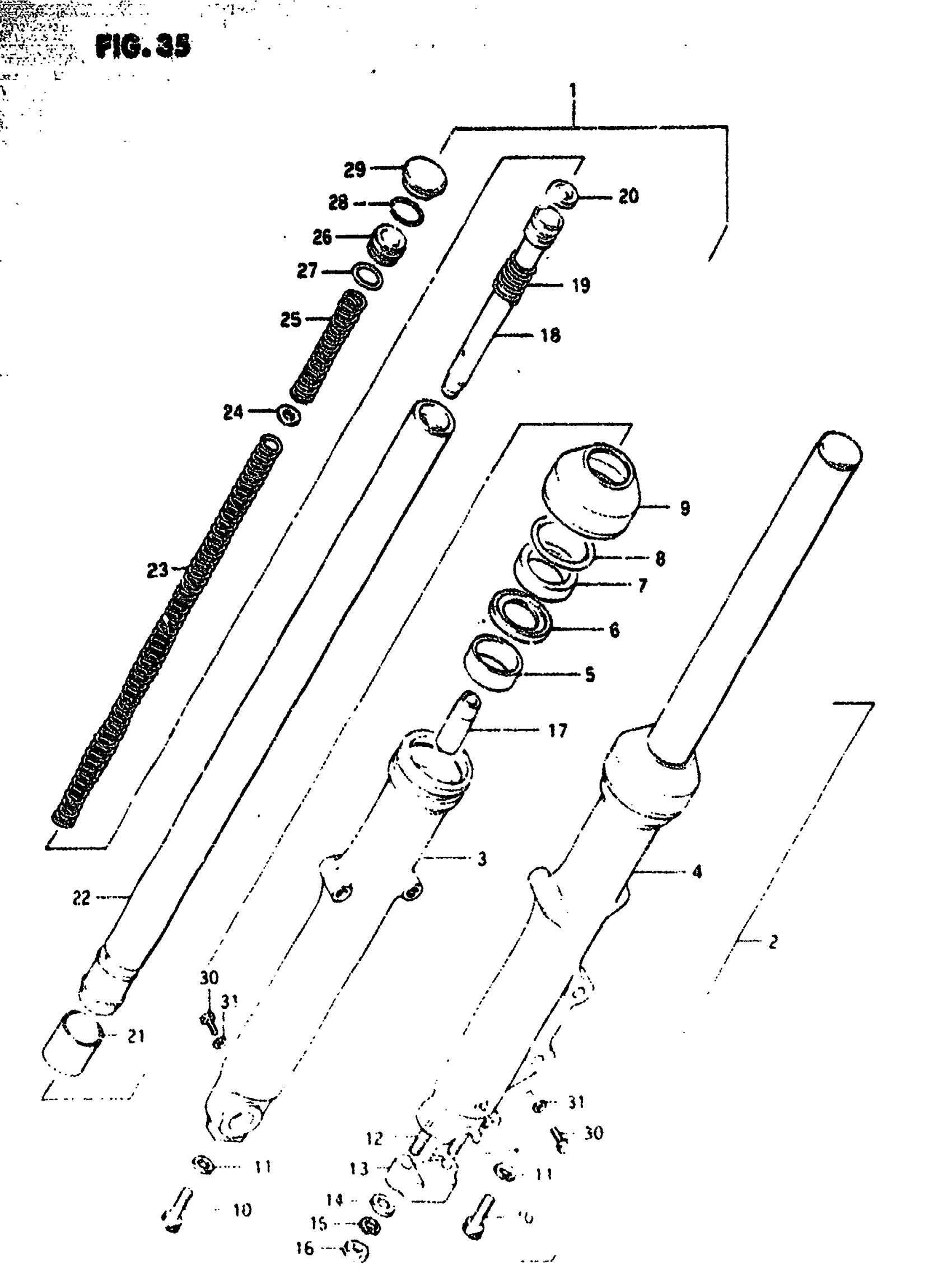

Suzuki GS550T (1981) FRONT FORK Diagram

#

Description
Price

1

DUMPER ASSY, RH

51103-47400

Unavailable

2

DUMPER ASSY, LH | Includes Item(s) 3 - 31

51104-47400

Unavailable

3

OUTER TUBE, RH

51130-47400

Unavailable

4

OUTER TUBE, RH

51140-47400

Unavailable

5

GUIDE BUSH

51152-45400

$15.10

6

SPACER, SEAL This part replaces 51168-45031.

51168-30B00

$6.31

7

SEAL, OIL This part replaces 51153-34200.

51153-19D10

$22.96

8

RING, STOPPER This part replaces 51156-31231.

51156-01A00

$4.34

9

DUST SEAL This part replaces 51571-34200.

51571-20520

Unavailable

10

BOLT

51147-48130

$4.34

11

O RING This part replaces 51148-31030.

51148-36011

$3.56

12

BOLT,STUD This part replaces 01421-08258.

01421-0825A

$2.03

13

HOLDER, AXLE

51132-31030

Unavailable

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

NUT

09140-08008

$1.49

17

PIECE, OIL LOCK

51195-45030

Unavailable

18

PIPE, SEAT

51146-47400

Unavailable

19

SPRING, REBOUND

51177-45030

Unavailable

20

RING, PISTON

51196-31230

Unavailable

21

SLIDE BUSH

51121-45400

Unavailable

22

INNER TUBE

51110-47400

Unavailable

23

SPRING B

51184-47400

Unavailable

24

SEAT, SPRING

51192-47200

Unavailable

25

SPRING A

51171-47030

Unavailable

26

SEAT, SPRING B

51175-47400

Unavailable

27

O RING This part replaces 51117-31030.

51181-31030

$4.37

28

RING, STOPPER

51169-47400

$2.90

29

CAP

51189-31230

$9.37

30

BOLT, PLATE (6X8) This part replaces 01107-06088.

09100-06157

$2.72

31

GASKET

51183-31030

$3.77
