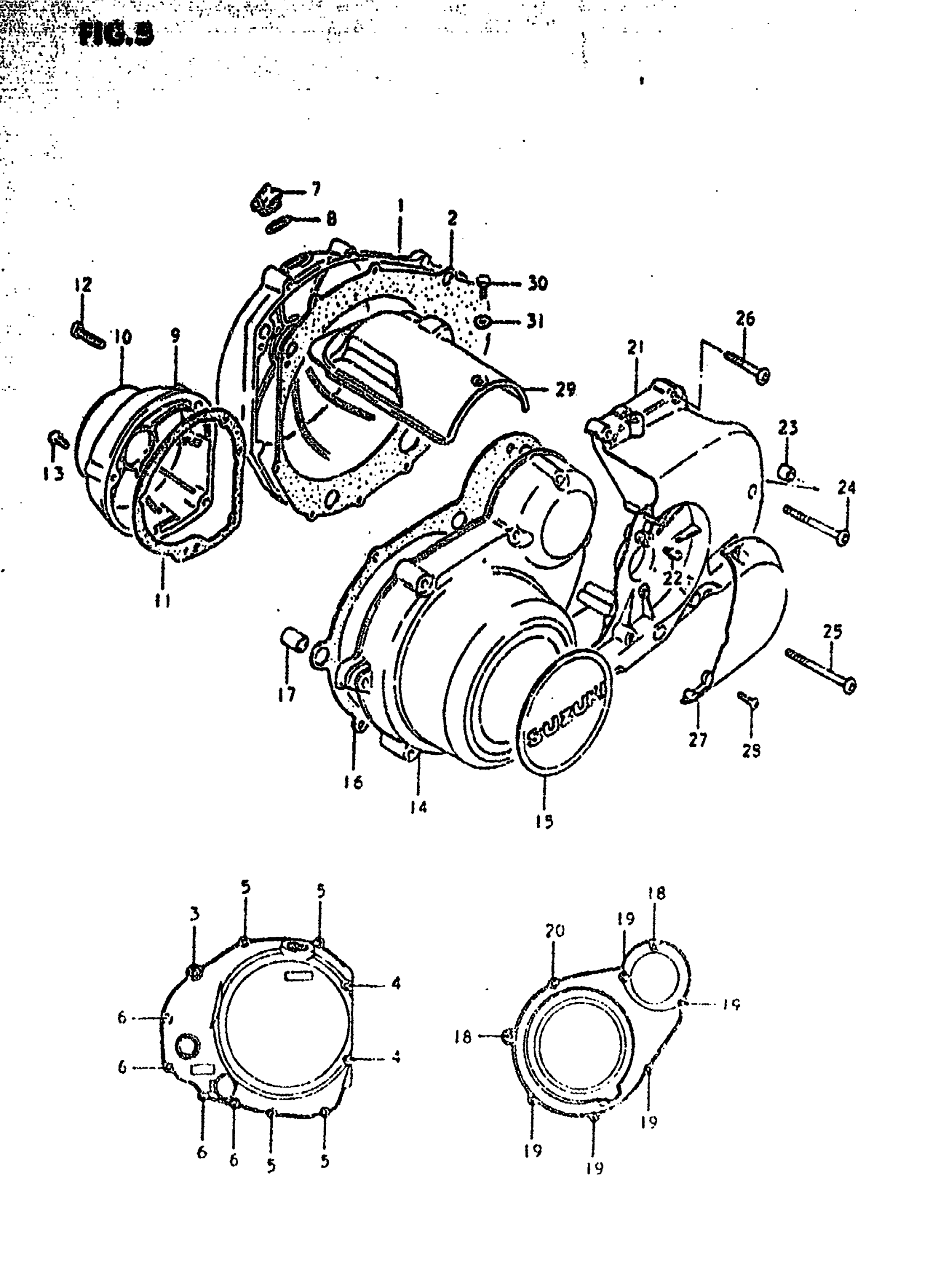

Suzuki GS550T (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11340-47010.

11340-47011

Unavailable

2

GASKET,CL COVER This part replaces 11482-47000.

11482-47000-H17

Unavailable

3

SCREW This part replaces 02112-06358.

02112-06357

$1.78

4

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

5

SCREW This part replaces 02112-06258.

02112-06257

$1.78

6

SCREW This part replaces 02112-06208.

02112-06207

$1.78

7

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

8

O RING

09280-32005

$1.99

9

COVER, CONTACT BREAKER This part replaces 11381-47001.

11381-47002

Unavailable

10

EMBLEM

68235-34500

Unavailable

11

GASKET

11491-47000

$3.85

12

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

13

SCREW This part replaces 02112-05168.

02112-05167

$1.97

14

COVER, GENERATOR This part replaces 11351-47000.

11351-47001

Unavailable

15

EMBLEM

68233-34200

Unavailable

16

GASKET,MAGCOVER This part replaces 11483-47000.

11483-47000-H17

Unavailable

17

PIN This part replaces 09206-13001.

04211-13189

$2.19

18

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

19

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

20

SCREW This part replaces 02112-06358.

02112-06357

$1.78

21

COVER SET, ENGINE SPROCKET | Includes Item(s) 22 This part replaces 11300-47821.

11300-47822

Unavailable

22

GREASE NIPPLE

08351-11009

$7.51

23

PIN

04211-09129

$1.65

24

SCREW This part replaces 02112-06908.

02112-06907

$3.16

25

SCREW This part replaces 02112-06808.

02112-06807

$2.57

26

SCREW This part replaces 02112-06308.

02112-06307

$1.97

27

CAP, CLUTCH RELEASE This part replaces 11387-47000.

11387-47001

Unavailable

28

SCREW This part replaces 02112-05168.

02112-05167

$1.97

29

COVER, STARTER MOTOR

11382-47001

Unavailable

30

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

31

WASHER This part replaces 08322-21058.

08322-01057

$2.13
