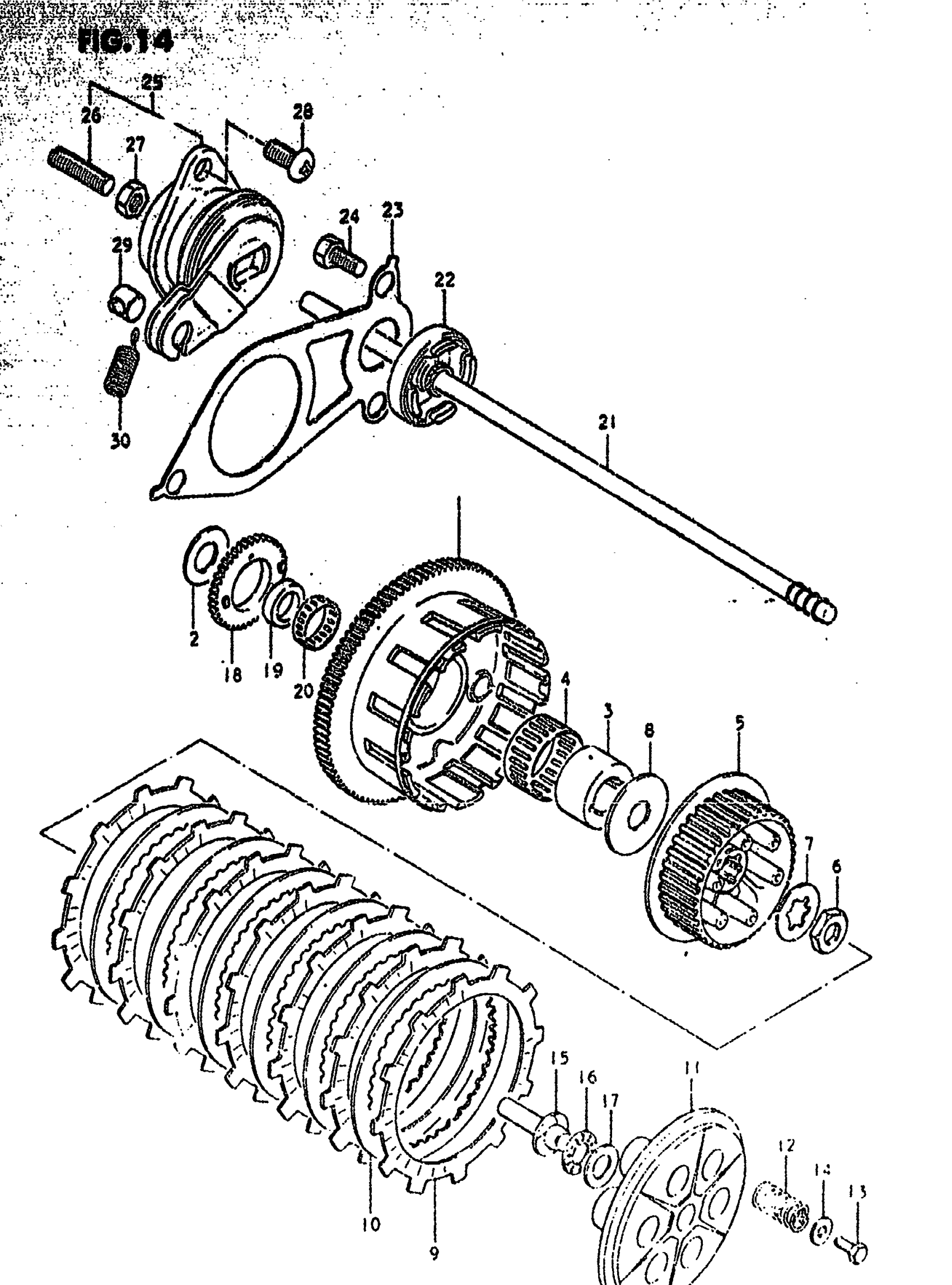

Suzuki GS550T (1981) CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVEN (NT:87)

21200-47010

Unavailable

2

WASHER This part replaces 09160-25023.

09160-25055

$8.62

3

SPACER This part replaces 21251-45001.

21251-49200

Unavailable

4

BEARING This part replaces 09263-51001.

09263-51002

$44.23

5

HUB, SLEEVE

21411-47000

Unavailable

6

NUT, PIVOT RH This part replaces 09140-24004.

09140-24007

$3.89

7

WASHER

09167-25007

Unavailable

8

WASHER

09160-25022

Unavailable

9

PLATE, DRIVE This part replaces 21441-46000.

21441-46010

$43.02

10

PLATE,CLUTCH DRIVEN (T:1.6) This part replaces 21451-45000.

21451-28C31

$11.81

11

PLATE, PRESSURE This part replaces 21462-16500.

21462-14301

$59.33

12

SPRING

09440-19004

$2.50

13

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

14

WASHER

09160-08020

Unavailable

15

PIECE, PUSH

23121-44100

$25.75

16

BEARING

09263-15003

$8.29

17

WASHER, CLUTCH PUSH This part replaces 09160-15015.

09160-15045

$3.89

18

GEAR, OIL PUMP DRIVE (NT:38)

16321-45002

Unavailable

19

SPACER

16325-45001

Unavailable

20

BEARING

09263-36002

Unavailable

21

ROD, PUSH

23100-44101

Unavailable

22

SEAL, CLUTCH PUSH ROD This part replaces 09283-06001.

09285-06011

$8.24

23

HOLDER, OIL SEAL This part replaces 23117-47000.

23117-44000

Unavailable

24

BOLT This part replaces 01107-06128.

01500-06127

$1.97

25

SCREW ASSY, RELEASE | Includes Item(s) 26 - 27 This part replaces 23200-30001.

23200-30002

Unavailable

26

SCREW This part replaces 09134-06001.

09134-06010

$3.12

27

.NUT This part replaces 08310-22068.

08310-00067

$2.13

28

SCREW This part replaces 02112-06128.

02112-06127

$1.84

29

SPRING

23222-07000

$4.52
