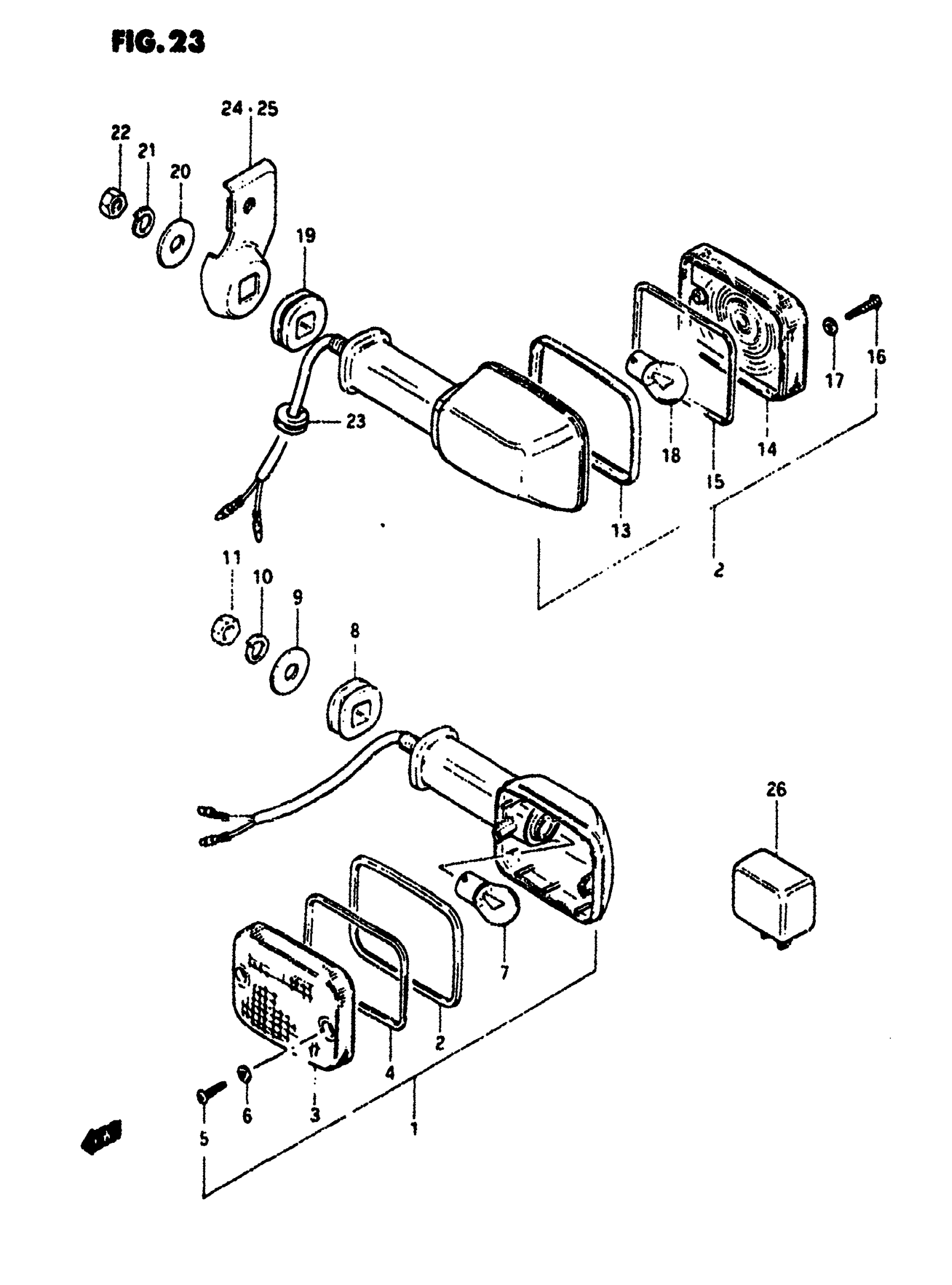

Suzuki GS550M (1982) TURN SIGNAL LAMP Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 7 This part replaces 35601-45530.

35601-45570-999

Unavailable

2

RIM

35611-49230

$13.28

3

LENS

35612-49231

$17.75

4

GASKET

35613-49230

$5.38

5

SCREW This part replaces 03211-04208.

03211-04207

$1.49

6

GASKET

35627-43010

$2.28

7

BULB (12V,23W)

09471-12006

$3.98

8

CUSHION

09320-15002

$4.11

9

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

10

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

11

NUT This part replaces 08310-12108.

08310-00107

$2.19

12

NO DESCRIPTION AVAILABLE | Includes Item(s) 13 - 18 This part replaces 35601-45530.

35601-45570-999

Unavailable

13

RIM

35611-49230

$13.28

14

LENS

35612-49231

$17.75

15

GASKET

35613-49230

$5.38

16

SCREW This part replaces 03211-04208.

03211-04207

$1.49

17

GASKET

35627-43010

$2.28

18

BULB (12V,23W)

09471-12006

$3.98

19

CUSHION

09320-15002

$4.11

20

WASHER, UPPER, OUTER This part replaces 09160-10006.

09160-10501

$2.33

21

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

22

NUT This part replaces 08310-12108.

08310-00107

$2.19

23

GROMMET

09308-05011

Unavailable

24

NO DESCRIPTION AVAILABLE This part replaces 35620-47700.

35620-47701

Unavailable

25

NO DESCRIPTION AVAILABLE This part replaces 35640-47700.

35640-47701

Unavailable

26

RELAY ASSY, TURNSIGNAL This part replaces 38610-45031.

38610-31X50

$80.15
