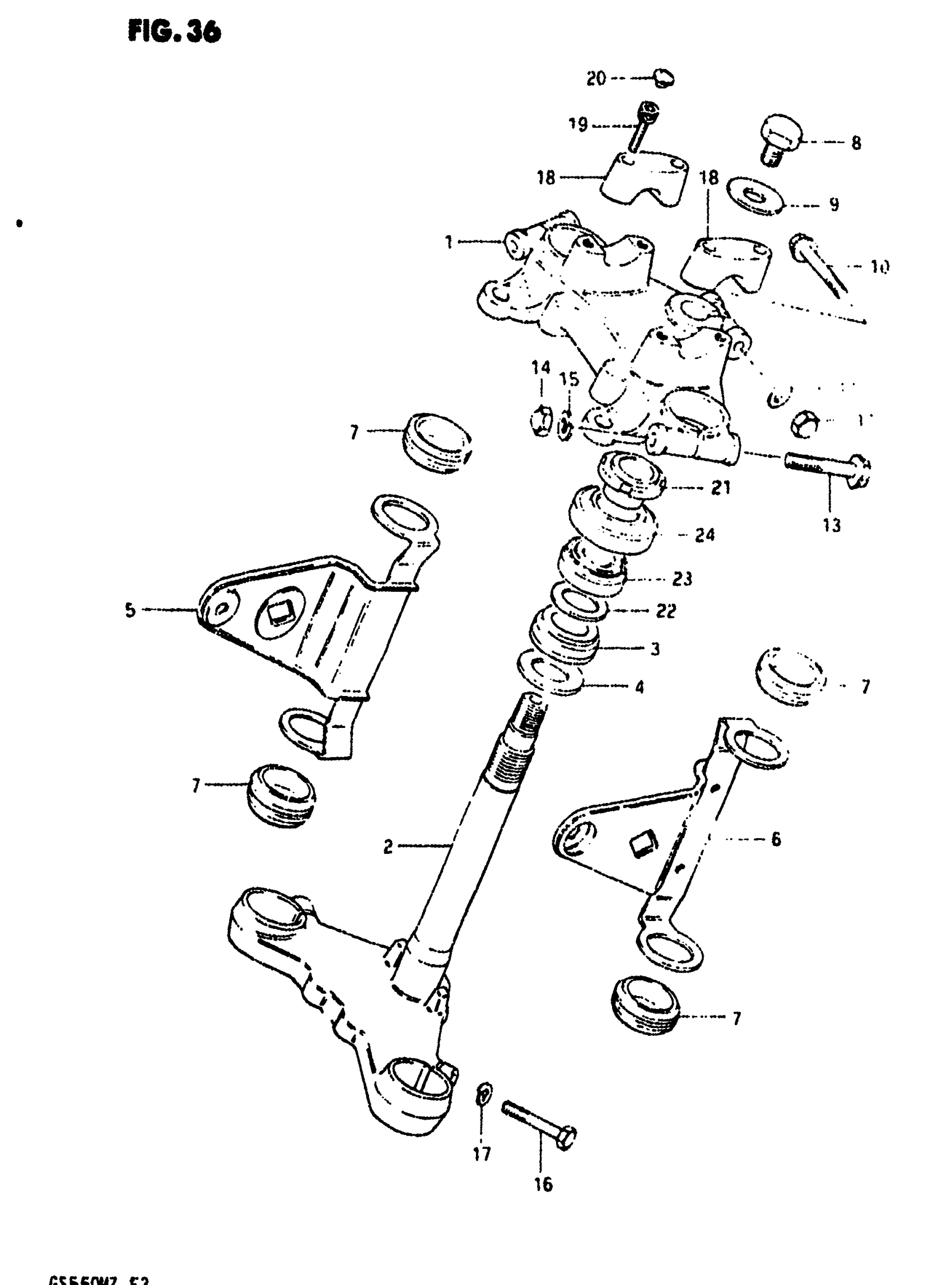

Suzuki GS550M (1982) STEERING STEM Diagram

#

Description
Price

1

STEM HEAD, STEERING (BLACK)

51311-34200-291

Unavailable

2

STEERING STEM SET | Includes Item(s) 3 - 4 This part replaces 51401-34810.

51400-44870

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE This part replaces 51530-34200-291.

51500-34810-291

Unavailable

6

BRACKET, HEADLAMP LH (BLACK)

51540-34200-291

Unavailable

7

CUSHION This part replaces 51553-47000.

51553-34280

$5.50

8

BOLT

09104-12015

Unavailable

9

WASHER

09160-12048

Unavailable

10

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

11

NUT This part replaces 08313-11088.

08313-10087

$2.28

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

BOLT This part replaces 01517-10558.

01550-10557

$3.91

14

NUT

09145-10002

Unavailable

15

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

16

BOLT This part replaces 01107-10408.

01500-10407

$3.55

17

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

18

CLAMP, HANDLEBAR UPPER (BLACK)

56211-34300-291

Unavailable

19

BOLT, STEERING DAMPER This part replaces 09106-08013.

07130-0830A

$1.74

20

CAP

09250-06004

$1.49

21

NUT, STEERING STEM

51631-34200

Unavailable

22

WASHER

09160-18002

$2.38

23

BEARING

09265-25008

Unavailable

24

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15
