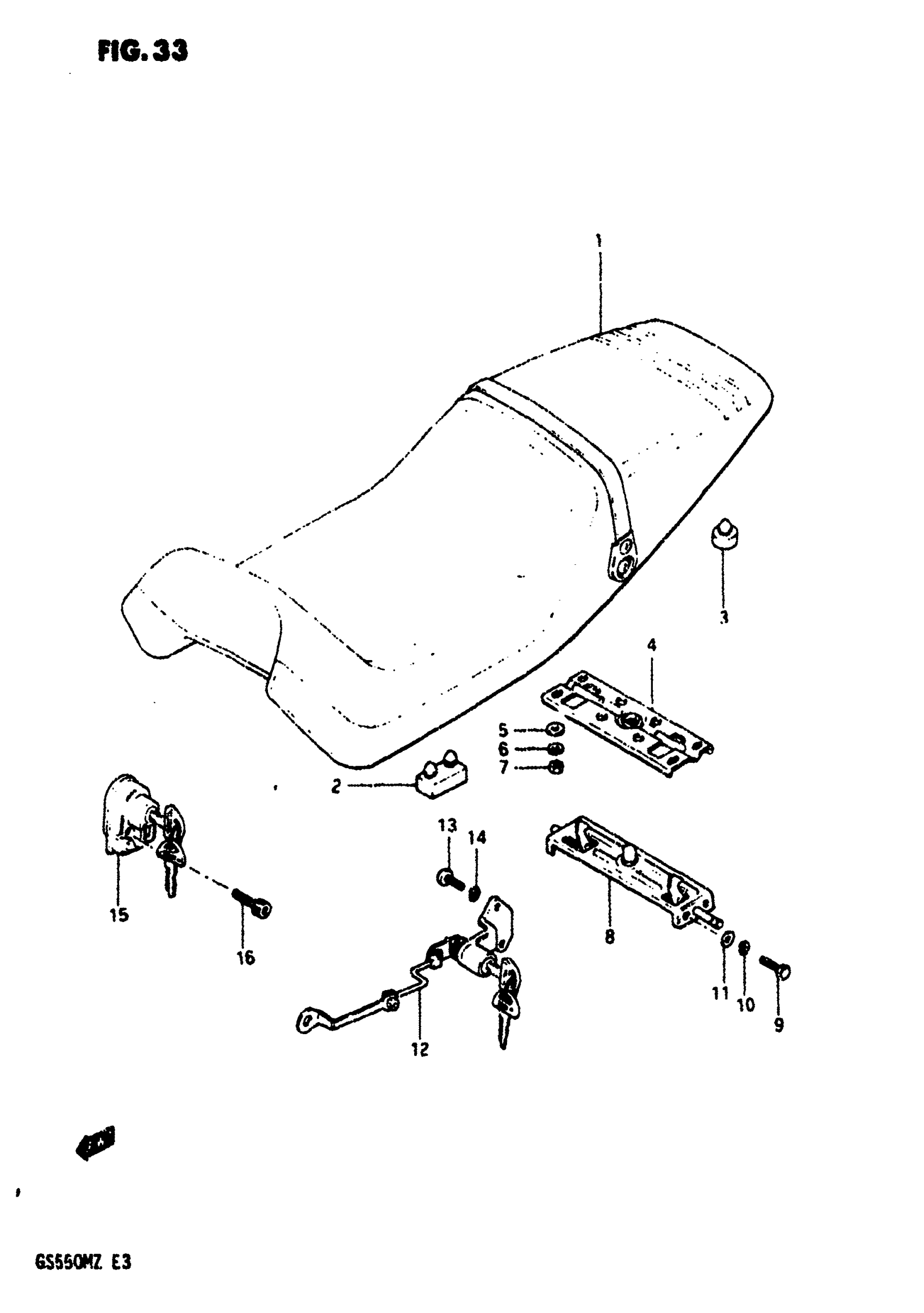

Suzuki GS550M (1982) SEAT Diagram

#

Description
Price

1

SEAT ASSY

45100-47702-79W

Unavailable

2

CUSHION

09321-08006

$2.90

3

CUSHION

09321-10001

$2.61

4

GUIDE, SEAT CLAMP

45124-34300

Unavailable

5

WASHER This part replaces 08322-21068.

08322-01067

$2.13

6

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

7

.NUT This part replaces 08310-22068.

08310-00067

$2.13

8

CLAMP, SEAT

45220-34302

Unavailable

9

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

WASHER This part replaces 08322-21058.

08322-01057

$2.13

12

LOCK SET, SEAT

95700-34810

Unavailable

13

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

14

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

15

LOCK SET, HELMET

95700-34210

Unavailable

16

BOLT This part replaces 09106-05008.

07130-0525B

$2.52
