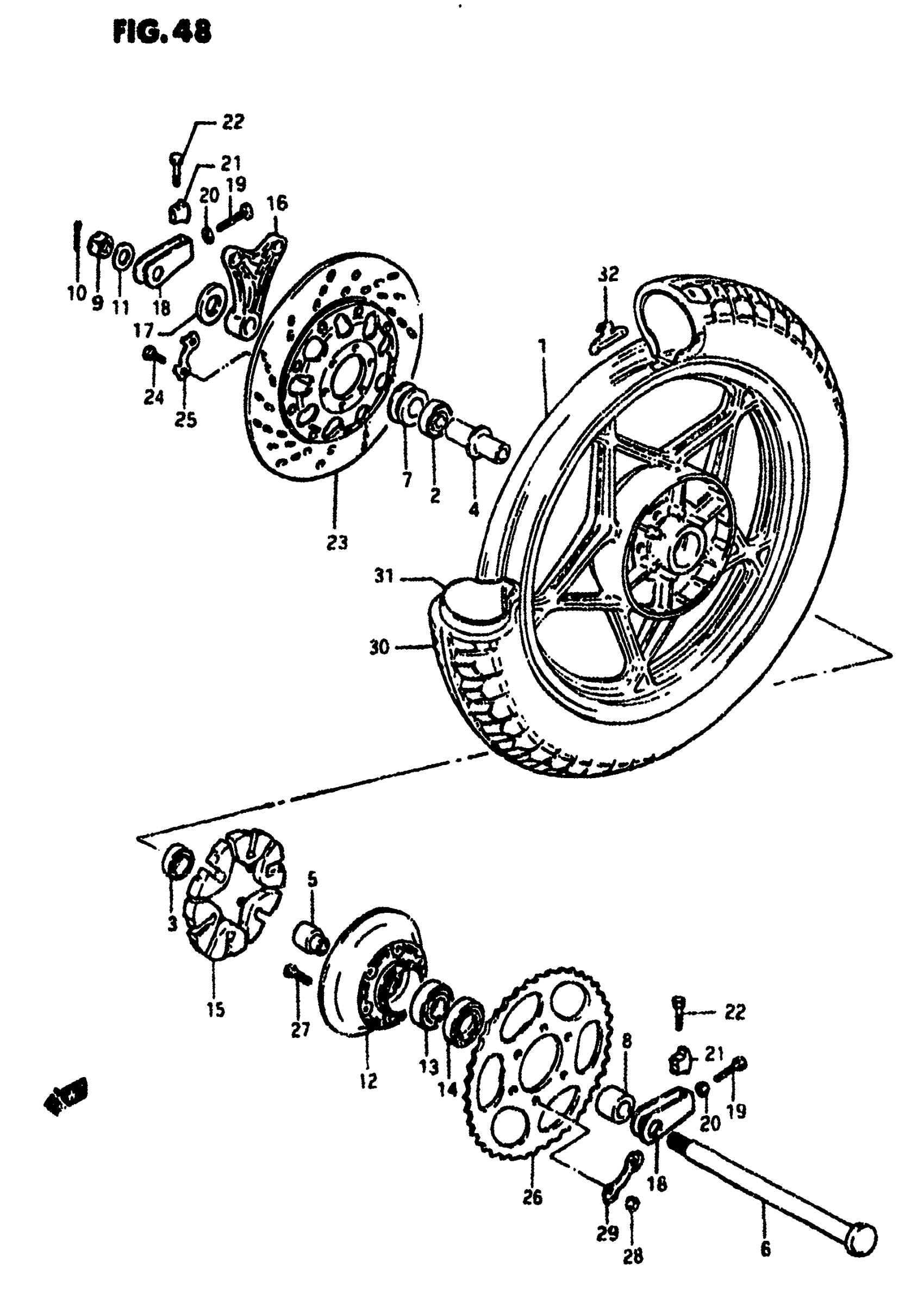

Suzuki GS550M (1982) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, RESR (18x2.15)

64111-49300-12U

Unavailable

2

BEARING, RH

08133-63037

$36.30

3

BEARING, LH

08153-63037

Unavailable

4

SPACER, BEARING

64731-45000

Unavailable

5

HOLDER, BEARING

64733-47000

Unavailable

6

AXLE, REAR

64711-47200

Unavailable

7

NO DESCRIPTION AVAILABLE This part replaces 64740-47001.

64740-47002

Unavailable

8

SPACER, LH

09180-17048

Unavailable

9

NUT

09141-16001

Unavailable

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

11

WASHER (17X30X3.2) This part replaces 09160-17013.

09160-17050

$2.45

12

DRUM, SPROCKET This part replaces 64611-31001.

64611-31003

Unavailable

13

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

14

OIL SEAL

09285-33001

$13.27

15

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$11.19

16

BRACKET, REAR CALIPERS

69721-47001

Unavailable

17

SPACER, CALIPERS BRACKET

64741-47300

Unavailable

18

ADJUSTER, CHAIN

61410-47200

Unavailable

19

BOLT (8X50) This part replaces 09104-08018.

09104-08034

$3.04

20

NUT This part replaces 08310-12088.

08310-00087

$2.13

21

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

Unavailable

22

BOLT, LH This part replaces 01517-08508.

01550-08507

$3.55

23

DISC, REAR BRAKS

59210-18460

Unavailable

24

BOLT

09100-08094

$2.71

25

WASHER

09169-08016

$2.41

26

SPROCKET, REAR (NT:50)

64511-47600

Unavailable

27

BOLT This part replaces 09119-10002.

09105-10001

$2.87

28

NUT This part replaces 09140-10026.

09140-10026-XC0

$1.70

29

WASHER

09169-10007

Unavailable

30

TIRE (3.75H-18) 8S

65100-34530

Unavailable

31

TUBE, INNER This part replaces 65200-15030.

65200-49015

Unavailable

32

BALANCER (20G)

55411-47001

Unavailable

32

BALANCER (30G)

55412-47001

Unavailable

32

BALANCER (10G)

55413-47001

Unavailable
