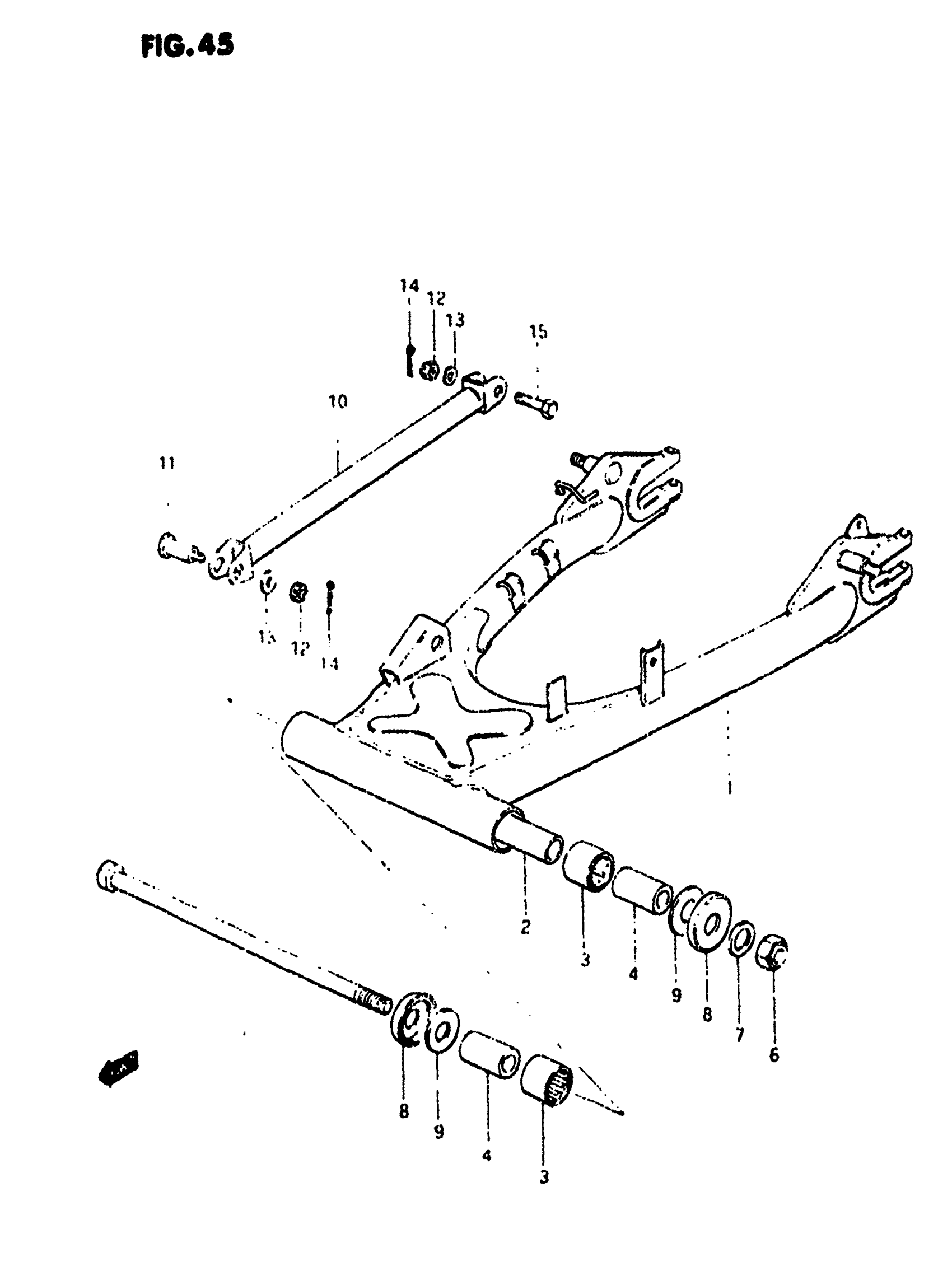

Suzuki GS550M (1982) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 61100-47860-291.

61100-47861-291

Unavailable

2

SPACER

61281-45001

Unavailable

3

BEARING

09263-22017

$22.58

4

SPACER

61251-45001

$17.37

5

SHAFT,RR SWGARM This part replaces 61211-31001.

61211-3100V

Unavailable

6

NUT This part replaces 08319-21148.

08319-2114A

$3.96

7

WASHER This part replaces 08322-11148.

08322-01147

$1.91

8

COVER, DUST SEAL

61262-45002

$7.97

9

WASHER

09160-14020

$2.19

10

TORQUE LINK, REAR

64310-34501-291

Unavailable

11

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

12

NUT This part replaces 08314-41108.

08314-4010B

$2.50

13

WASHER This part replaces 08322-11108.

08322-01107

$2.15

14

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

15

BOLT, REAR

09101-10017

Unavailable
