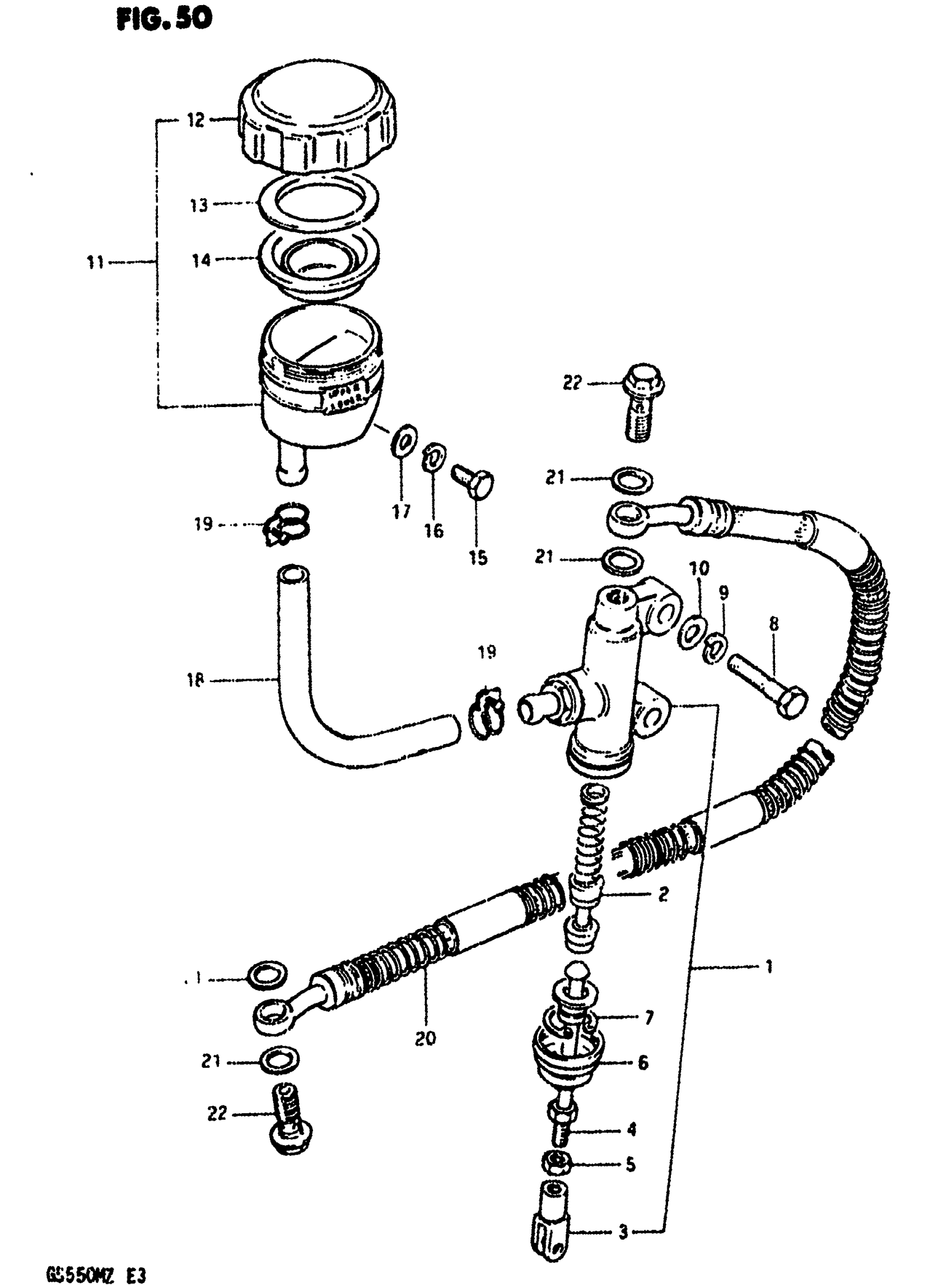

Suzuki GS550M (1982) REAR MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY, REAR MASTER | Includes Item(s) 2 - 7

69600-45302

Unavailable

2

PISTON & CUP SET

69600-45820

$45.83

3

YOKE

69692-34300

Unavailable

4

ROD, PUSH

69670-45301

Unavailable

5

NUT This part replaces 69693-34300.

69693-05A00

$1.96

6

BOOT

69691-45001

$5.70

7

CIRCLIP

51162-70040

$3.25

8

BOLT This part replaces 01107-08308.

01500-08307

$3.04

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

TANK ASSY,RR RS | Includes Item(s) 12 - 14 This part replaces 69740-34230.

69740-31D00

Unavailable

12

CAP This part replaces 59669-33603.

59669-07D00

$31.72

13

PLATE, DIAPHRAGM

59668-18441

$4.52

14

DIAPHRAGM

59667-18441

$10.28

15

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

HOSE

69731-47700

Unavailable

19

CLAMP This part replaces 09400-16302.

09400-16304

$3.10

20

HOSE, REAR BRAKE

69480-47701

Unavailable

21

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.84

22

UNION This part replaces 09360-10007.

09360-10017

$3.42
