Partiron

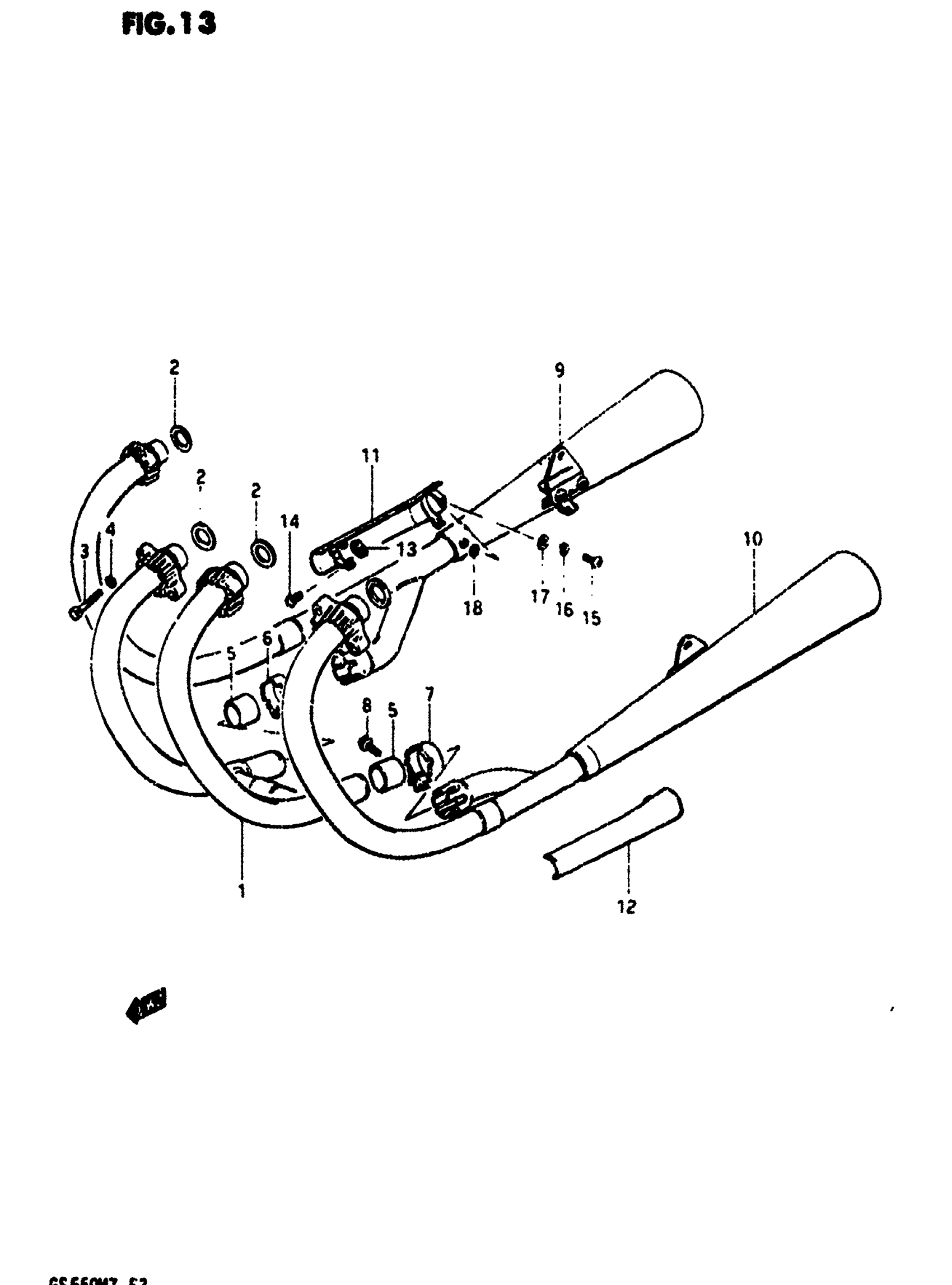

Suzuki GS550M (1982) MUFFLER Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER

14100-47360

Unavailable

2

GASKET, EXHAUST PIPE This part replaces 14181-03310.

14181-37D00

$4.56

3

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

CONNECTOR,MUFLR This part replaces 14771-47010.

14771-47020-H17

Unavailable

6

CLAMP, RH This part replaces 14459-34300.

14459-34200

Unavailable

7

CLAMP, LH This part replaces 14469-34300.

14469-34200

Unavailable

8

BOLT This part replaces 01517-08258.

01550-08257

$2.81

9

NO DESCRIPTION AVAILABLE This part replaces 14301-47360.

14301-47361-H01

Unavailable

10

NO DESCRIPTION AVAILABLE This part replaces 14302-47360.

14302-47361-H01

Unavailable

11

COVER, MUFFLER RH

14780-47361

Unavailable

12

COVER, MUFFLER LH

14790-47361

Unavailable

13

CLAMP This part replaces 14785-34300.

14785-34200

Unavailable

14

SCREW This part replaces 02112-05208.

02112-05207

$1.97

15

SCREW This part replaces 02112-06128.

02112-06127

$1.84

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

GASKET,MUFFLER This part replaces 09168-06005.

09168-06105

$2.12
