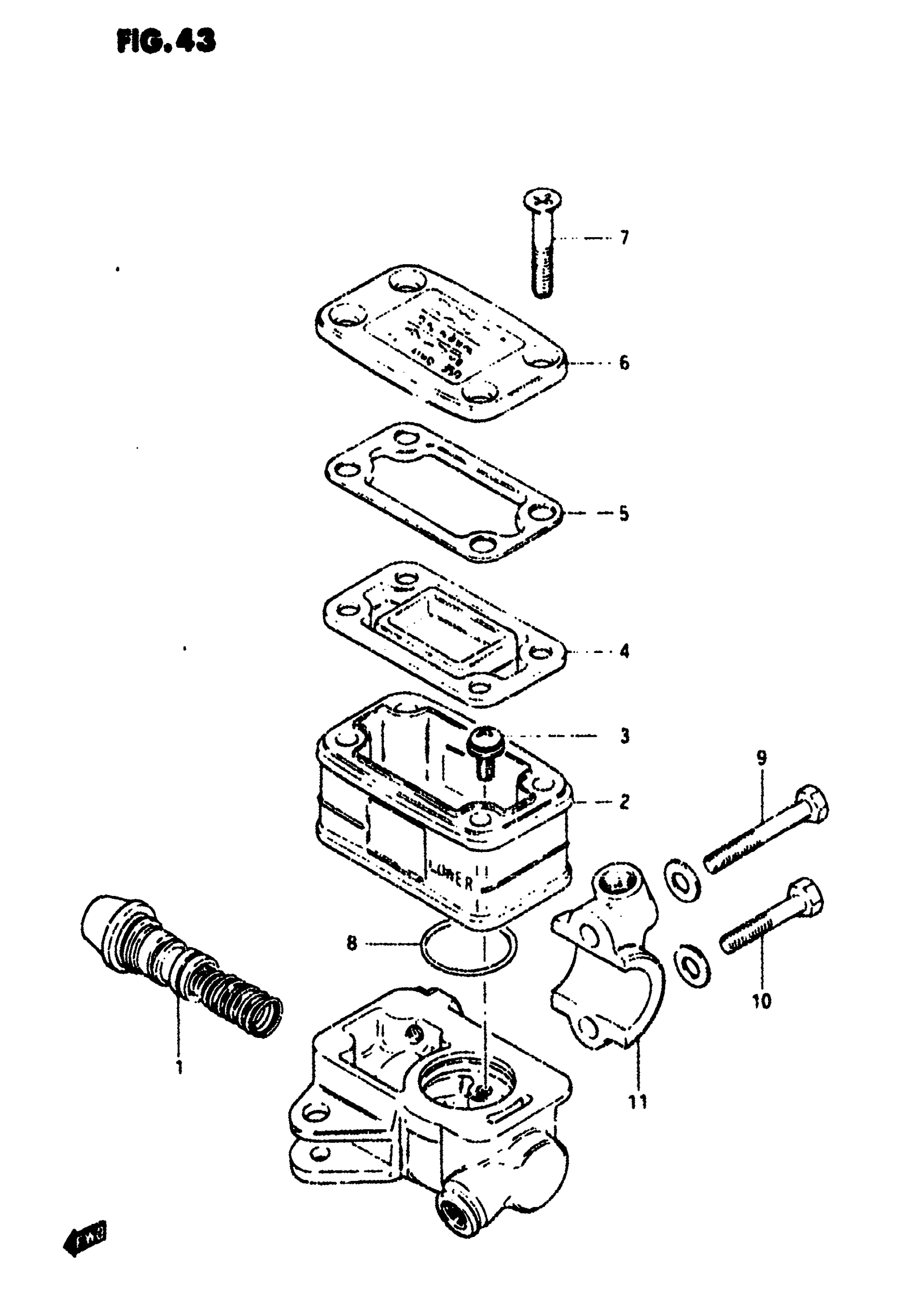

Suzuki GS550M (1982) MASTER CYLINDER Diagram

#

Description

Price

0

CVLINDER ASSY, MASTER | Includes Item(s) 1 - 11

59600-49031

Unavailable

1

PISTON/CUP SET This part replaces 59600-49810.

59600-49811

Unavailable

2

RESERVOIR

59687-49000

Unavailable

3

SCREW This part replaces 59688-49000.

02112-0410A

$1.49

4

DIAPHRAGM

59667-49000

Unavailable

5

SCREW This part replaces 59688-49000.

02112-0410A

$1.49

6

CAP, RESERVOIR

59669-49030

$34.78

7

SCREW

59691-49000

Unavailable

8

O RING

59686-49000

Unavailable

9

BOLT

59694-49001

Unavailable

10

BOLT

59693-49001

Unavailable

11

HOLDER

59671-49000

Unavailable
