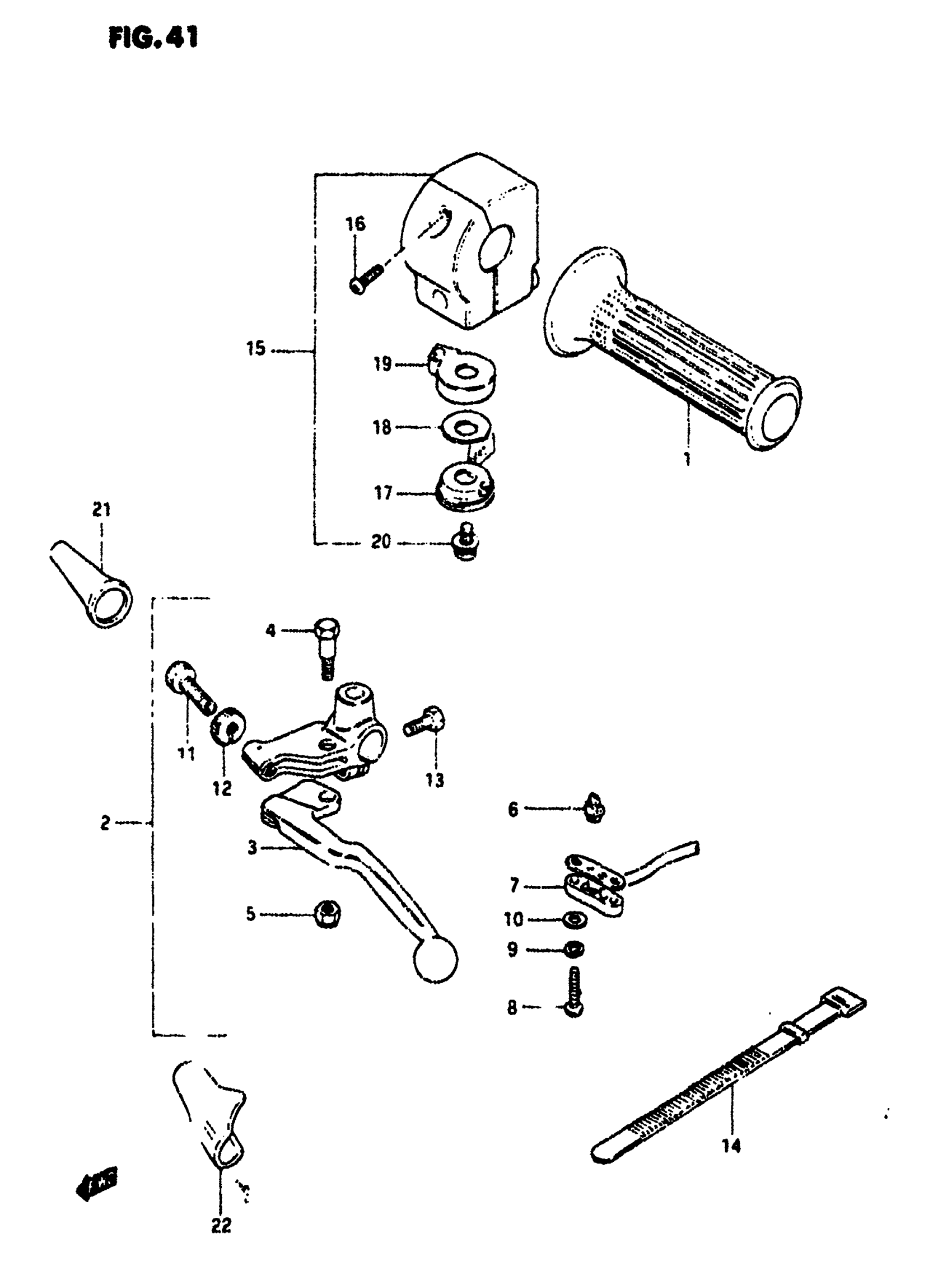

Suzuki GS550M (1982) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP This part replaces 57211-45030.

57211-24201

Unavailable

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 13 This part replaces 57500-49112.

57500-49301

Unavailable

3

LEVER, CLUTCH

57620-49111

$23.23

4

BOLT This part replaces 57431-11011.

57431-11013

$6.31

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

HOLDER

57465-18601

$4.34

7

COVER

57481-33010

$5.84

8

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

9

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

10

WASHER This part replaces 08322-21038.

08322-01037

$1.93

11

ADJUSTER, CABLE

57441-11010

$5.62

12

NUT

57442-11010

$2.79

13

BOLT

57451-49100

Unavailable

14

BAND (L:120)

09407-12402

$3.04

15

NO DESCRIPTION AVAILABLE | Includes Item(s) 16 - 20 This part replaces 37400-47710.

37400-45923

Unavailable

16

SCREW This part replaces 02112-05168.

02112-05167

$1.97

17

LEVER, STARTER

58721-27503

$7.51

18

WASHER

58722-03010

$3.71

19

BODY This part replaces 37572-49440.

37572-49441

$13.74

20

SCREW This part replaces 37574-49440.

02112-7516A

$2.41

21

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.22

22

COVER

57661-31000

$7.25
