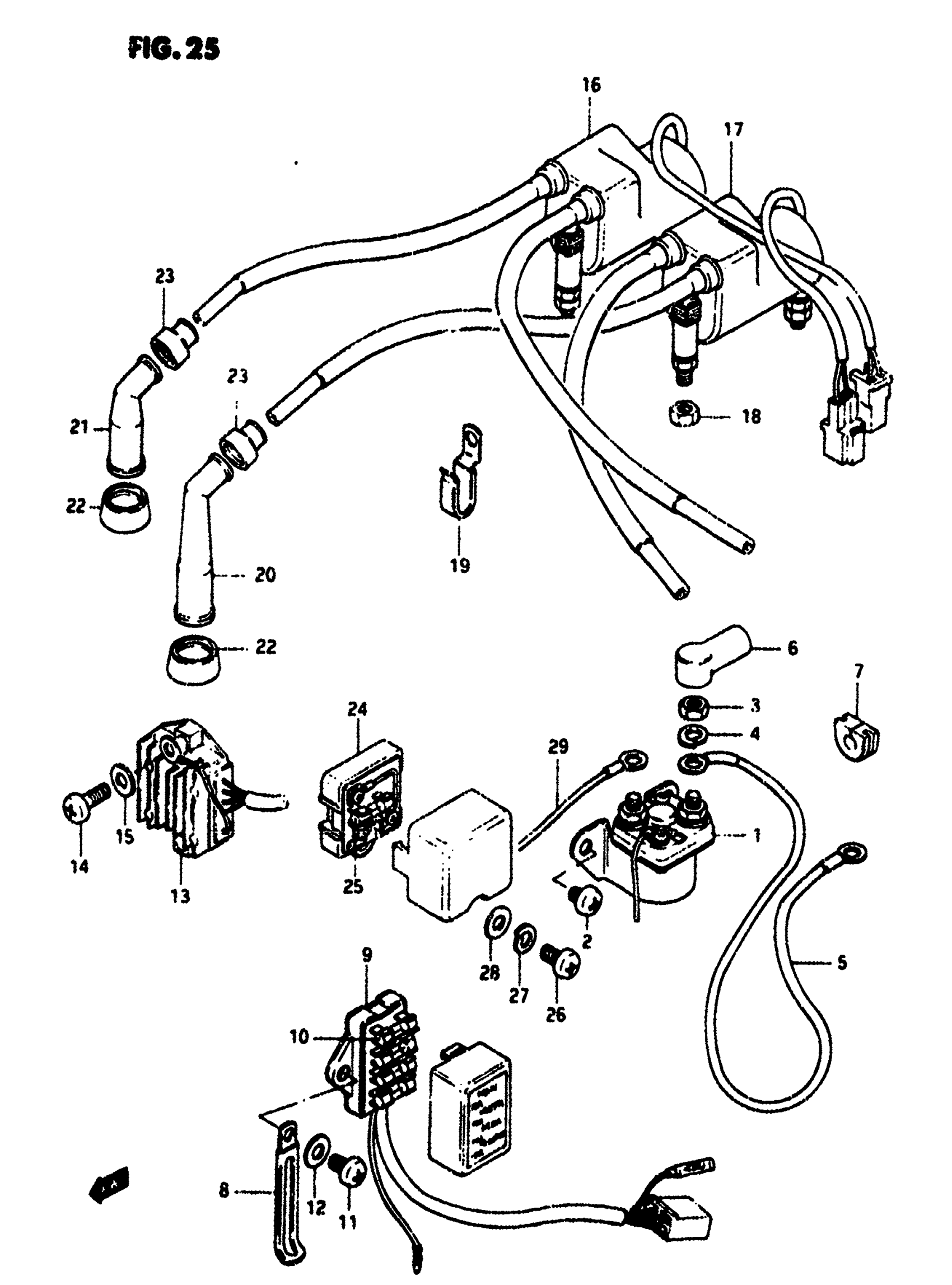

Suzuki GS550M (1982) ELECTRICAL Diagram

#

Description
Price

1

RELAY ASSY,STAR This part replaces 31800-37020.

31800-37021

$71.42

2

SCREW This part replaces 02112-06088.

02112-06087

$1.49

3

.NUT This part replaces 08310-22068.

08310-00067

$2.13

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

5

LEAD WIRE, STARTING MOTOR This part replaces 33850-47020.

33850-48B00

Unavailable

6

CAP, STARTER MOTOR This part replaces 31861-35100.

31861-48B10

$6.55

7

GROMMET

31482-47000

$3.37

8

CLAMP(L:80) This part replaces 09404-06414.

09404-06036

$1.74

9

BOX ASSY,FUSE | Includes Item(s) 10 - 10 This part replaces 36740-34500.

36740-34X01

Unavailable

10

FUSE (15A)

09481-15001

$2.06

10

FUSE (10A)

09481-10001

$1.71

11

SCREW This part replaces 02112-06128.

02112-06127

$1.84

12

WASHER This part replaces 08322-21068.

08322-01067

$2.13

13

RECTIFIER ASSY This part replaces 32800-47120.

32800-47121

Unavailable

14

SCREW This part replaces 02112-06208.

02112-06207

$1.78

15

WASHER This part replaces 08322-21068.

08322-01067

$2.13

16

COIL ASSY,IGNIT This part replaces 33410-47320.

33410-47021

Unavailable

17

COIL ASSY,IGNIT This part replaces 33420-47320.

33410-47021

Unavailable

18

.NUT This part replaces 08310-11068.

08310-00067

$2.13

19

CLAMP This part replaces 09403-06307.

09403-06329

$2.32

20

CAP, SPARK PLUG (L)

33510-45010

$24.99

21

CAP, SPARK PLUG (S)

33510-43010

$24.99

22

SEAL, SPARK PLUG

33541-69010

$4.37

23

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34

24

TERMINAL, POWER SOURCE | Includes Item(s) 25

38850-47000

Unavailable

25

FUSE (10A)

09481-10001

$1.71

26

SCREW This part replaces 02112-06168.

02112-06167

$1.49

27

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

28

WASHER This part replaces 08322-21068.

08322-01067

$2.13

29

LEAD WIRE

36851-34500

Unavailable
