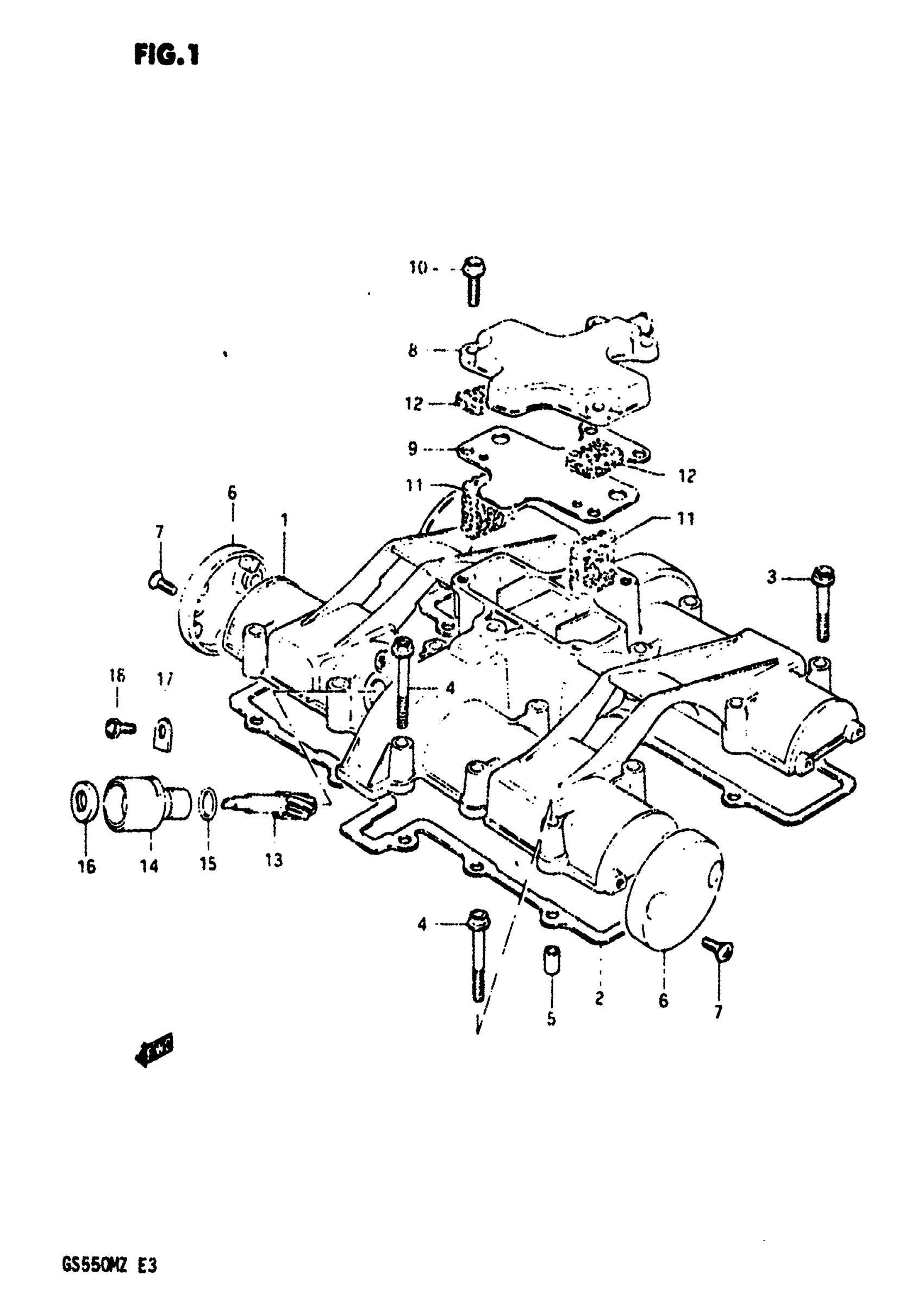

Suzuki GS550M (1982) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD

11171-47020

Unavailable

2

GASKET,CYL HEAD This part replaces 11173-47020.

11173-47031

Unavailable

3

BOLT This part replaces 01517-06408.

01550-06407

$2.69

4

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

5

PIN

09206-08001

$1.78

6

CAP, SIDE

11174-49000

Unavailable

7

SCREW (5x12)

09127-05013

$1.49

8

COVER, BREATHER This part replaces 11176-47012.

11176-47042

Unavailable

9

BREATHER CVR GA This part replaces 11177-47001.

11177-47001-H17

$14.97

10

BOLT This part replaces 01517-06208.

01550-06207

$2.30

11

SEPARATOR,OIL B This part replaces 11186-45000.

11186-45001

Unavailable

12

SEPARATOR,OIL B This part replaces 11187-45000.

11187-45001

Unavailable

13

GEAR TACHO DRVN This part replaces 26431-47002.

26431-47003

Unavailable

14

SLEEVE This part replaces 26441-45000.

26441-49000

$30.58

15

SEAL BAND

26451-45000

$5.05

16

OIL SEAL

09289-05002

$8.43

17

PLATE, GEAR SLEEVE

26449-33000

$4.35

18

SCREW

09128-05101

$1.49
