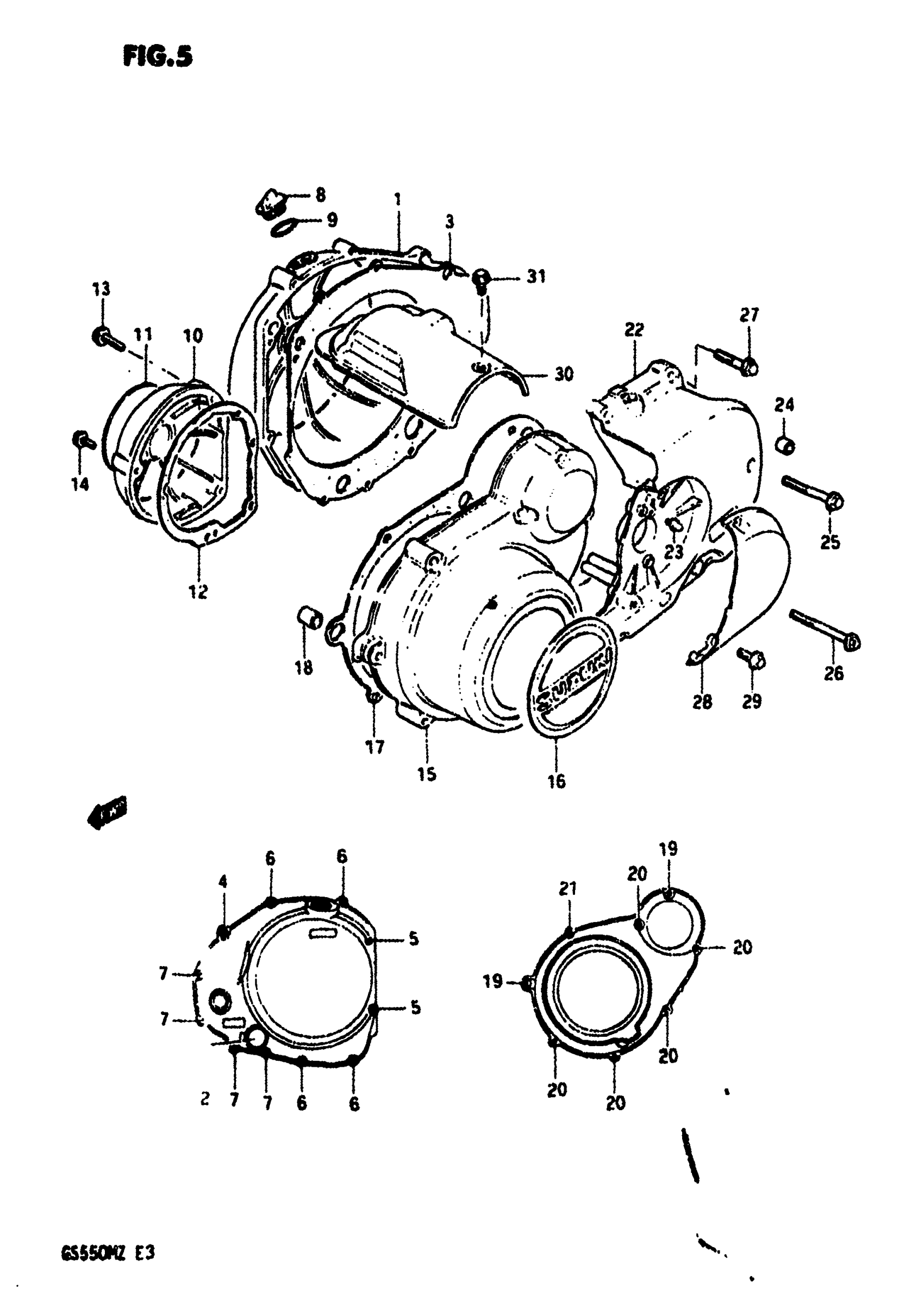

Suzuki GS550M (1982) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-47011

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

GASKET,CL COVER This part replaces 11482-47000.

11482-47000-H17

Unavailable

4

BOLT This part replaces 01547-06358.

01547-06357

$2.03

5

BOLT This part replaces 01547-06408.

01547-06407

$2.32

6

BOLT This part replaces 01547-06258.

01547-06257

$2.03

7

BOLT This part replaces 01547-06208.

01547-06207

$2.01

8

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

9

O RING

09280-32005

$1.99

10

COVER, CONTACT BREAKER

11381-47002

Unavailable

11

EMBLEM

68235-34500

Unavailable

12

GASKET

11491-47000

$3.85

13

BOLT This part replaces 01544-05308.

01547-05307

$2.30

14

BOLT This part replaces 01544-05168.

01547-05167

$1.72

15

COVER, GENERATOR

11351-47001

Unavailable

16

EMBLEM

68233-34200

Unavailable

17

GASKET,MAGCOVER This part replaces 11483-47000.

11483-47000-H17

Unavailable

18

PIN This part replaces 09206-13001.

04211-13189

$2.19

19

BOLT This part replaces 01547-06458.

01547-06457

$2.32

20

BOLT This part replaces 01547-06408.

01547-06407

$2.32

21

BOLT This part replaces 01547-06358.

01547-06357

$2.03

22

COVER SET, ENGINE SPROCKET | Includes Item(s) 23

11300-47822

Unavailable

23

GREASE NIPPLE

08351-11009

$7.51

24

PIN

04211-09129

$1.65

25

BOLT This part replaces 01547-06908.

01547-0690B

$3.20

26

BOLT This part replaces 01547-06808.

01547-0680B

$3.18

27

BOLT This part replaces 01547-06308.

01547-06307

$2.03

28

CAP, CLUTCH RELEASE

11387-47001

Unavailable

29

BOLT This part replaces 01544-05168.

01547-05167

$1.72

30

COVER, STARTER MOTOR

11382-47001

Unavailable

31

BOLT This part replaces 01544-05088.

01547-05087

$1.72
