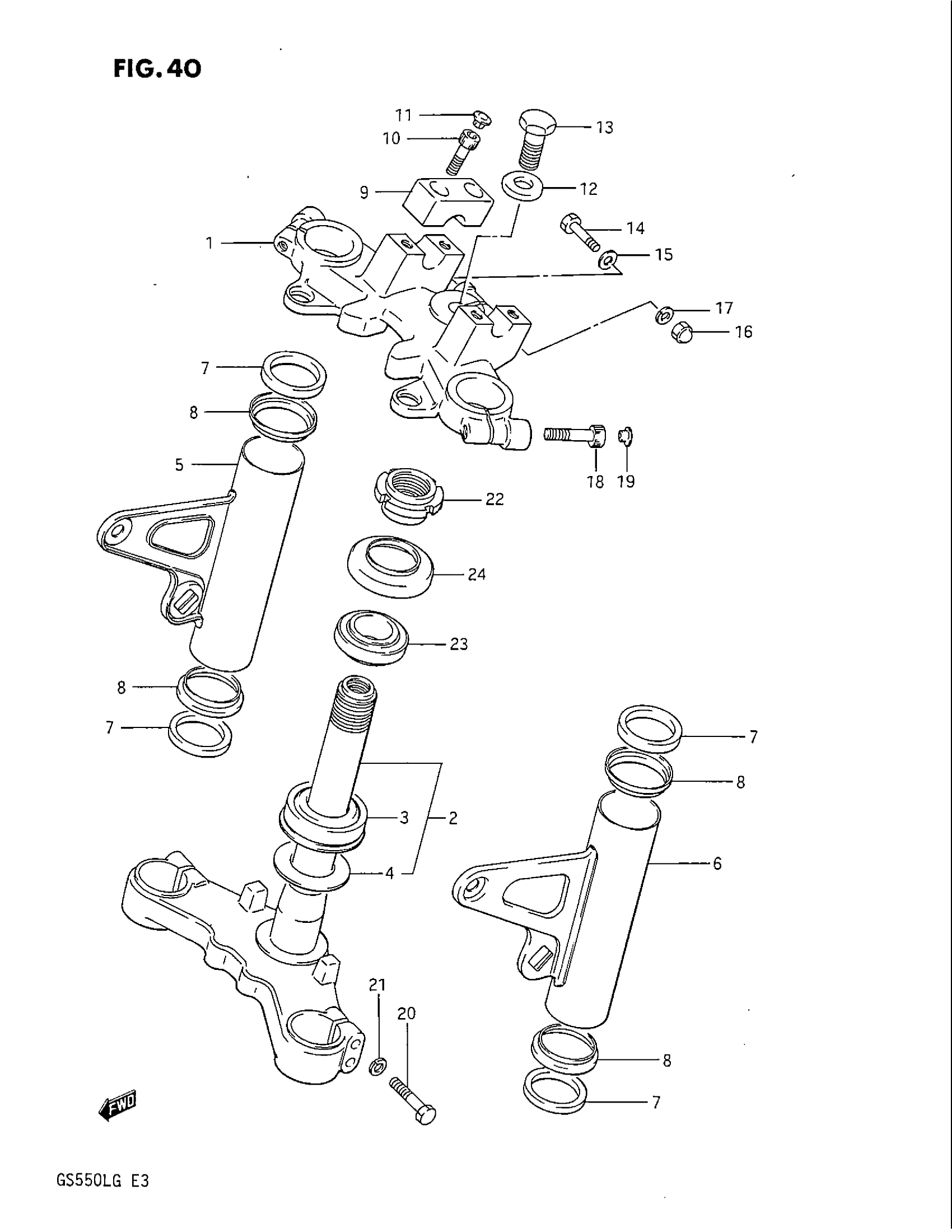

Suzuki GS550L (1986) STEERING STEM (MODEL G) Diagram

#

Description
Price

1

STEERING STEM HEAD

51311-43560

Unavailable

2

STEM, STEERING | Includes Item(s) 3 - 4

51410-15520

Unavailable

3

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

4

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

5

NO DESCRIPTION AVAILABLE This part replaces 51530-15500.

51500-15840

Unavailable

6

BRACKET, HEADLAMP LH

51540-15500

Unavailable

7

CUSHION, HEADLAMP BRACKET

51553-33300

Unavailable

8

COVER

51556-43560

Unavailable

9

HOLDER, HANDLEBAR

56211-43530

Unavailable

10

BOLT This part replaces 07110-08308.

07130-08307

$3.89

11

CAP

09250-06004

$1.49

12

WASHER

51356-43530

$6.55

13

BOLT

51352-43530

$15.42

14

BOLT This part replaces 01107-08508.

01500-08507

$3.05

15

WASHER This part replaces 08322-21088.

08322-01087

$2.13

16

NUT This part replaces 08313-11088.

08313-10087

$2.28

17

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

18

BOLT, LH This part replaces 07110-10358.

07130-10357

$5.18

19

CAP

09250-08010

$2.33

20

BOLT This part replaces 01107-08405.

01500-0840A

$2.60

21

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

22

NUT, STEERING STEM

51631-34200

Unavailable

23

BEARING, UPPER

09265-25008

Unavailable

24

SEAL,DUST This part replaces 51643-40502.

51643-40503

$6.15
