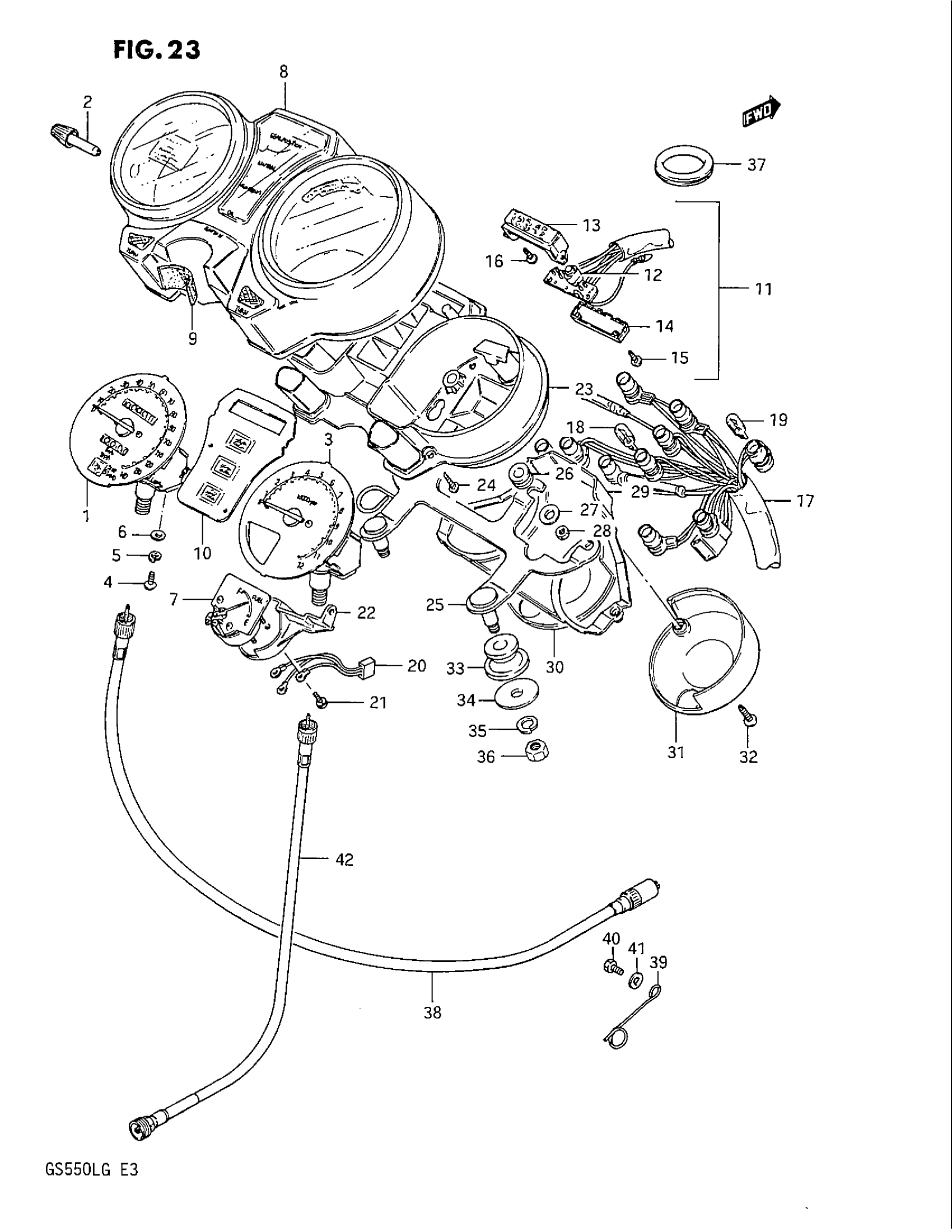

Suzuki GS550L (1986) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE/KILO)

34120-15530

Unavailable

2

KNOB

34124-49400

$4.43

3

NO DESCRIPTION AVAILABLE This part replaces 34220-43530.

34220-15510

Unavailable

4

SCREW This part replaces 02112-04108.

02112-04107

$1.55

5

LOCK WASHER This part replaces 08321-21047.

08321-0104A

$1.84

6

WASHER This part replaces 08322-21048.

08322-01047

$1.86

7

FUELMETER

34320-15511

Unavailable

8

HOOD, METER

34150-15510

Unavailable

9

SEAL

34993-47000

Unavailable

10

PANEL, PILOT LENS

36386-15510

Unavailable

11

INDICATOR, GEAR POSITION | Includes Item(s) 12 - 15

36450-47751

Unavailable

12

BULB

09471-12071

$7.20

13

CASE

36452-33201

Unavailable

14

COVER

36454-45100

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 36456-45100.

03511-03146

Unavailable

16

SCREW This part replaces 36456-33220.

35625-01A00

Unavailable

17

SOCKET

34173-15510

Unavailable

18

BULB (12V 3.4W)

09471-12028

$1.99

19

BULB (12V,1.7W)

09471-12077

$3.55

20

LEAD WIRE, FUELMETER

34378-15511

Unavailable

21

SCREW

34383-09400

Unavailable

22

BRACKET, FUELMETER

34951-15510

Unavailable

23

CASE, METER

34111-15510

Unavailable

24

SCREW

36456-15510

Unavailable

25

BRACKET, METER

34950-43510

Unavailable

26

CUSHION, METER NO.1 This part replaces 34189-15510.

34189-32B00

$5.78

27

WASHER (5.5X16X1.2) This part replaces 09160-05017.

09160-05043

$2.30

28

NUT This part replaces 08310-11058.

08310-00057

$1.84

29

COVER, LOWER

36383-15510

Unavailable

30

COVER, SPEEDOMETER

34193-15510

Unavailable

31

COVER, TACHOMETER

34293-15510

Unavailable

32

SCREW This part replaces 36456-15520.

03141-0420A

$1.70

33

CUSHION

34956-31001

$4.37

34

WASHER, EXHAUST SUPPORT This part replaces 09160-08057.

09160-08135

$2.35

35

LOCK WASHER This part replaces 08321-21084.

08321-0108A

$1.84

36

NUT This part replaces 08310-11085.

08310-0008A

$1.84

37

GROMMET, GEAR POSITION WIRE

09308-30001

Unavailable

38

CABLE ASSY, SPE | MODEL F This part replaces 34910-43500.

34910-08A00

Unavailable

38

CABLE ASSY,SPEE | MODEL G This part replaces 34910-43510.

34910-31991

Unavailable

39

GUIDE, SPEEDOMETER CABLE | MODEL F

34938-45100

$6.57

40

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

41

WASHER This part replaces 08322-21068.

08322-01067

$2.13

42

CABLE ASSY,TACH This part replaces 34940-43500.

34940-47034

$23.49
