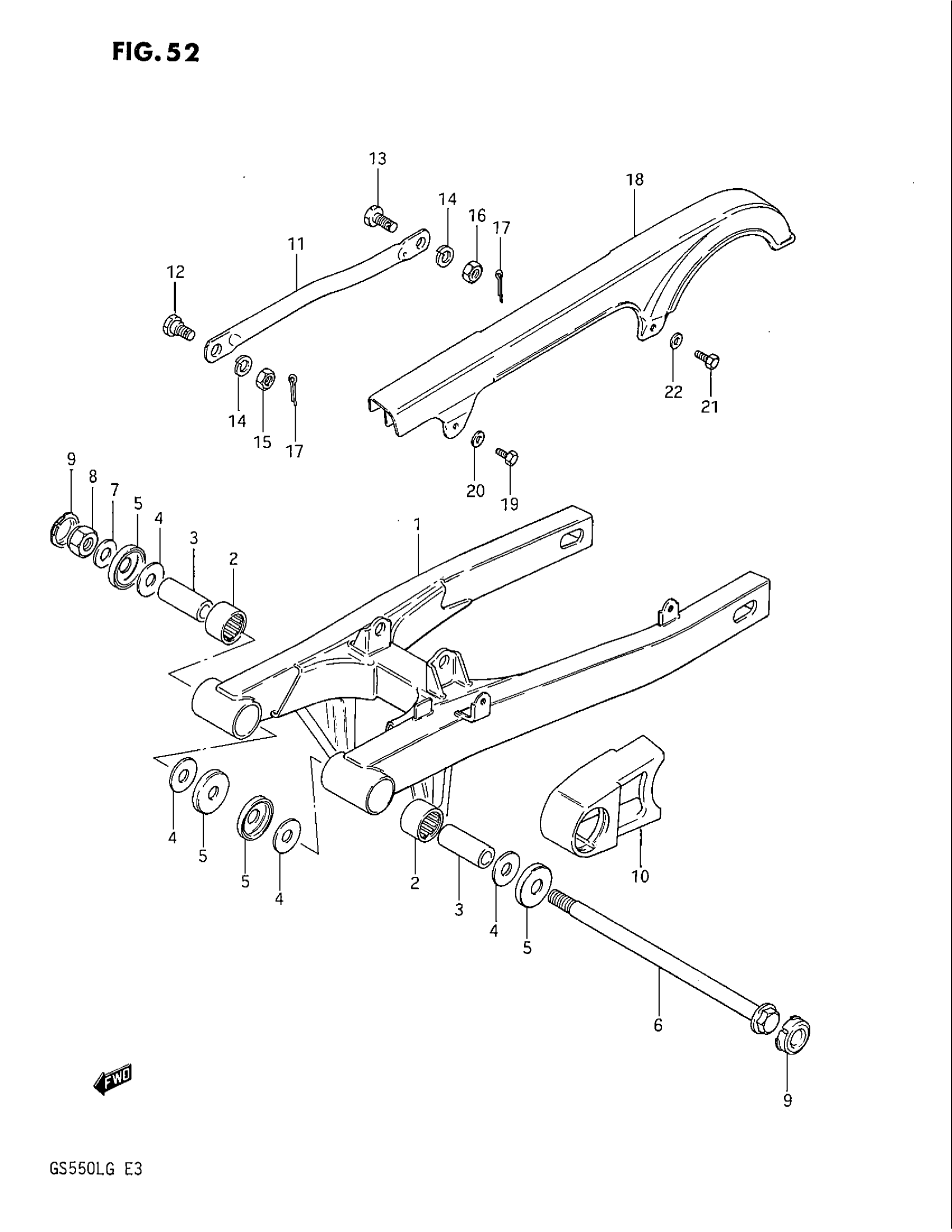

Suzuki GS550L (1986) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM SET (BLACK) | Includes Item(s) 2

61000-43500-291

Unavailable

2

BEARING

09263-25024

$25.92

3

SPACER

61251-43500

Unavailable

4

WASHER

08211-16381

$2.42

5

COVER, DUST SEAL

61262-49000

Unavailable

6

SHAFT, PIVOT

61211-43500

Unavailable

7

WASHER This part replaces 08322-11148.

08322-01147

$1.91

8

NUT This part replaces 09159-14013.

09159-14019

$11.61

9

CAP, PIVOT

61222-43400

$5.24

10

BUFFER, CHAIN DEFENSE

61273-43401

Unavailable

11

TORQUE LINK, REAR (BLACK) | L:336

64311-43510-291

Unavailable

12

BOLT, FRONT

09111-10010

Unavailable

13

BOLT, REAR

09101-10003

Unavailable

14

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

15

NUT This part replaces 08310-22108.

08310-00107

$2.19

16

NUT This part replaces 08310-11108.

08310-00107

$2.19

17

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

18

CHAIN CASE

61310-43500

Unavailable

19

BOLT This part replaces 01107-06108.

01500-06107

$2.06

20

WASHER This part replaces 08322-21067.

08322-01067

$2.13

21

BOLT This part replaces 01107-06166.

01500-0616A

$1.78

22

WASHER This part replaces 08322-21067.

08322-01067

$2.13
