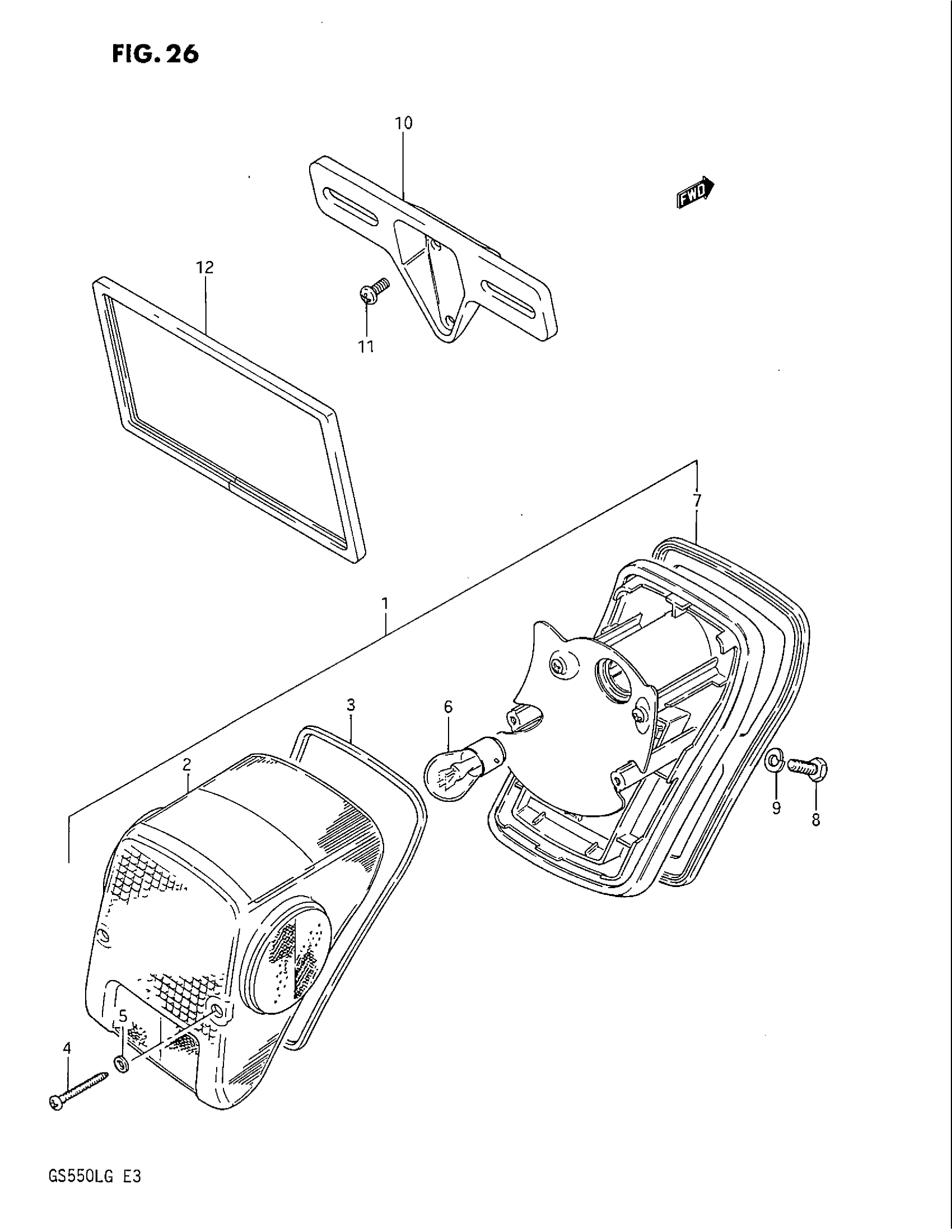

Suzuki GS550L (1986) REAR COMBINATION LAMP Diagram

#

Description

Price

1

LAMP ASSY, REAR COMBINATION | Includes Item(s) 2 - 7

35710-43530

Unavailable

2

LENS

35712-43530

Unavailable

3

GASKET

35713-43510

Unavailable

4

SCREW This part replaces 03211-04308.

03211-04306

$1.80

5

GASKET

35627-43010

$2.29

6

BULB (12V,23/8W)

09471-12084

Unavailable

7

CUSHION

35733-43510

Unavailable

8

BOLT, GEAR SHIFT ARM This part replaces 01107-06256.

01500-0625A

$1.77

9

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.83

10

BRACKET, LICENCE PLATE

35927-43511

Unavailable

11

SCREW This part replaces 02112-06164.

02112-0616A

$1.43

12

PROTECTOR, LICENSE PLATE

35940-43500

Unavailable
