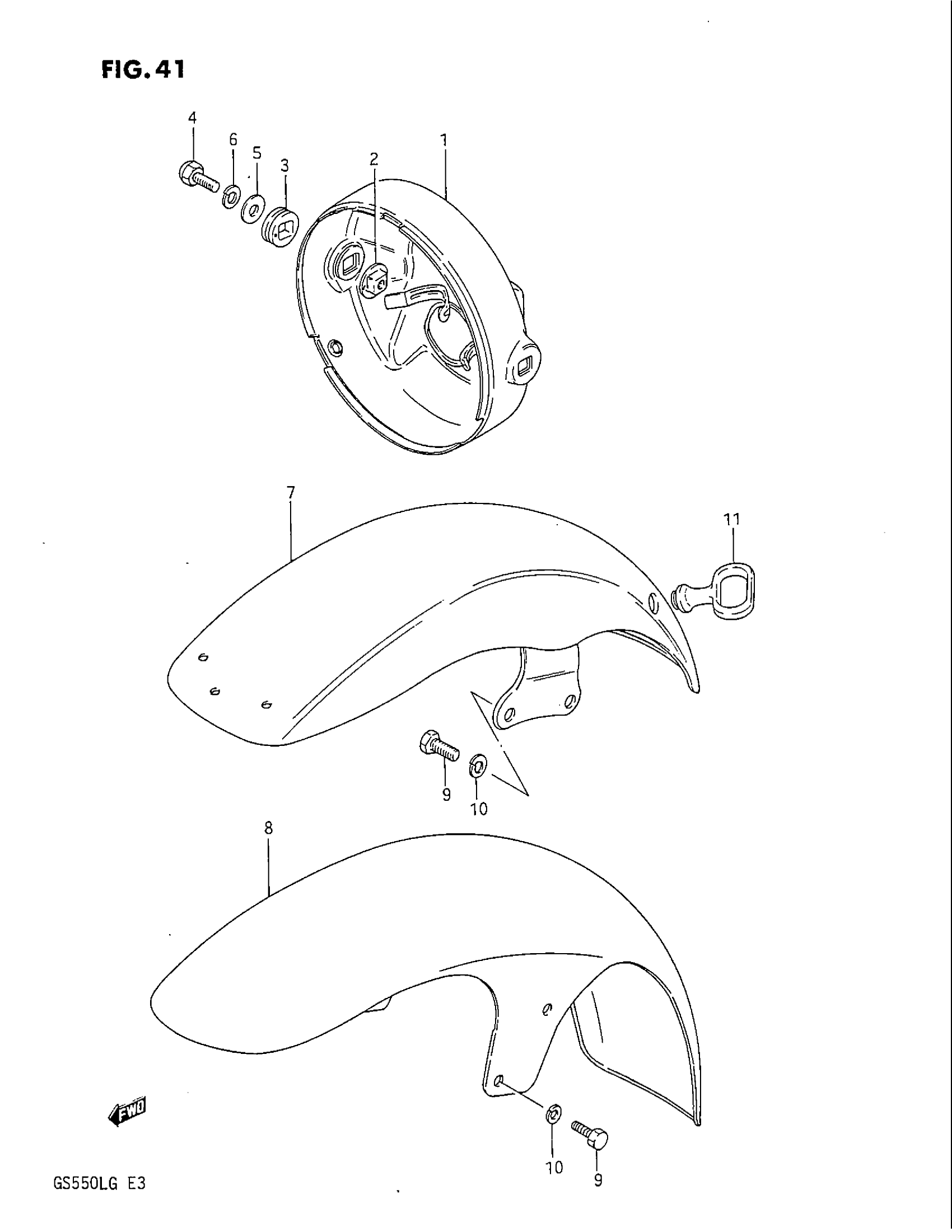

Suzuki GS550L (1986) HEADLAMP HOUSING - FRONT FENDER Diagram

#

Description
Price

1

HOUSING, HEADLAMP | Includes Item(s) 2 - 3 This part replaces 51800-15500.

51800-15510

Unavailable

2

SPACER,HEADLAMP This part replaces 51821-36200.

51821-36210

$6.07

3

CUSHION,HEADLAM This part replaces 51827-27302.

51827-27303

$3.66

4

BOLT

01204-08207

$2.30

5

WASHER This part replaces 08322-11088.

08322-01087

$2.13

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 53110-43500-019.

53110-43500-13L

Unavailable

7

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 53110-43500-22U.

53110-43500-13L

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 53110-38A20-019.

53110-38A20-13L

Unavailable

8

NO DESCRIPTION AVAILABLE | MODEL G This part replaces 53110-38A20-20F.

53110-38A20-13L

Unavailable

9

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
