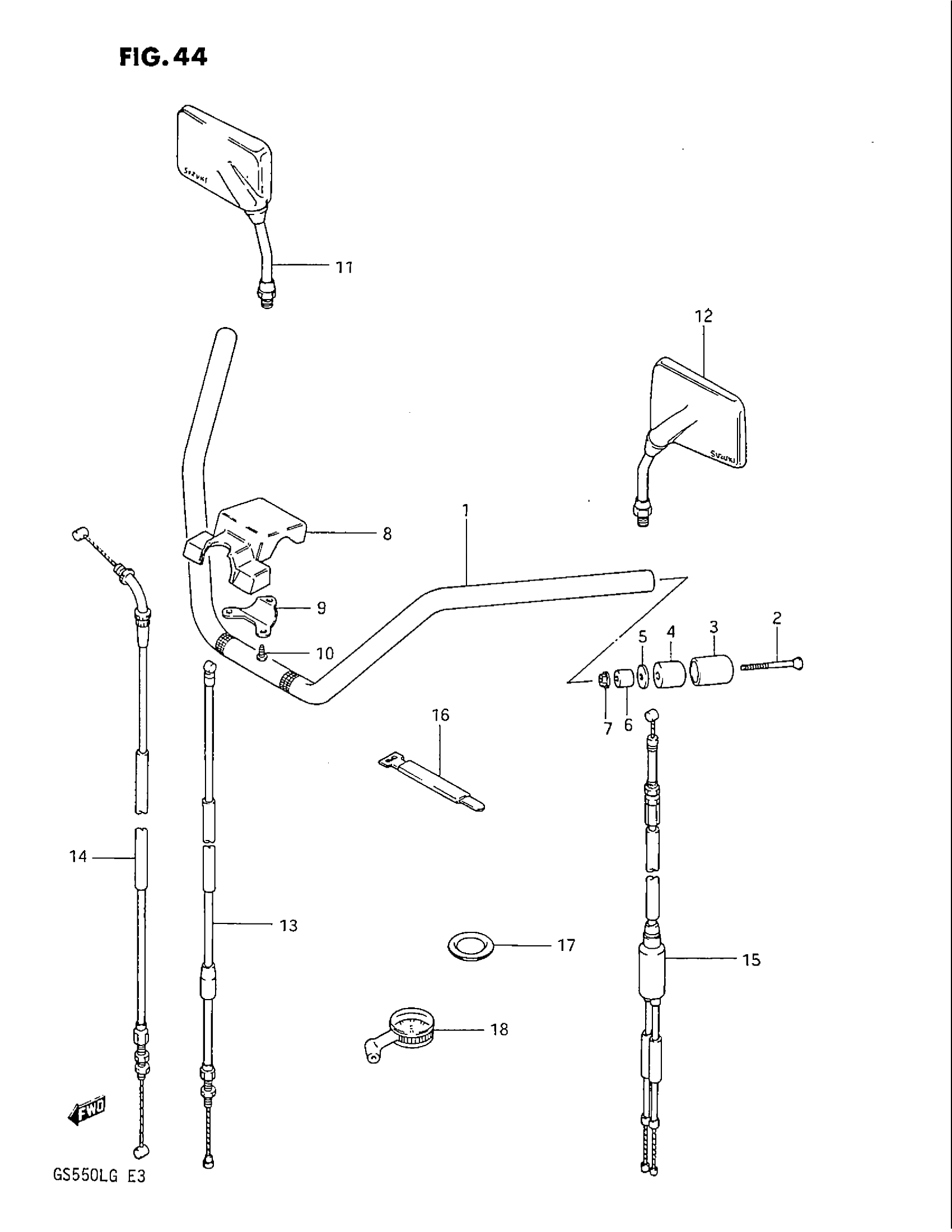

Suzuki GS550L (1986) HANDLEBAR Diagram

#

Description
Price

1

HANDLEBAR

56111-43520

Unavailable

2

SCREW 6X65 This part replaces 02132-06657.

02122-06657

$2.39

3

CAP This part replaces 56274-49400.

56274-12C00

Unavailable

4

BALANCER

56271-49400

Unavailable

5

SPACER This part replaces 56275-34400.

56275-34401

$4.02

6

EXPANDER

56272-44500

$4.42

7

NUT

09159-06024

$2.11

8

COVER

56171-43510

Unavailable

9

BRACKET

56175-49100

Unavailable

10

SCREW This part replaces 03211-04106.

03211-0410A

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 56500-43551.

56500-47102

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 56600-43500.

56600-43501

Unavailable

13

CABLE, CLUTCH

58200-43510

Unavailable

14

CABLE ASSY, THROTTLE

58300-43510

Unavailable

15

NO DESCRIPTION AVAILABLE This part replaces 58410-43510.

58410-43X04

Unavailable

16

CLAMP(L:250) This part replaces 09407-25301.

09407-25302

Unavailable

17

GROMMET, CABLE

09308-30001

Unavailable

18

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
