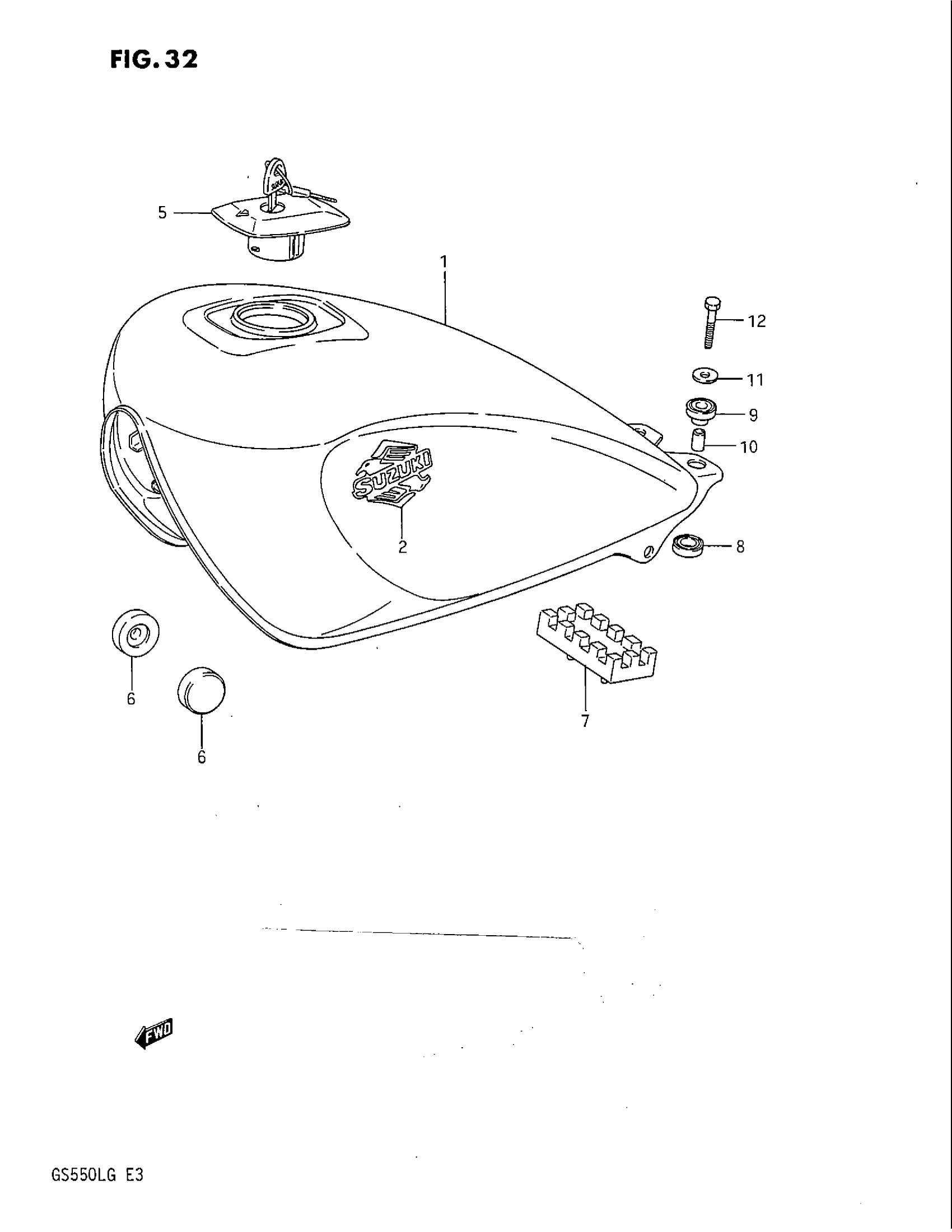

Suzuki GS550L (1986) FUEL TANK Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL F This part replaces 44100-43520-22U.

44110-43500-13L

Unavailable

1

TANK, FUEL (BLACK) | MODEL F

44100-43520-019

Unavailable

1

TANK ASSY, FUEL (BLACK) | GS550LGOTHER THAN CALIFORNIA

44100-43540-019

Unavailable

1

TANK ASSY, FUEL (MAROON) | GS550LGOTHER THAN CALIFORNIA

44100-43540-20F

Unavailable

1

(CA)TANK ASSY, FUEL (BLACK) | CALIFORNIA ONLY

44100-43530-019

Unavailable

1

(CA)TANK ASSY, FUEL (MAROON) | CALIFORNIA ONLY; Includes Item(s) 2 - 2

44100-43530-20F

Unavailable

2

EMBLEM (MAROON) | MODEL F,FOR 22U

68111-11900-22Z

Unavailable

2

EMBLEM (GRAY) | FOR 019

68111-11900-23A

Unavailable

2

EMBLEM (RED) | MODEL G,FOR 20F

68111-11900-22C

Unavailable

3

TANK ASSY, FUEL | GS550LCGOTHER THAN CALIFORNIA

44100-43550-85K

Unavailable

3

(CA)TANK ASSY, FUEL | GS550LCG,CALIFORNIA ONLY; Includes Item(s) 4

44100-43560-85K

Unavailable

4

TAPE SET, FUEL TANK | GS550LCG

68110-44910-8HU

Unavailable

5

CAP SET,FUEL TA | OTHER THAN CALIFORNIA This part replaces 44200-49017-KEY.

44200-49811

$144.42

5

CAP, FUEL | CALIFORNIA ONLY This part replaces 44200-14A10-KEY.

44200-14830

Unavailable

6

CUSHION | OTHER THAN CALIFORNIA This part replaces 09329-10007.

09329-10026

$2.23

6

(CA)CUSHION, FRONT | CALIFORNIA ONLY

09329-10016

$3.10

7

CUSHION, CENTER

44541-43400

Unavailable

8

CUSHION, REAR

09320-14013

$2.11

9

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

10

SPACER This part replaces 09180-06072.

09180-06271

$2.35

11

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19
