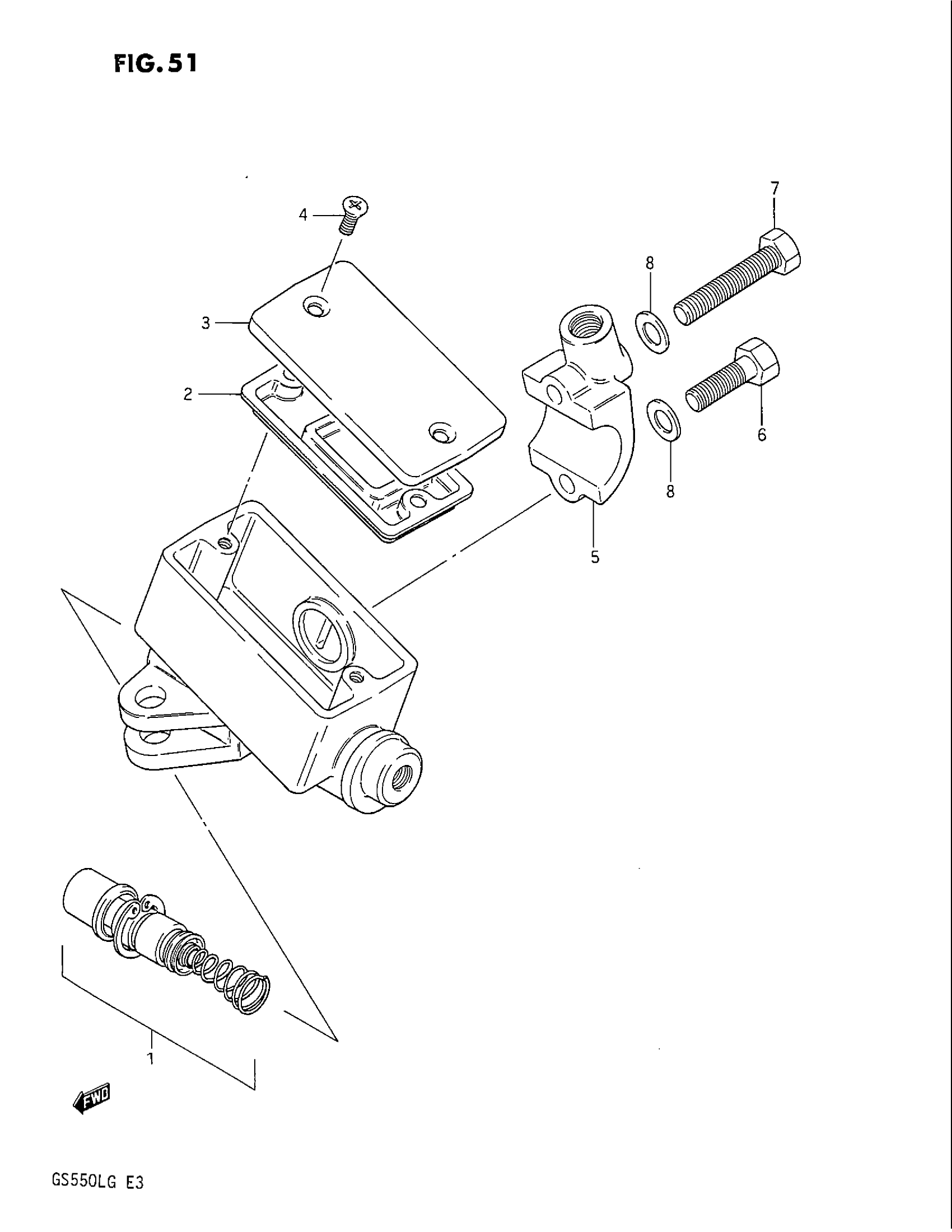

Suzuki GS550L (1986) FRONT MASTER CYLINDER Diagram

#

Description

Price

CYLINDER ASSY, FRONT MASTER | MODEL F

59600-43530

Unavailable

CYLINDER ASSY, FRONT MASTER | MODEL G; Includes Item(s) 1 - 8

59600-43540

Unavailable

1

PISTON/CUP SET This part replaces 59600-36820.

59600-04810

$41.38

2

DIAPHRAGM

59667-49460

$8.95

3

CAP This part replaces 59669-04A10.

59669-41C00

$30.66

4

SCREW, CAP

69689-49300

$1.81

5

HOLDER

59671-44300

$19.60

6

BOLT, GEAR SHIFT ARM This part replaces 01107-06255.

01500-0625A

$1.77

7

BOLT This part replaces 01107-06405.

01500-0640B

$2.64

8

.WASHER This part replaces 08322-21064.

08322-0106B

$2.24
