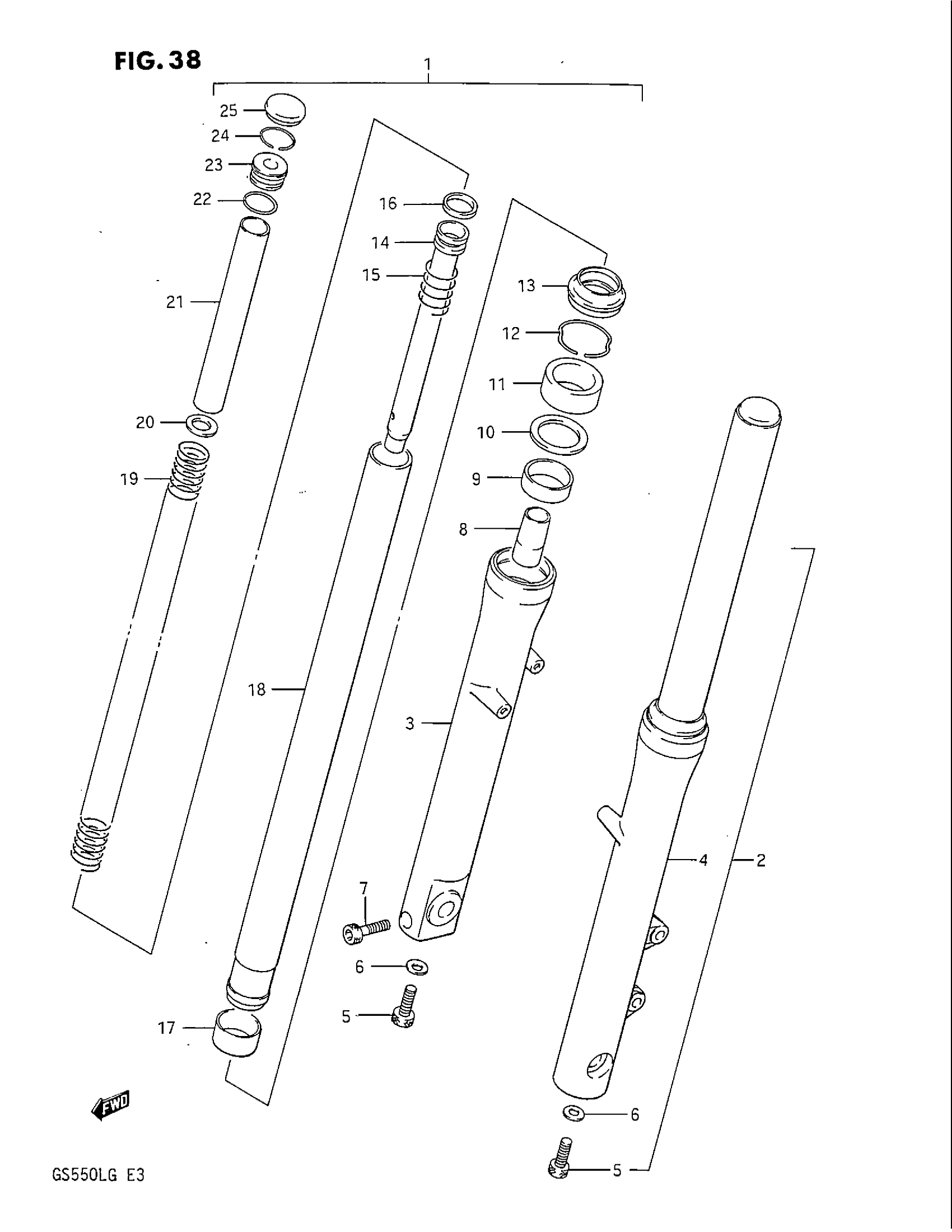

Suzuki GS550L (1986) FRONT FORK (MODEL G) Diagram

#

Description
Price

1

DAMPER ASSY, RH

51103-43560

Unavailable

2

DAMPER ASSY, LH | Includes Item(s) 3 - 25

51104-43560

Unavailable

3

TUBE, OUTER RH

51131-43560

Unavailable

4

TUBE, OUTER LH

51141-43560

Unavailable

5

BOLT

51147-48130

$4.34

6

GASKET

51148-36011

$3.56

7

BOLT This part replaces 07110-08358.

07130-08357

$3.18

8

PIECE, OIL LOCK

51195-43530

$20.32

9

BUSH, GUIDE

51152-33300

$15.04

10

SPACER, SEAL This part replaces 51168-01A30.

51168-30B00

$6.31

11

SEAL, OIL This part replaces 51153-34A00.

51153-19D10

$22.96

12

RING, STOPPER This part replaces 51156-31231.

51156-01A00

$4.34

13

SEAL, DUST This part replaces 51571-34A00.

51571-03B20

$29.82

14

CYLINDER

51146-43560

Unavailable

15

SPRING

51177-15500

Unavailable

16

RING, PISTON

51196-15500

Unavailable

17

PISTON

51121-34A00

Unavailable

18

TUBE, INNER

51110-43560

Unavailable

19

SPRING

51171-43560

Unavailable

20

GUIDE, SPRING

51192-43560

Unavailable

21

SPACER

51176-43560

Unavailable

22

O RING

51181-31030

$4.37

23

SEAT, SPRING

51175-47400

Unavailable

24

RING, STOPPER

51169-47400

$2.90

25

CAP

51189-31230

$9.37
