Description

Price

CALIPERS ASSY, FRONT | Includes Item(s) 1 - 13

59300-33410

Unavailable

1

PISTON SET This part replaces 69100-16810.

69100-27821

$77.35

2

PAD SET, BRAKE This part replaces 59130-16700.

59100-16820

Unavailable

3

SEAL,PISTON This part replaces 59107-18410.

69107-05CF0

$9.07

4

BOOT, PISTON

59108-16700

$9.40

5

SEAL, PISTON

69107-34200

$10.71

6

BOLT, HOUSING

59145-16700

$8.83

7

PIN

69141-45000

$5.17

8

.CLIP, PAD PIN

69142-45000

$4.34

9

SPRING

59143-16700

$5.80

10

COVER This part replaces 59151-16700.

59151-16701

$13.36

11

BLEEDER

59121-18410

$8.73

12

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

13

SHIM

59371-33420

$15.13

14

BOLT (10X33) This part replaces 09106-10018.

09106-10038

$3.55

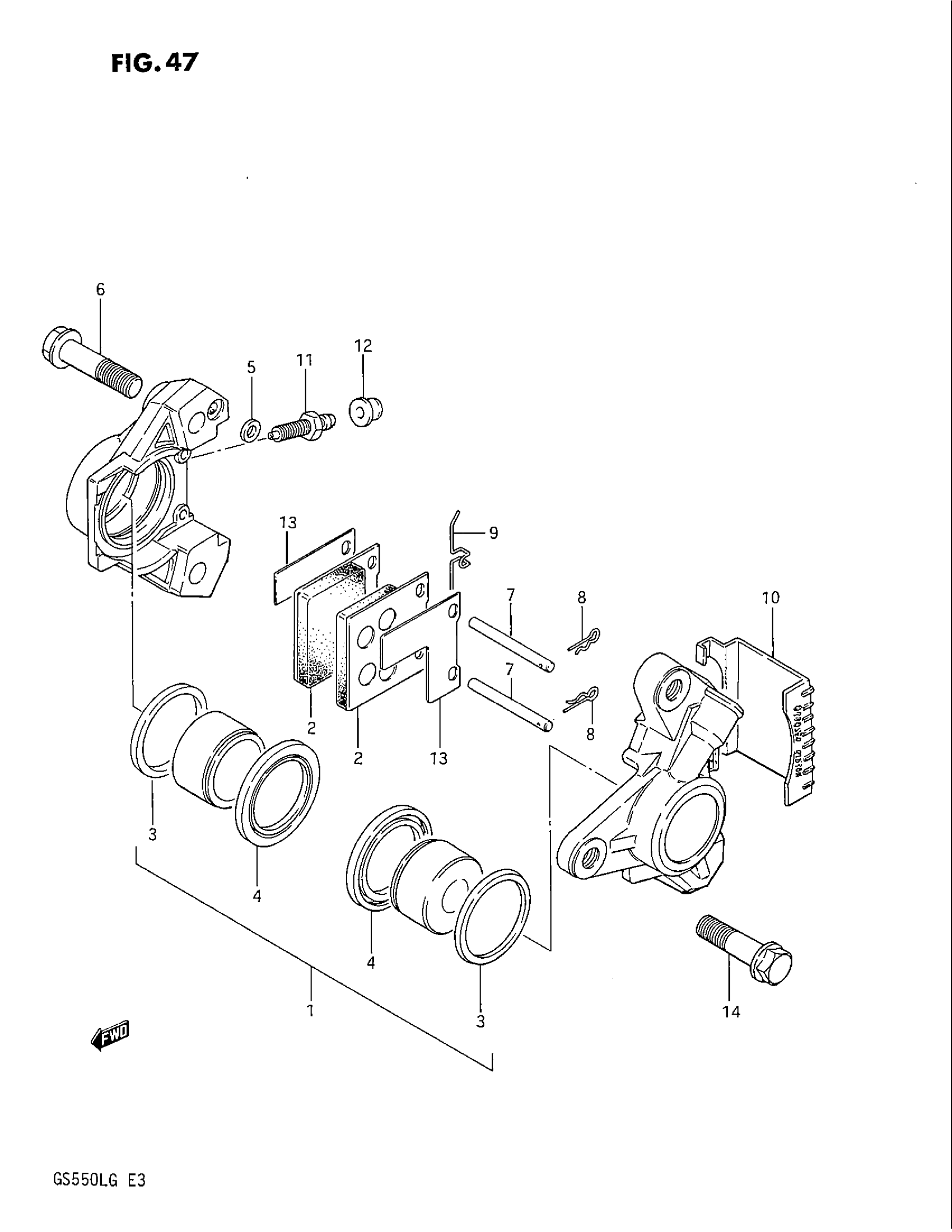

Suzuki GS550L (1986) FRONT CALIPERS (MODEL F) Diagram
