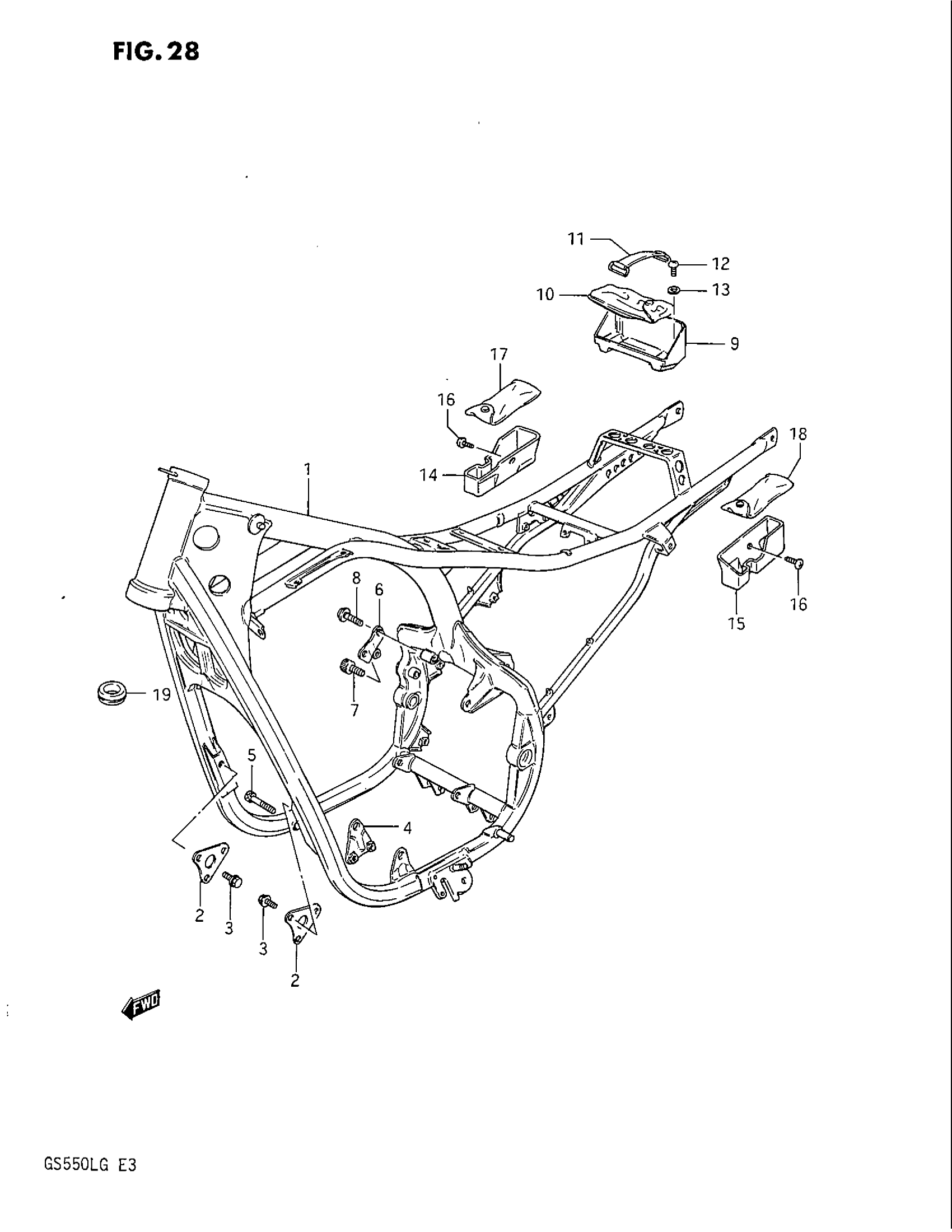

Suzuki GS550L (1986) FRAME Diagram

#

Description
Price

1

FRAME (BLACK) | MODEL F This part replaces 41100-43500-291.

41100-43503-291

Unavailable

1

FRAME (BLACK) | MODEL G

41100-43503-291

Unavailable

2

PLATE, NO.1 (BLACK)

41991-43501-291

Unavailable

3

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

4

PLAT, NO.2 RH (BLACK)

41992-43500-291

Unavailable

5

BOLT, MUFFLER SUPPORT This part replaces 07110-08455.

07130-0845B

$3.99

6

PLATE, NO.4 RH (BLACK)

41993-43400-291

Unavailable

7

BOLT, MUFFLER SUPPORT This part replaces 07110-08455.

07130-0845B

$3.99

8

BOLT (8X16) This part replaces 01517-08165.

01550-0816A

$2.32

9

HOLDER, TOOL

41551-43500

Unavailable

10

TOOL ASSY This part replaces 09800-00261.

09800-21068

Unavailable

11

BAND, TOOL

09462-00008

$4.77

12

SCREW

02142-06127

$1.49

13

WASHER This part replaces 09160-06007.

09160-06084

$1.78

14

(CA)HOLDER, TOOL RH | CALIFORNIA ONLY

47421-43500

Unavailable

15

(CA)HOLDER, TOOL LH | CALIFORNIA ONLY

47431-43500

Unavailable

16

SCREW | CALIFORNIA ONLY This part replaces 02142-06125.

02142-0612A

$1.49

17

TOOL ASSY | CALIFORNIA ONLY This part replaces 09800-00316.

09800-21068

Unavailable

18

(CA)TOOL ASSY, NO.2 | CALIFORNIA ONLY

09800-00317

Unavailable

19

GROMMET

09308-30001

Unavailable
