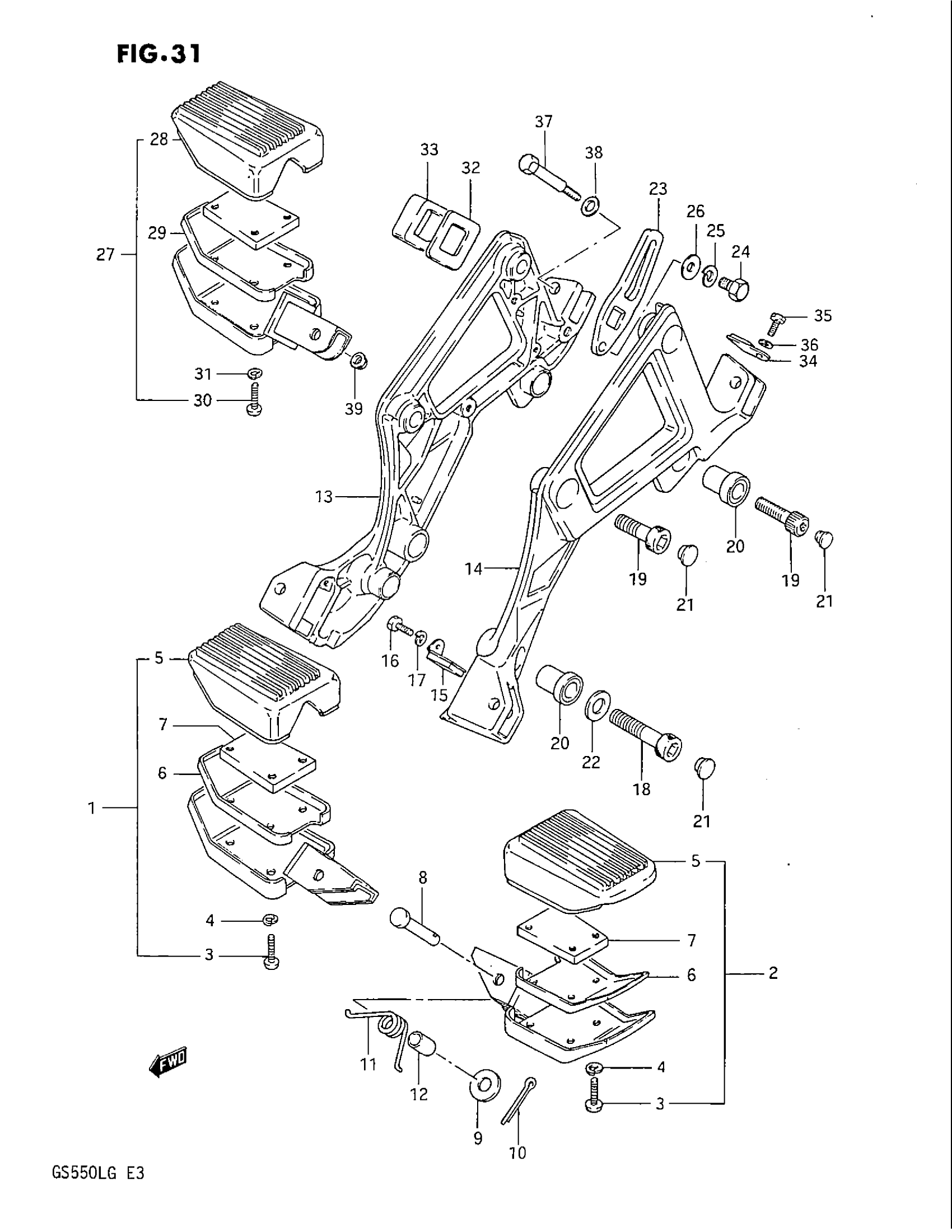

Suzuki GS550L (1986) FOOTREST Diagram

#

Description
Price

1

FOOTREST ASSY, FRONT RH

43501-43500

Unavailable

2

FOOTREST ASSY, FRONT LH | Includes Item(s) 3 - 7

43502-43500

Unavailable

3

SCREW This part replaces 02112-05128.

02112-05127

$1.97

4

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

5

RUBBER, FRONT FOOTREST

43551-43501

Unavailable

6

PLATE, FOOTREST RUBBER

43581-43500

Unavailable

7

PLATE, INNER

43585-43500

Unavailable

8

PIN

09200-08040

$3.25

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49

11

SPRING

09448-14032

Unavailable

12

SPACER

09306-08013

Unavailable

13

BRACKET, MUFFLER RH

43810-43500

Unavailable

14

BRACKET, MUFFLER LH

43820-43500

Unavailable

15

CUSHION, FRONT

43570-43500

Unavailable

16

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

17

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

18

BOLT, L This part replaces 09106-10007.

07130-1040B

$5.37

19

BOLT

09106-10017

Unavailable

20

BUSH

09319-10048

Unavailable

21

CAP

43575-34500

$1.72

22

WASHER This part replaces 08322-21108.

08322-01107

$2.15

23

FOOT GUARD, REAR

43671-09301

Unavailable

24

PLUG, DRAIN This part replaces 01107-08167.

01500-0816B

$2.50

25

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

26

WASHER This part replaces 08322-11088.

08322-01087

$2.13

27

FOOTREST ASSY, PILLION RH

43600-43502

Unavailable

27

FOOTREST ASSY, PILLION LH | Includes Item(s) 28 - 31

43700-43502

Unavailable

28

RUBBER, PILLION FOOTREST

43551-43501

Unavailable

29

PLATE, FOOTREST RUBBER

43580-43500

Unavailable

30

SCREW This part replaces 02112-05128.

02112-05127

$1.97

31

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

32

WASHER

43631-43500

Unavailable

33

CUSHION

43632-43500

Unavailable

34

CUSHION

43640-43501

Unavailable

35

BOLT This part replaces 01107-05108.

01500-0510B

$1.80

36

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

37

BOLT

09111-06035

Unavailable

38

WASHER This part replaces 08322-11088.

08322-01087

$2.13

39

NUT

08319-31067

$2.03
