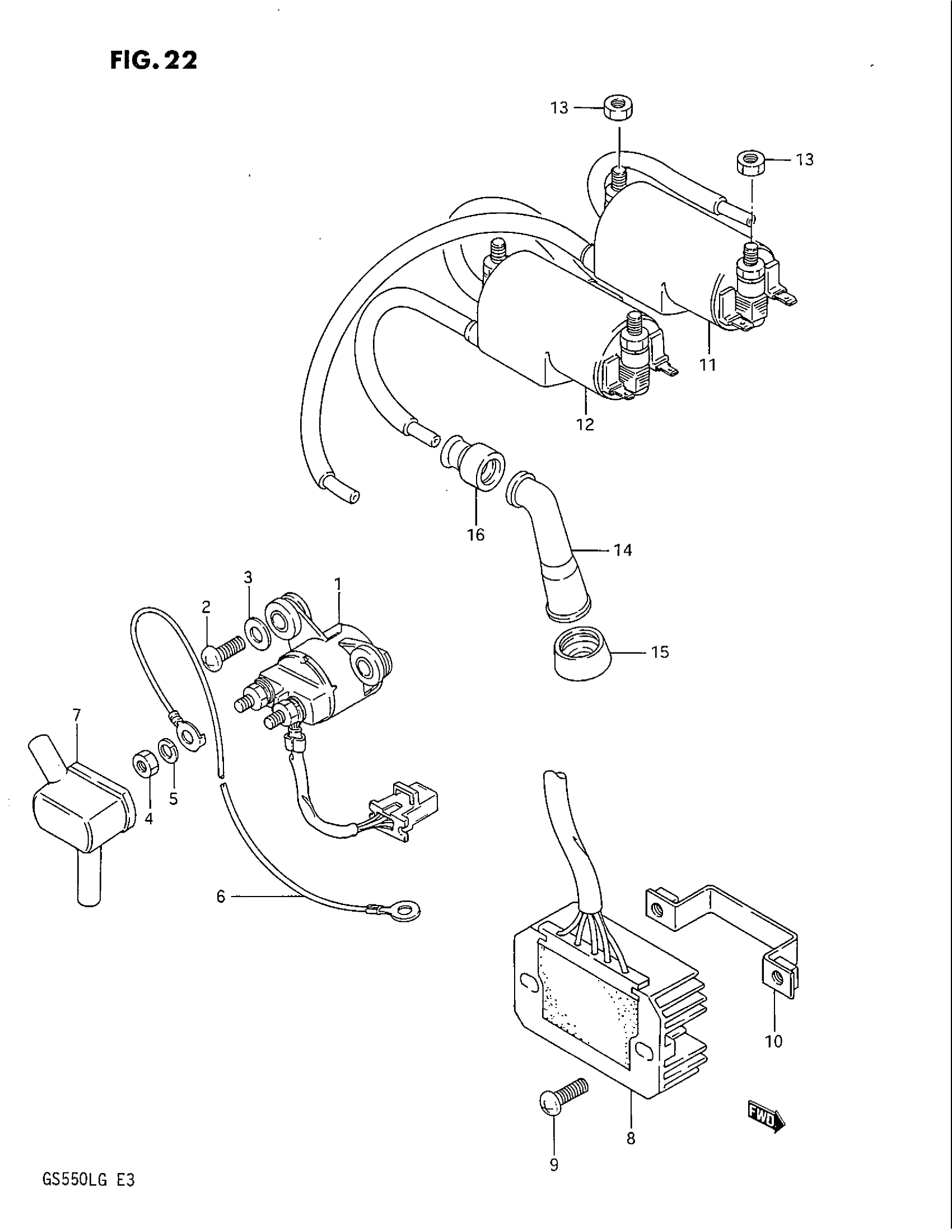

Suzuki GS550L (1986) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-43411

Unavailable

2

SCREW This part replaces 02112-06208.

02112-06207

$1.78

3

WASHER This part replaces 09160-06007.

09160-06084

$1.78

4

NUT This part replaces 08310-11066.

08310-0006A

$1.84

5

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

6

LEAD WIRE, STARTING MOTOR This part replaces 33850-43430.

33850-05301

Unavailable

7

CAP, TERMINAL

31861-43400

Unavailable

8

RECTIFIER ASSY | MODEL F This part replaces 32800-43400.

32800-43X51

Unavailable

8

RECTIFIER ASSY | MODEL G This part replaces 32800-43410.

32800-24501

Unavailable

9

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

10

PLATE, RECTIFIER | MODEL F

32831-43420

Unavailable

10

PLATE, RECTIFIER | MODEL G

32831-43430

Unavailable

11

NO DESCRIPTION AVAILABLE This part replaces 33410-43400.

33410-34521

Unavailable

12

NO DESCRIPTION AVAILABLE This part replaces 33420-43400.

33410-34521

Unavailable

13

.NUT This part replaces 08310-11067.

08310-00067

$2.13

14

CAP, SPARK PLUG

33510-45010

$24.99

15

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

16

SEAL,HIGH TENSION CORD (SIDE) This part replaces 33542-98000.

33542-38B00

$4.34
