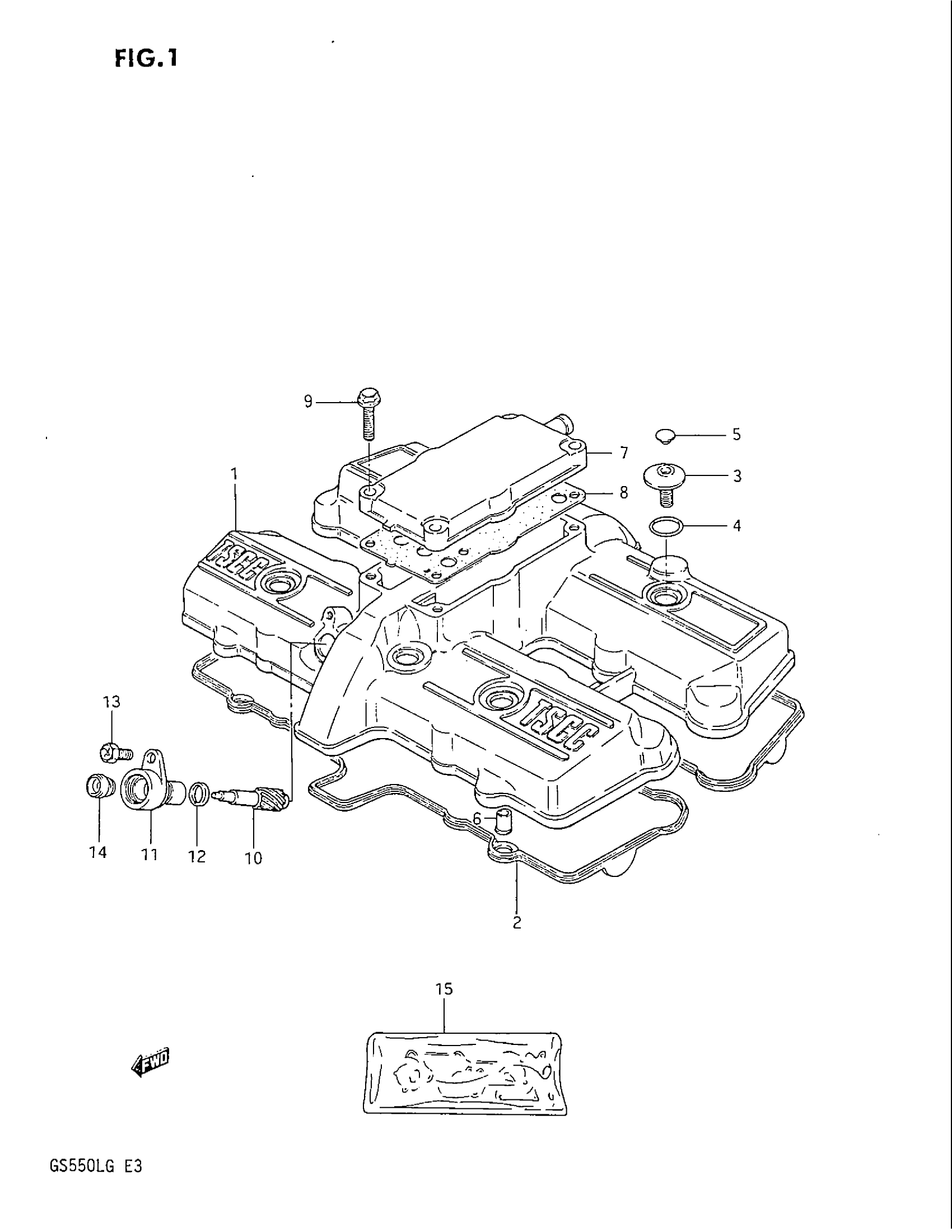

Suzuki GS550L (1986) CYLINDER HEAD COVER Diagram

#

Description
Price

1

COVER, CYLINDER HEAD This part replaces 11171-43502.

11171-43403

Unavailable

2

GASKET, HEAD COVER

11173-43402

Unavailable

3

BOLT

09106-07001

Unavailable

4

O RING

09280-15006

$2.90

5

CAP This part replaces 09250-06008.

09250-06016

$1.96

6

PIN

04221-08129

$1.99

7

COVER, BREATHER

11176-43502

Unavailable

8

GASKET,BRTHR CV This part replaces 11177-43403.

11177-43403-H17

Unavailable

9

BOLT This part replaces 01517-06258.

01550-06257

$2.30

10

GEAR, TACHOMETER DRIVEN

26431-49201

Unavailable

11

SLEEVE, GEAR

26441-49000

$30.58

12

SEAL BAND

26451-45000

$5.05

13

SCREW

09128-05101

$1.49

14

OIL SEAL

09289-05002

$8.43

15

NO DESCRIPTION AVAILABLE | OPT This part replaces 11400-43834.

11400-43837

Unavailable
