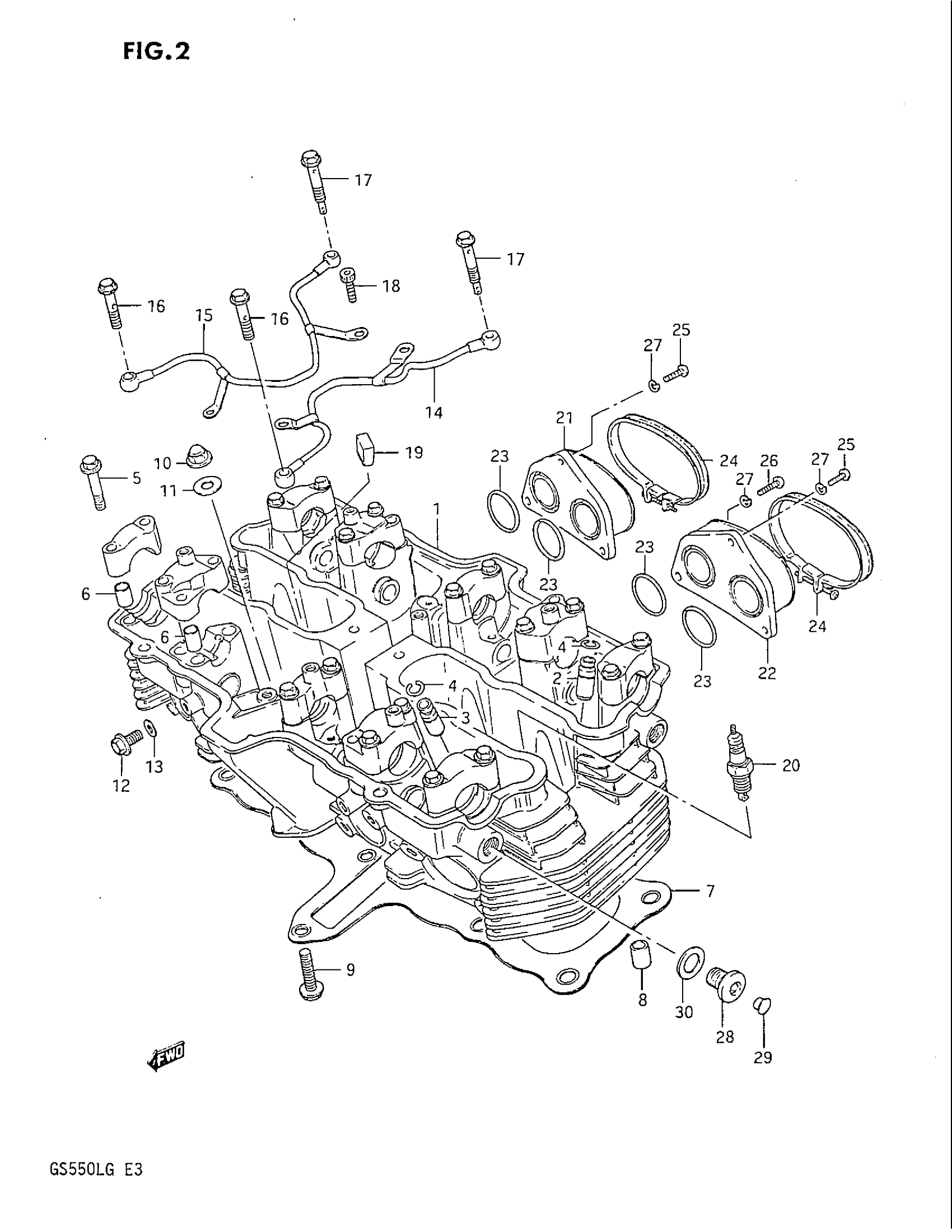

Suzuki GS550L (1986) CYLINDER HEAD Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 6 This part replaces 11100-43405.

11100-43406

Unavailable

2

GUIDE, VALVE (OS:0.3) This part replaces 11115-43470.

11116-06B70

$40.73

3

GUIDE, VALVE (OS:0.3) This part replaces 11116-43470.

11116-06B70

$40.73

4

.RING (10X85)

09381-10004

$1.50

5

BOLT (6X39)

09103-06026

$1.98

6

PIN

09206-08001

$1.78

7

GASKET, CYLINDER HEAD

11141-43403

$120.05

8

PIN

04211-11189

$1.78

9

BOLT This part replaces 01517-06254.

01550-0625A

$1.97

10

NUT This part replaces 09159-08047.

09159-08049

$4.71

11

GASKET

09168-08013

$2.92

12

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

13

GASKET

09168-06018

$1.77

14

PIPE, OIL CYLINDER LH

12961-43403

Unavailable

15

PIPE, OIL CYLINDER RH

12962-43403

Unavailable

16

UNION BOLT, EX

09360-06013

Unavailable

17

UNION BOLT, IN

12965-43400

Unavailable

18

BOLT This part replaces 07110-06168.

07130-06167

$3.16

19

PAD, RUBBER

11252-25000

$4.52

20

SPARK PLUG (NGK,DR9EA) This part replaces 09482-00184.

09482-00400

$5.24

20

SPARK PLUG (ND,X27ES-U)

09482-00185

Unavailable

21

PIPE, INTAKE RH

13110-43500

Unavailable

22

PIPE, INTAKE LH

13120-43500

$55.37

23

O RING This part replaces 09280-30004.

09280-30008

$8.82

24

CLAMP This part replaces 09402-48401.

09402-48401-XC0

Unavailable

25

SCREW This part replaces 02112-06165.

02112-0616A

$1.49

26

SCREW This part replaces 02112-06205.

02112-0620A

$1.49

27

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

28

PLUG, SHAFT This part replaces 09248-14005.

09248-14011

$2.98

29

CAP

09250-08012

$2.15

30

GASKET

09168-14004

$1.83
