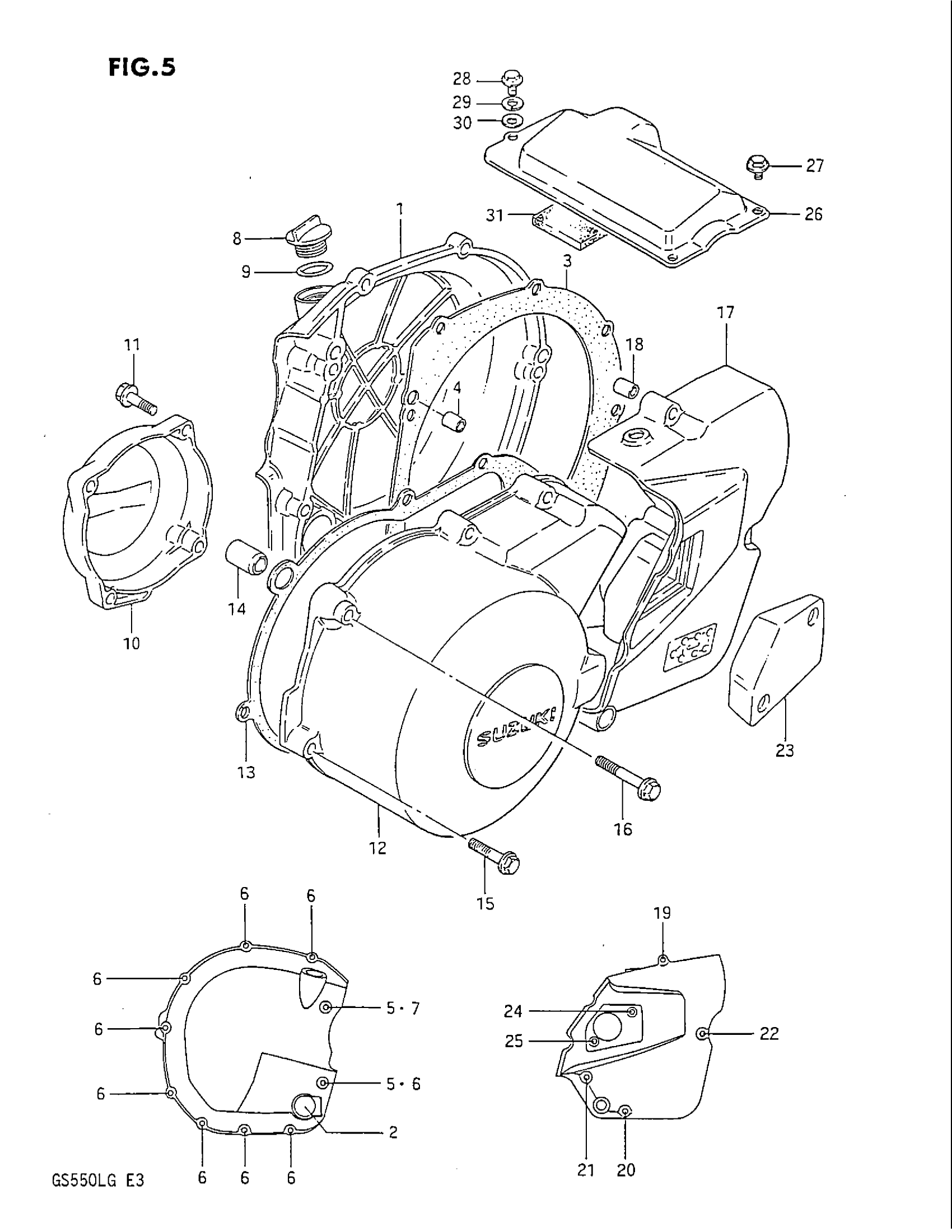

Suzuki GS550L (1986) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | Includes Item(s) 2

11340-43501

Unavailable

2

LENS, OIL LEVEL

11971-33210

$18.20

3

GASKET,CLUTCH C This part replaces 11482-43401.

11482-43401-H17

Unavailable

4

PIN

04211-09129

$1.65

5

GASKET (5.8X13X1.2) This part replaces 09168-06015.

09168-06023

$2.35

6

BOLT

01547-06257

$2.03

7

BOLT

01547-06357

$2.03

8

PLUG, ENGINE OIL FILLER

09259-20007

$7.53

9

O RING

09280-17003

$1.65

10

COVER, CONTACT BREAKER This part replaces 11381-43500.

11381-43400

Unavailable

11

BOLT

01547-06257

$2.03

12

COVER, GENERATOR This part replaces 11351-43500.

11351-43400

Unavailable

13

GASKET,MAGNETO This part replaces 11483-43400.

11483-43400-H17

Unavailable

14

PIN (11X20) This part replaces 09206-11005.

09206-11017

$6.30

15

BOLT

01547-06307

$2.03

16

BOLT

01547-06457

$2.32

17

COVER, ENGINE SPROCKET

11360-43500

Unavailable

18

PIN

04211-09129

$1.65

19

BOLT

01547-06407

$2.32

20

BOLT

01547-06507

$2.41

21

BOLT

01547-06557

$2.32

22

BOLT This part replaces 01547-06807.

01547-0680B

$3.18

23

COVER, CLUTCH RELEASE This part replaces 11387-43500.

11387-43400

Unavailable

24

SCREW This part replaces 02132-05127.

02122-05127

$1.93

25

SCREW This part replaces 02132-05207.

02122-0520A

$2.27

26

COVER, STARTER MOTOR

11382-43401

Unavailable

27

BOLT, COVER This part replaces 01547-05084.

01547-0508B

$2.97

28

BOLT This part replaces 01547-05125.

01547-0512B

$3.05

29

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

30

WASHER (5.5X16X1.2) This part replaces 09160-05031.

09160-05037

$1.49

31

DAMPER

11362-34200

Unavailable
