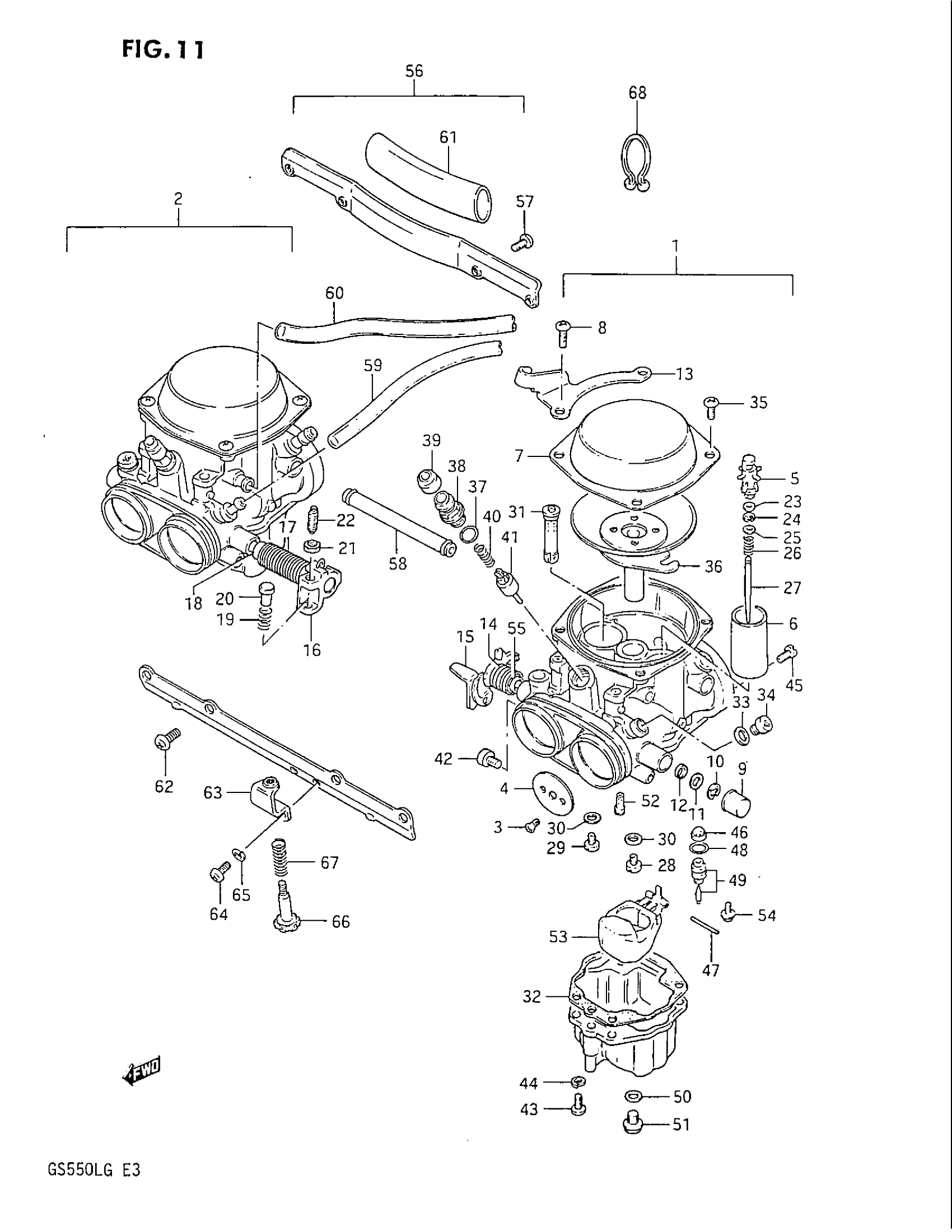

Suzuki GS550L (1986) CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY, LH | MODEL F

13201-43610

Unavailable

1

CARBURETOR ASSY, LH | MODEL G

13201-43630

Unavailable

2

CARBURETOR ASSY, RH | MODEL F

13202-43610

Unavailable

2

CARBURETOR ASSY, RH | MODEL G; Includes Item(s) 3 - 55

13202-43630

Unavailable

3

SCREW

13604-44080

$2.92

4

VALVE, THROTTLE (110)

13551-43450

Unavailable

5

HOLDER

13511-43410

$10.58

6

VALVE, PISTON | MODEL F

13510-43400

Unavailable

6

VALVE, PISTON | MODEL G

13551-43440

Unavailable

7

COVER, DIAPHRAGM

13502-43430

Unavailable

8

SCREW | LH This part replaces 02112-05125.

02112-0512A

$1.49

9

CAP This part replaces 13578-45530.

13578-47070

$4.52

10

E RING

13617-44080

$2.90

11

WASHER

13557-47070

$3.59

12

SEAL This part replaces 13651-51010.

13651-51011

$2.20

13

BRACKET | LH

13621-43420

Unavailable

14

SPRING | LH

13573-43410

Unavailable

15

SHAFT ASSY, THROTTLE | LH

13550-43410

Unavailable

16

SHAFT ASSY, THROTTLE | RH

13550-43400

Unavailable

17

SPRING | RH

13573-43400

Unavailable

18

PIPE | RH

13574-43410

Unavailable

19

SPRING | RH

13268-44010

Unavailable

20

PIN | RH

13575-47070

Unavailable

21

NUT | RH

13607-47070

$3.13

22

SCREW | RH

13605-47080

$7.77

23

RING

13387-47010

$7.22

24

CLIP, NEEDLE This part replaces 13415-47070.

13394-10010

$5.45

25

WASHER

13382-44030

$3.71

26

SPRING

13388-44030

$8.12

27

NEEDLE, JET (5C64)

13383-43410

Unavailable

28

JET, MAIN (90) | LH,RH

09491-90007

$11.83

28

JET, MAIN (92.5) | OPT,LH,RH

09491-92004

$9.69

29

JET, MAIN (97.5) | ML,MR

09491-97003

$11.38

29

.JET (#102.5) | OPT,ML,MR

09491-20012

$11.38

30

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

31

JET, NEEDLE (P-3)

09494-00452

Unavailable

32

GASKET,FLOAT CH This part replaces 13251-43410.

13251-05C00

$9.46

33

WASHER

13531-43410

Unavailable

34

SCREW

13605-43410

Unavailable

35

SCREW, THROTTLE | LH:2,RH:4 This part replaces 02112-05105.

02112-0510A

$1.49

36

DIAPHRAGM ASSY

13500-43410

Unavailable

37

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

38

HOLDER, GUIDE

13418-43410

$7.22

39

.CAP This part replaces 13681-04010.

13681-04011

$4.93

40

SPRING, STARTER VALVE This part replaces 13417-43410.

13417-01010

$4.62

41

PLUNGER

13411-43410

Unavailable

42

SCREW | LH

13605-73000

$11.95

43

SCREW This part replaces 02112-04165.

02112-0416A

$1.49

44

LOCK WASHER This part replaces 08321-21045.

08321-0104A

$1.84

45

JET, PILOT AIR (150)

09492-30004

Unavailable

46

FILTER This part replaces 13376-65010.

13376-19F00

$10.28

47

PIN

13254-20010

$4.28

48

O RING This part replaces 13374-44080.

13374-35C00

$5.99

49

VALVE ASSY, NEEDLE This part replaces 13370-43410.

13370-48B00

$81.22

50

GASKET

13246-44080

$2.80

51

SCREW, DRAIN This part replaces 13247-43410.

13247-44080

$7.97

52

JET, PILOT (37.5)

09492-35010

$9.32

53

FLOAT

13250-43410

Unavailable

54

SCREW

13602-43410

$2.92

55

RING | LH

13574-43400

Unavailable

56

FLANGE ASSY | Includes Item(s) 57 - 67

13210-43420

Unavailable

57

SCREW This part replaces 02112-05125.

02112-0512A

$1.49

58

PIPE

13685-43410

Unavailable

59

HOSE(4.5X8.5X60 This part replaces 13683-45050.

09355-45001-600

$9.48

60

HOSE(7X11X600) This part replaces 13683-43410.

09352-70119-600

$10.40

61

HOSE (19X16X100)

13684-43440

Unavailable

62

SCREW This part replaces 02112-06125.

02112-0612A

$1.49

63

BRACKET

13621-43430

Unavailable

64

SCREW This part replaces 02112-05085.

02112-0508A

$1.49

65

LOCK WASHER This part replaces 08321-21055.

08321-0105A

$1.84

66

ADJUSTER, SLOW This part replaces 13267-43420.

13267-34390

Unavailable

67

SPRING This part replaces 13268-43410.

13375-14D10

$7.05

68

CLAMP

09408-00021

Unavailable
