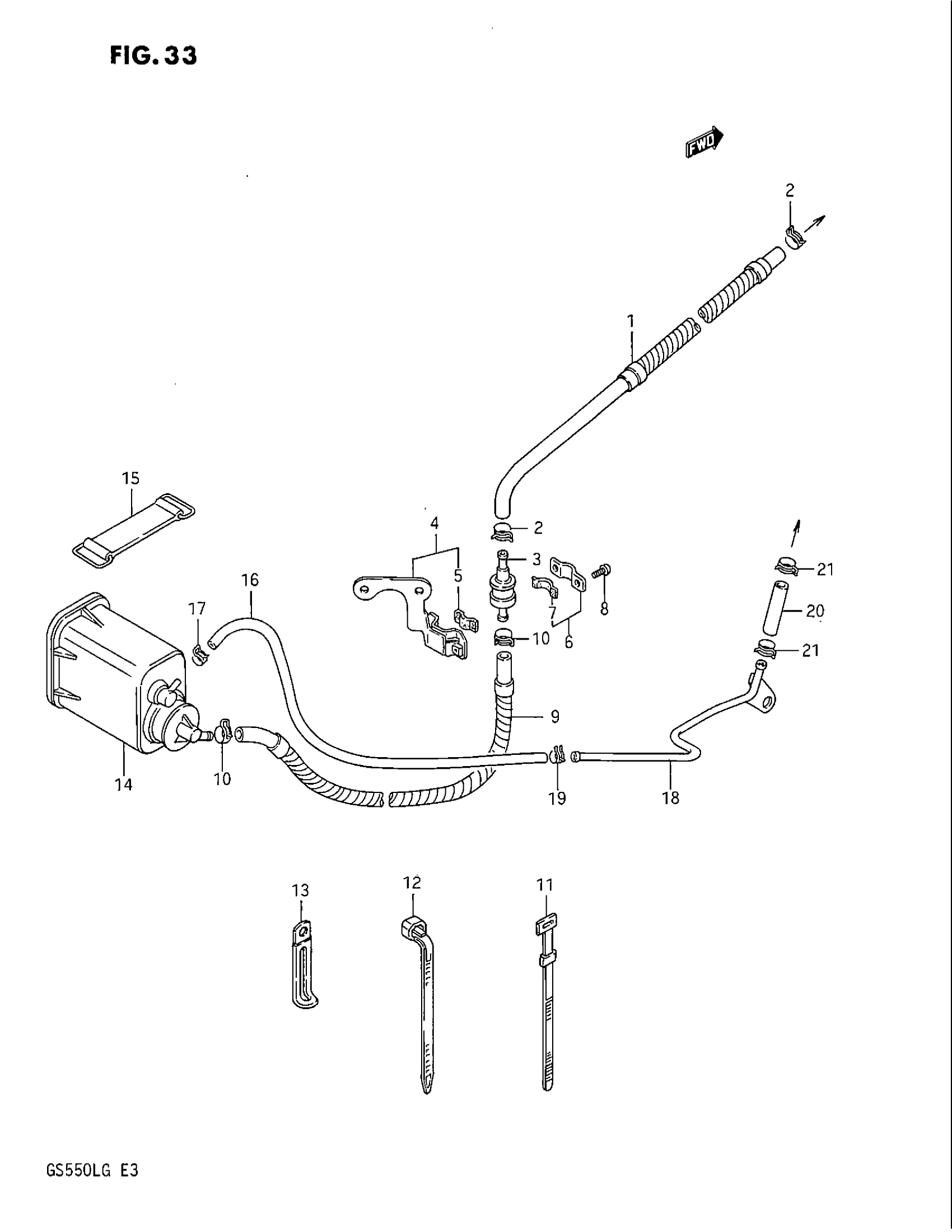

Suzuki GS550L (1986) CANISTER (MODEL G CALIFORNIA ONLY) Diagram

#

Description
Price

1

HOSE, CHARGE NO.1

44920-43500

Unavailable

2

CLIP This part replaces 09401-12406.

09401-11415

$2.23

3

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

4

PLATE, BREATHER VALVE NO.1 | Includes Item(s) 5

44890-43500

Unavailable

5

CUSHION (10X30X2)

44894-24A00

$1.72

6

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 7

44892-24A00

$4.52

7

CUSHION (10X30X2)

44894-24A00

$1.72

8

SCREW This part replaces 02142-04103.

02142-0410A

$1.49

9

HOSE, CHARGE NO.2

44930-43500

Unavailable

10

CLIP This part replaces 09401-12406.

09401-11415

$2.23

11

CLAMP, NO.1

09407-14401

$3.77

12

CLAMP, NO.2

09407-14403

$2.26

13

CLAMP This part replaces 09404-06413.

09404-06039

$1.74

14

CANISTER ASSY

17210-43500

Unavailable

15

BAND

09462-00008

$4.77

16

HOSE, NO.3 This part replaces 09343-03108.

44911-43500

Unavailable

17

CLIP, HOSE This part replaces 09401-06404.

09401-06405

$2.45

18

PIPE, PURGE

44940-43500

Unavailable

19

CLIP This part replaces 09401-08407.

09401-08411

$1.78

20

HOSE, CANISTER & PURGE This part replaces 09343-05370.

09359-54111-600

$25.80

21

CLIP This part replaces 09401-12406.

09401-11415

$2.23
