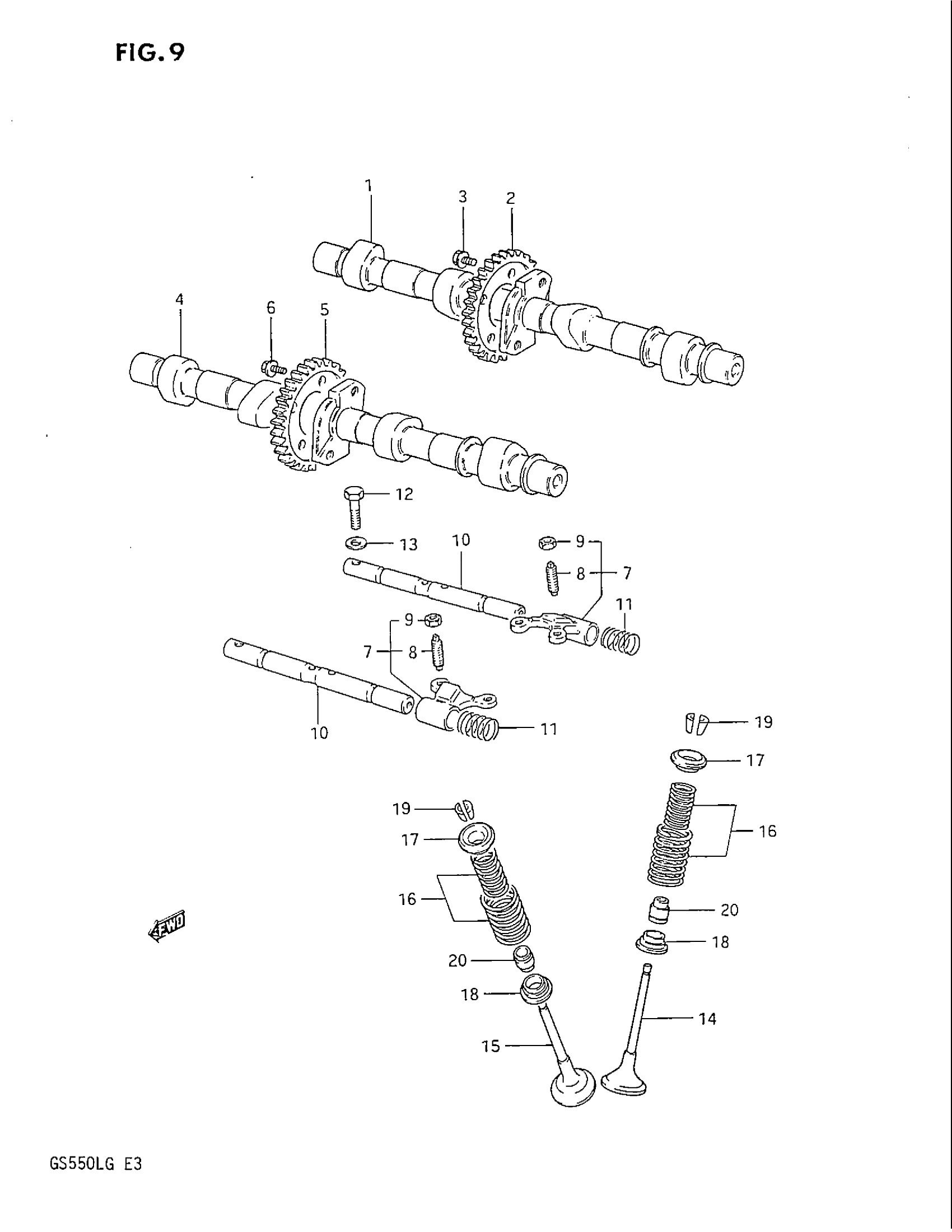

Suzuki GS550L (1986) CAM SHAFT - VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE

12711-43430

Unavailable

2

SPROCKET, INTAKE CAM SHAFT

12741-43401

Unavailable

3

BOLT

09103-07001

$2.43

4

CAM SHAFT, EXHAUST

12721-43402

Unavailable

5

SPROCKET, EXHAUST CAM SHAFT

12741-43401

Unavailable

6

BOLT

09103-07001

$2.43

7

NO DESCRIPTION AVAILABLE | Includes Item(s) 8 - 9 This part replaces 12840-11400.

12840-11401

Unavailable

8

SCREW, TAPPET ADJUSTING This part replaces 12842-49210.

12842-49201

$6.63

9

.NUT,TAPPET ADJUSTING This part replaces 12843-49210.

12843-27A00

$2.94

10

SHAFT, VALVE ROCKER ARM

12861-43401

Unavailable

11

SPRING

09440-13024

Unavailable

12

BOLT This part replaces 01107-06306.

01500-0630A

$2.19

13

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

14

VALVE, INTAKE

12911-43400

Unavailable

15

VALVE, EXHAUST

12912-43400

Unavailable

16

SPRING SET, VALVE

12920-33230

Unavailable

17

RETAINER, SPRING This part replaces 12931-43400.

12931-27A01

$8.42

18

SEAT, SPRING This part replaces 12933-33200.

12933-33201

$6.05

19

COTTER, VALVE This part replaces 12932-43402.

12932-27A00

$2.26

20

OIL SEAL

09289-05008

$6.30
