1983 Suzuki GS550L Wiring Harness Diagram

← All diagrams

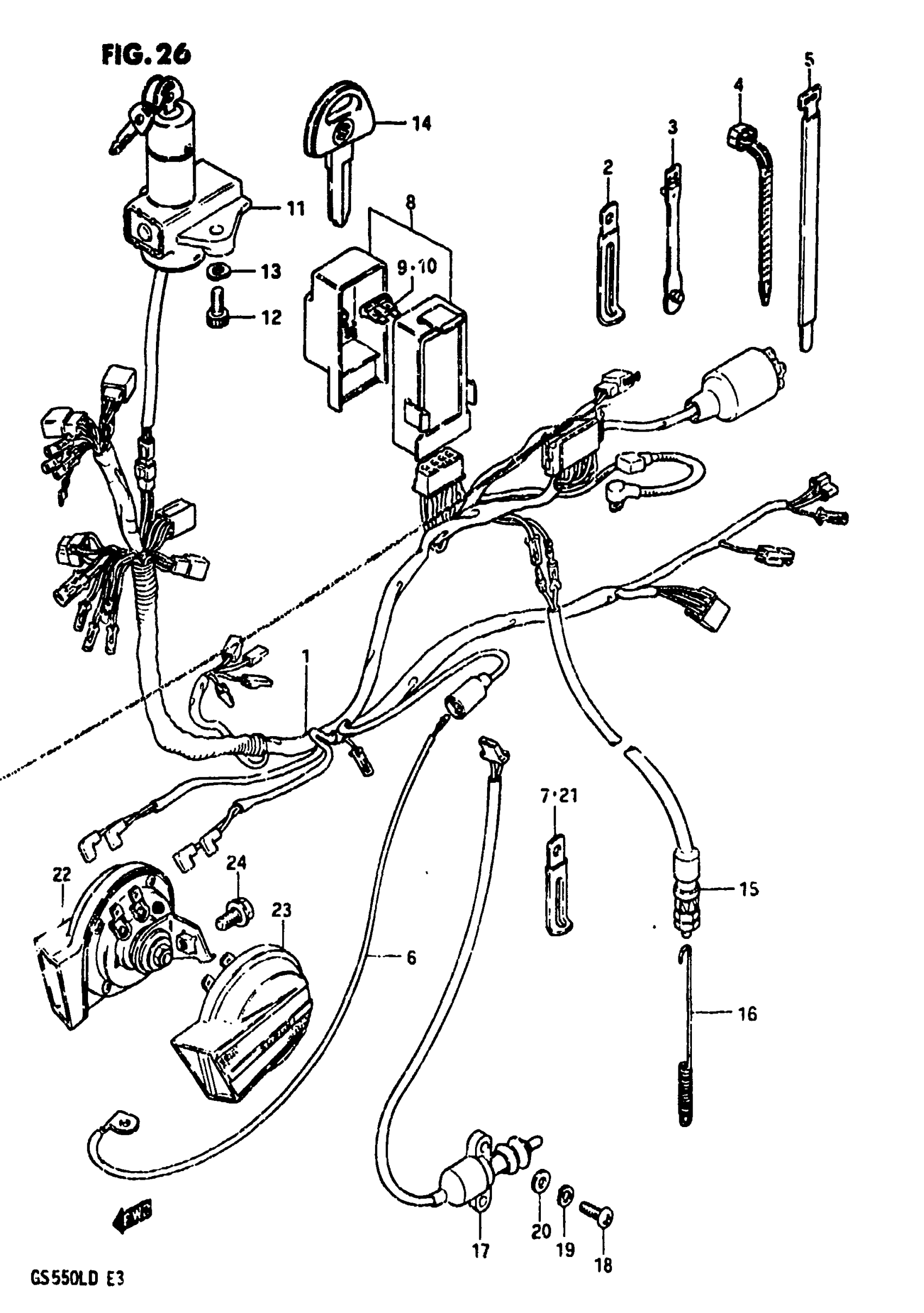

Find the part on the Wiring Harness diagram for your 1983 Suzuki GS550L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1983 Suzuki GS550L Wiring Harness Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

WIRING HARNESS

36610-43500

1
Out of stock

2

CLAMP This part replaces 09404-06412.

09404-06039

2
Out of stock

2

CLAMP(L:80) This part replaces 09404-06415.

09404-06036

1
Out of stock

3

CLAMP

09407-05403

2
Out of stock

4

CLAMP (L:125)

09407-14403

8
Out of stock

4

CLAMP (L:165)

09407-18402

1
Out of stock

4

CLAMP (L:235)

09407-25401

1
Out of stock

5

CLAMP (L:386) This part replaces 09407-35301.

09407-38401

1
Out of stock

6

LEAD WIRE, OIL PRESSURE SWITCH

36851-43400

1
Out of stock

7

CLAMP This part replaces 09404-06401.

09404-06039

1
Out of stock

8

FUSE BOX ASSY | Includes Item(s) 9 - 10

36740-43401

1
Out of stock

9

FUSE (10A)

09481-10101

4
Out of stock

10

FUSE (15A)

09481-15101

1

$2.77

In stock

11

SWITCH ASSY, IGNITION | Includes Item(s) 12 - 13

37100-49201

1
Out of stock

12

BOLT This part replaces 37152-47010.

07130-0616B

2
Out of stock

13

2

$2.28

In stock

14

KEY, BLANK | OPT

37146-47010

1
Out of stock

15

SWITCH, REAR BRAKE LAMP This part replaces 37740-04572.

37740-48071

1
Out of stock

16

SPRING This part replaces 09443-06030.

09443-06048-XC0

1
Out of stock

17

SWITCH, SIDE STAND WARNING This part replaces 37840-43500.

37840-43502

1
Out of stock

18

SCREW This part replaces 02112-05108.

02112-05107

2
Out of stock

19

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

20

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

21

CLAMP This part replaces 09404-06401.

09404-06039

1
Out of stock

22

NO DESCRIPTION AVAILABLE This part replaces 38501-43560.

38501-43561

1
Out of stock

23

NO DESCRIPTION AVAILABLE This part replaces 38502-43560.

38502-43561

1
Out of stock

24

2

$2.68

In stock
