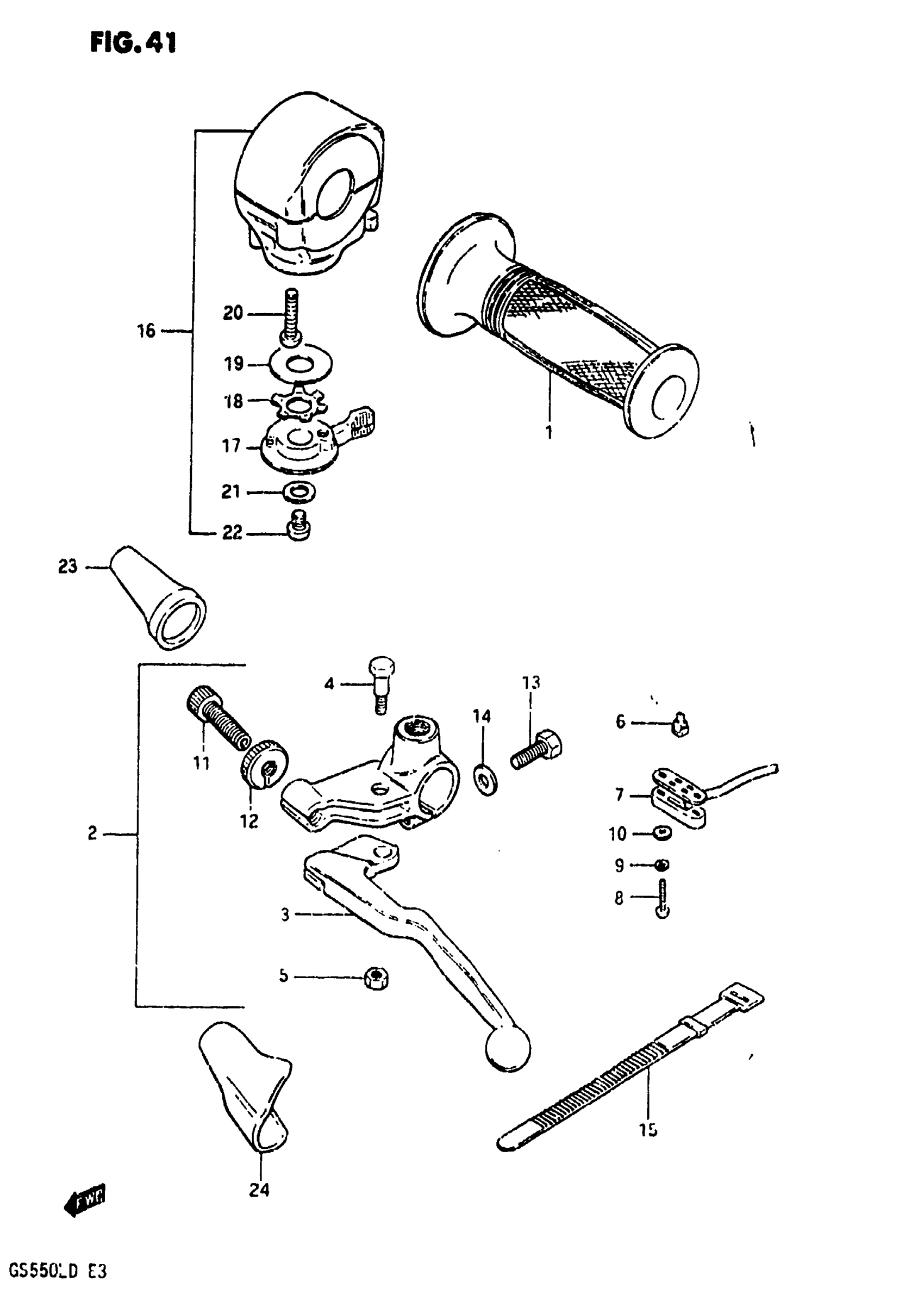

Suzuki GS550L (1983) LEFT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, LH This part replaces 57211-15500.

57211-49500

$13.14

2

LEVER ASSY,CLUT | Includes Item(s) 3 - 14 This part replaces 57500-49113.

57500-49301

Unavailable

3

LEVER, CLUTCH

57620-49111

$21.26

4

.BOLT, BRAKE LEVER PIVOT This part replaces 57431-49120.

57431-49110

$5.95

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.89

6

CONTACT

57465-18601

$3.97

7

COVER

57481-33010

$5.50

8

SCREW

57484-49110

$2.25

9

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.18

10

WASHER This part replaces 08322-21038.

08322-01037

$1.95

11

ADJUSTER, CABLE

57441-11010

$5.14

12

NUT

57442-11010

$2.80

13

BOLT This part replaces 57451-49120.

01204-06204

$2.97

14

.WASHER This part replaces 57581-49120.

08322-0106B

$2.24

15

BAND (L:120)

09407-12402

$2.80

16

SWITCH ASSY, HANDLE LH | Includes Item(s) 17 - 22

37400-33420

Unavailable

17

LEVER, STARTER

37571-45110

Unavailable

18

WASHER

37573-45110

Unavailable

19

WASHER

37573-43440

Unavailable

20

SCREW This part replaces 02112-06088.

02112-06087

$1.45

21

.WASHER This part replaces 08322-11068.

08322-0106B

$2.24

22

SCREW This part replaces 02112-05258.

02112-05257

$1.49

23

BOOT, CLUTCH CABLE This part replaces 58273-31000.

58273-31001

$2.40

24

COVER

57661-31000

$6.83
